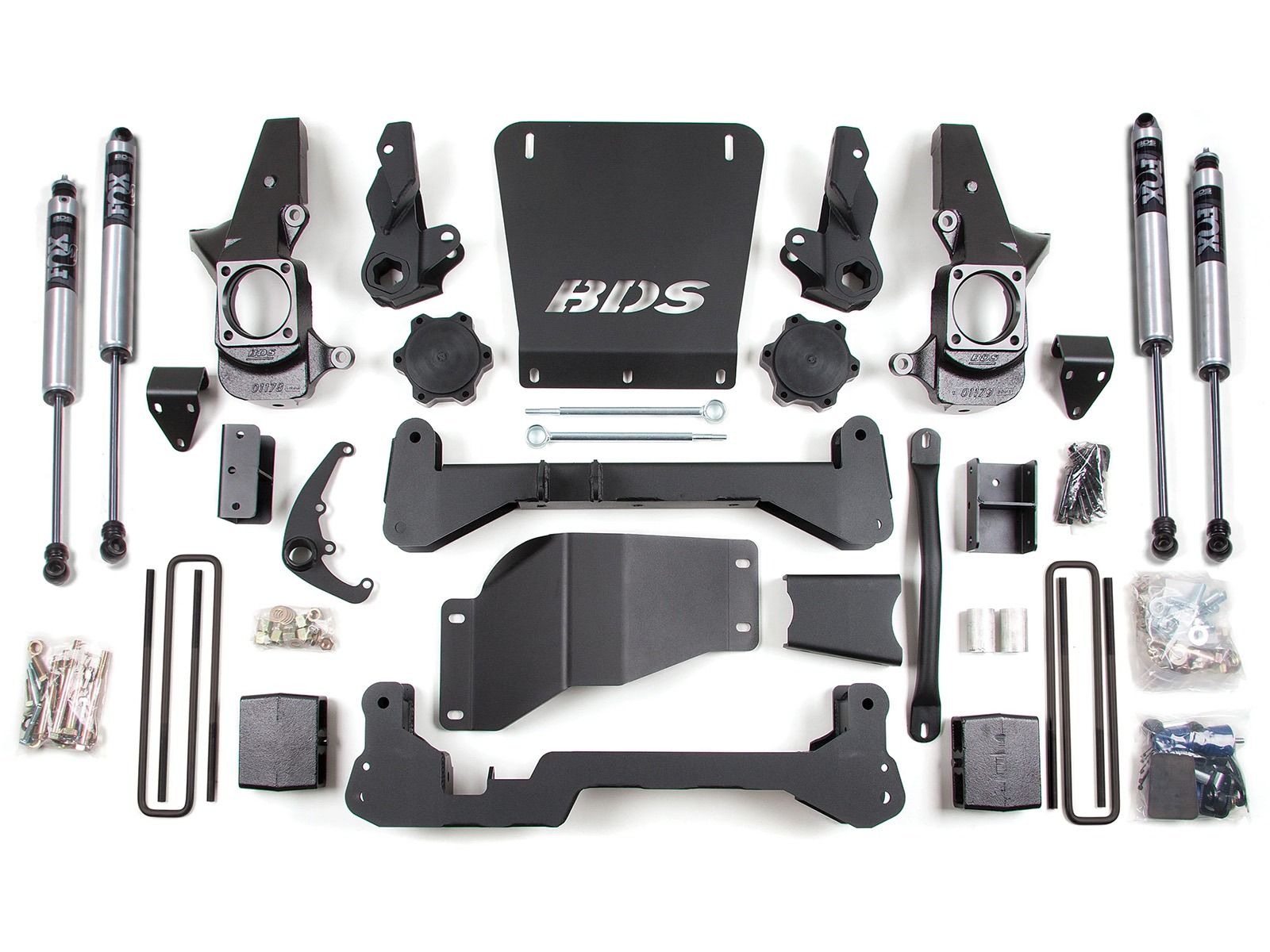

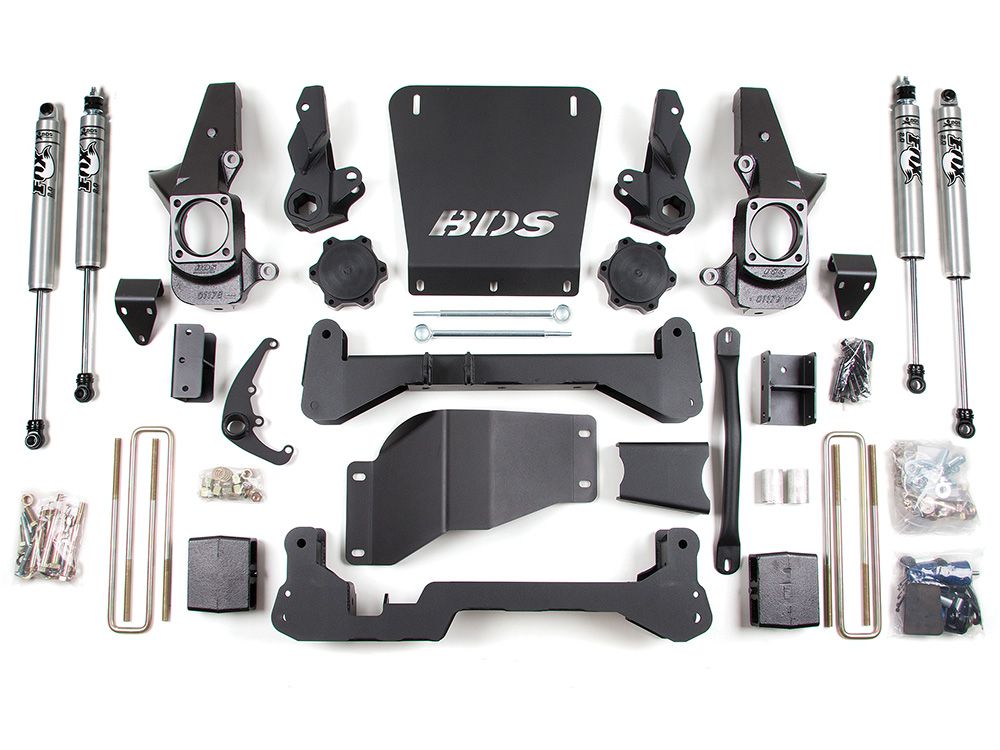

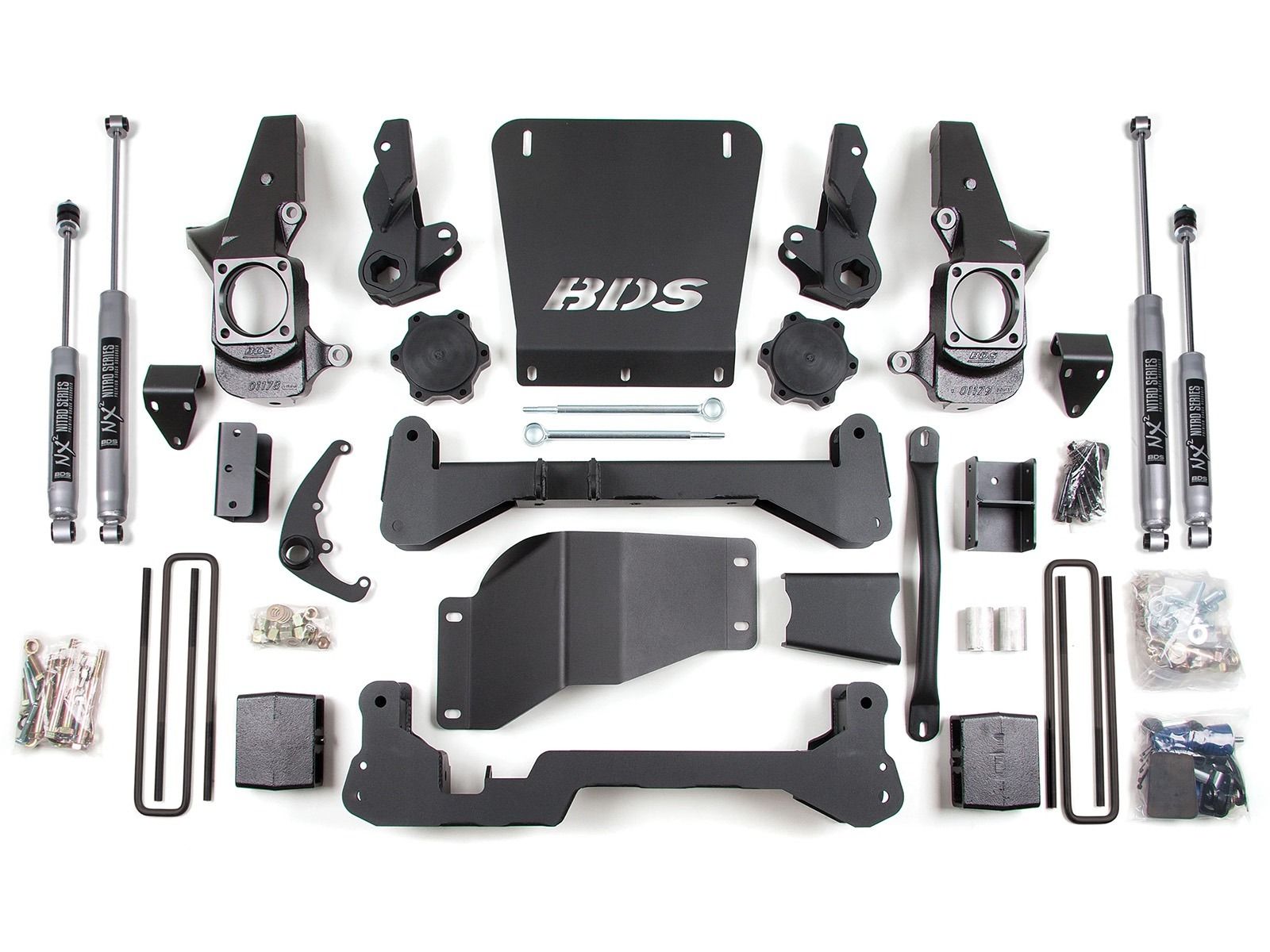

7" 2001-2006 GM Avalanche 2500 4WD High Clearance Lift Kit
This unique High Clearance suspension lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 7 inchdramatically increasing ground clearance at the front crossmembers and improving operating geometry. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember.
A front skid plate and differential skid plate come standard, to lock everything together, creating a nearly indestructible sub frame for extreme off road protection.
The rear is lifted with a flat 5 inch block for easy installation. Upgrade to Glide-Ride Leaf Springs for reduced axle wrap and more control while towing.
This highly customizable kit gives you the choices you need to build your rig your way. BDS granite or powder coat black finishes, standard or narrow track knuckle kits, gas shocks, and dual steering stabilizers are just a few of the options and upgrades available for this 7 inch Chevy/GMC suspension lift kit.
Tire & Wheel Combinations
- 35 inch x 12.50 inch w/16 x 8 and 4-1/2 inch back spacing
- 35 inch x 12.50 inch w/17 or 18 x 9 and 5.5 inch back spacing
- 37 inch x 12.50 inch w/20 x 9 and 5.75 inch back spacing
- Est. Installation: 8-10 hours
- Difficulty Level (easy 1 - 5 complicated): 4
BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warrany'.
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
|Manufacturer Part Number||189H|
|Important Notes||Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4 inch to 8 inch of lift.
20 inch wheels with 5 inch - 5.75 inch backspacing recommended to reduce trimming.
Requires frame bracket modification and differential mount modification.
Narrow track knuckle will slightly increase turning radius.
Torsion Bar tool required to load/unload the torsion bars.
Gas models require exhaust modification.
Rear box will not fit dually applications.
Some welding required.
