This system is for the redesigned front suspension for the Ram heavy duty trucks. The lift is designed around the relocation of the factory radius arm in order to correct suspension and steering geometry to work with 4 inch of lift. The radius arms are relocated with a uniquely designed bracket that mixes the ease of installation you get with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket. The new relocation bracket ties into both the factory radius arm frame mount and the side of the frame rail.
At the frame, the new mount is fastened with specially machined sleeves and threaded inserts. The threaded inserts (2) do require a minor amount of welding in order to provide the strongest possible connection. This portion of the installation can be completed without welding and then transported to a weld shop to be welded if necessary.

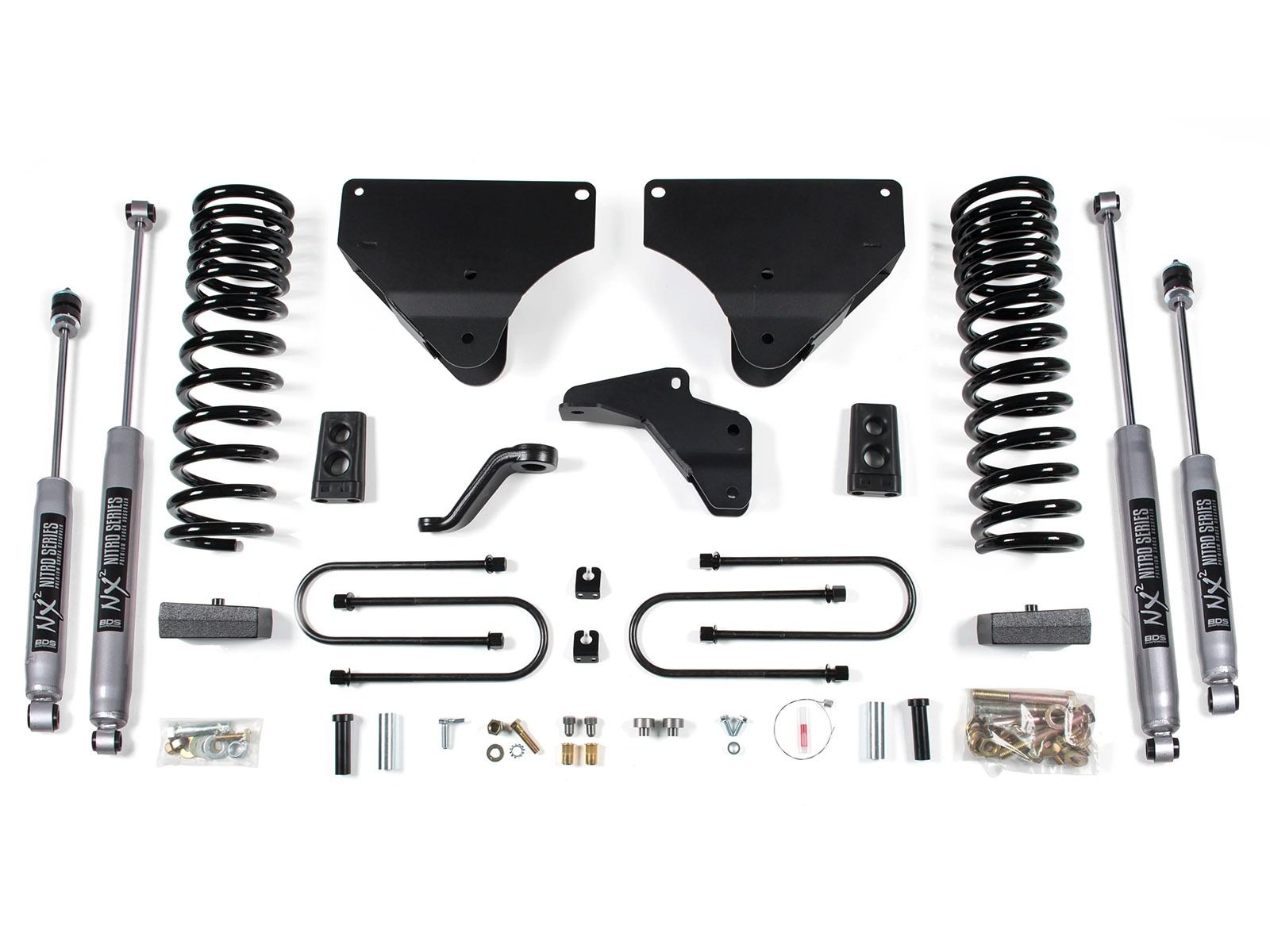

In addition to the radius arm relocation, the kit includes everything else to properly lift the Ram 3500s. Track bar relocation, dropped pitman arm and brake line relocation hardware position all the steering and brake components properly to work with the added ride height provided by the new progressive rate, full replacement coils springs.
Extra design time was spent developing coils that would ride great, handle the rigors of supporting a 1 ton heavy duty truck and work properly with the unique factory coil mounts at the frame and axle. In order to design the best possible coil springs, we found it necessary to develop side-specific coils. Since the coils are driver's and passenger's side specific, they are clearly and permanently labeled to ensure they are installed on the correct side.
The rear portion of the lift is accomplished with a traditional block and u-bolt setup to give a level stance.
Tire & Wheel Combinations
- 37 inch x 12.5 inch w/ 17 and 5.625 inch backspacing
- 35 inch x 12.5 inch w/ 4.5 inch backspacing
- Est. Installation: 5 hours
- Difficulty Level (easy 1 - 5 complicated): 3
BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
|Manufacturer Part Number||696h|
|Model||Ram 3500, Ram 1 Ton|
|Lift Height||4 inch|
