7 inch 2007-2013 Toyota Tundra IFS Lift Kit

Be the first to review this product

Availability: In stock


Quick Overview

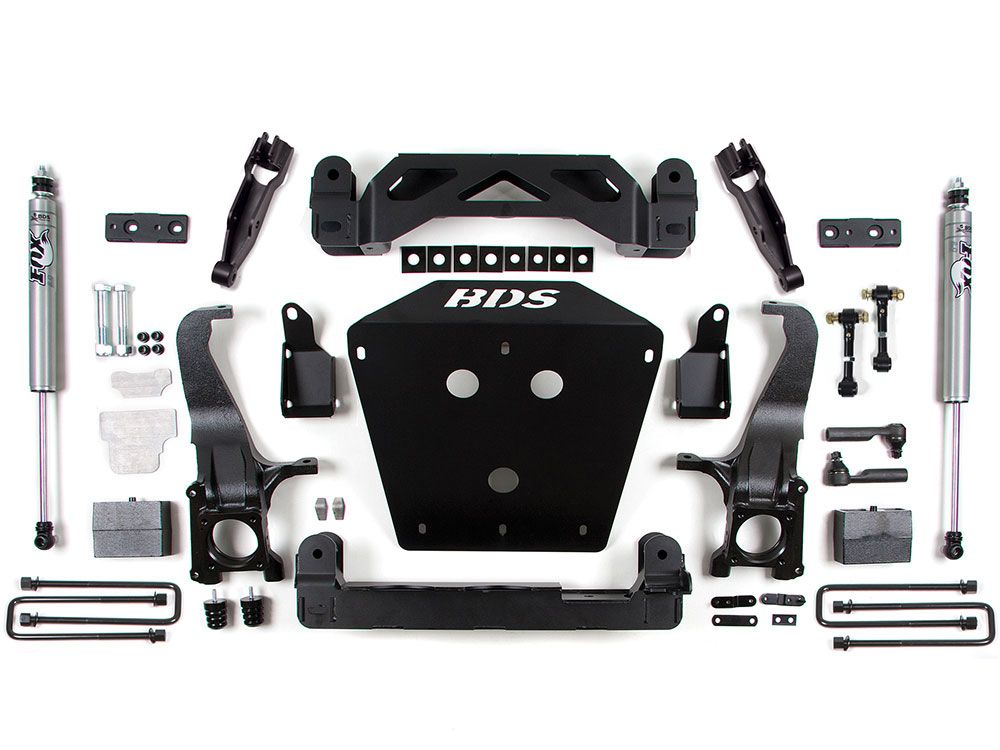

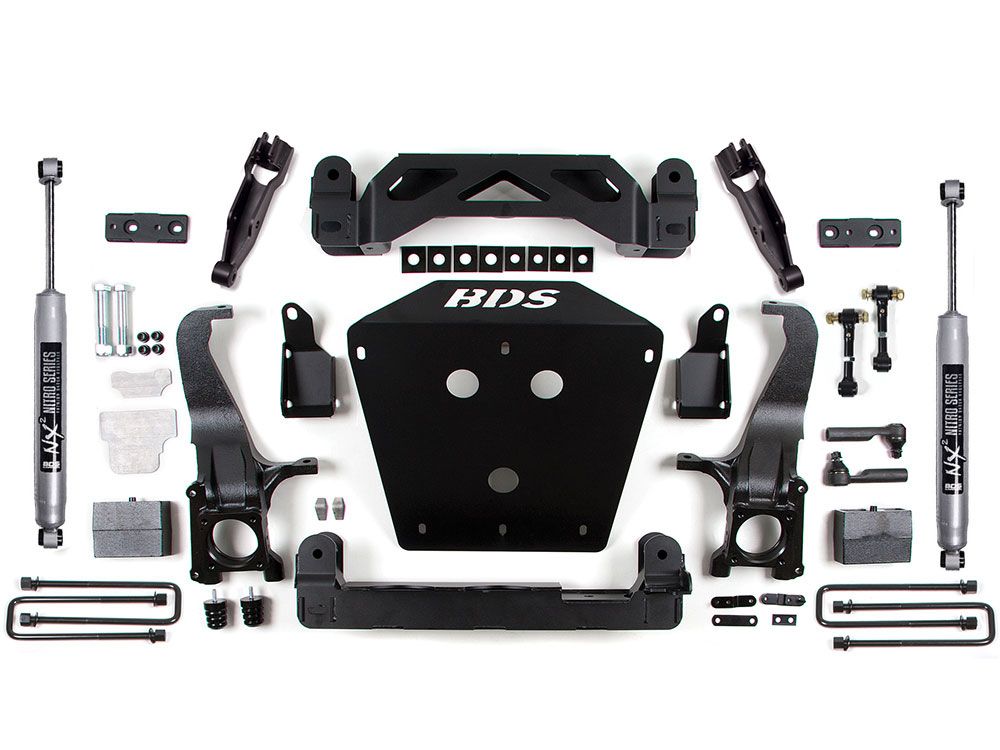

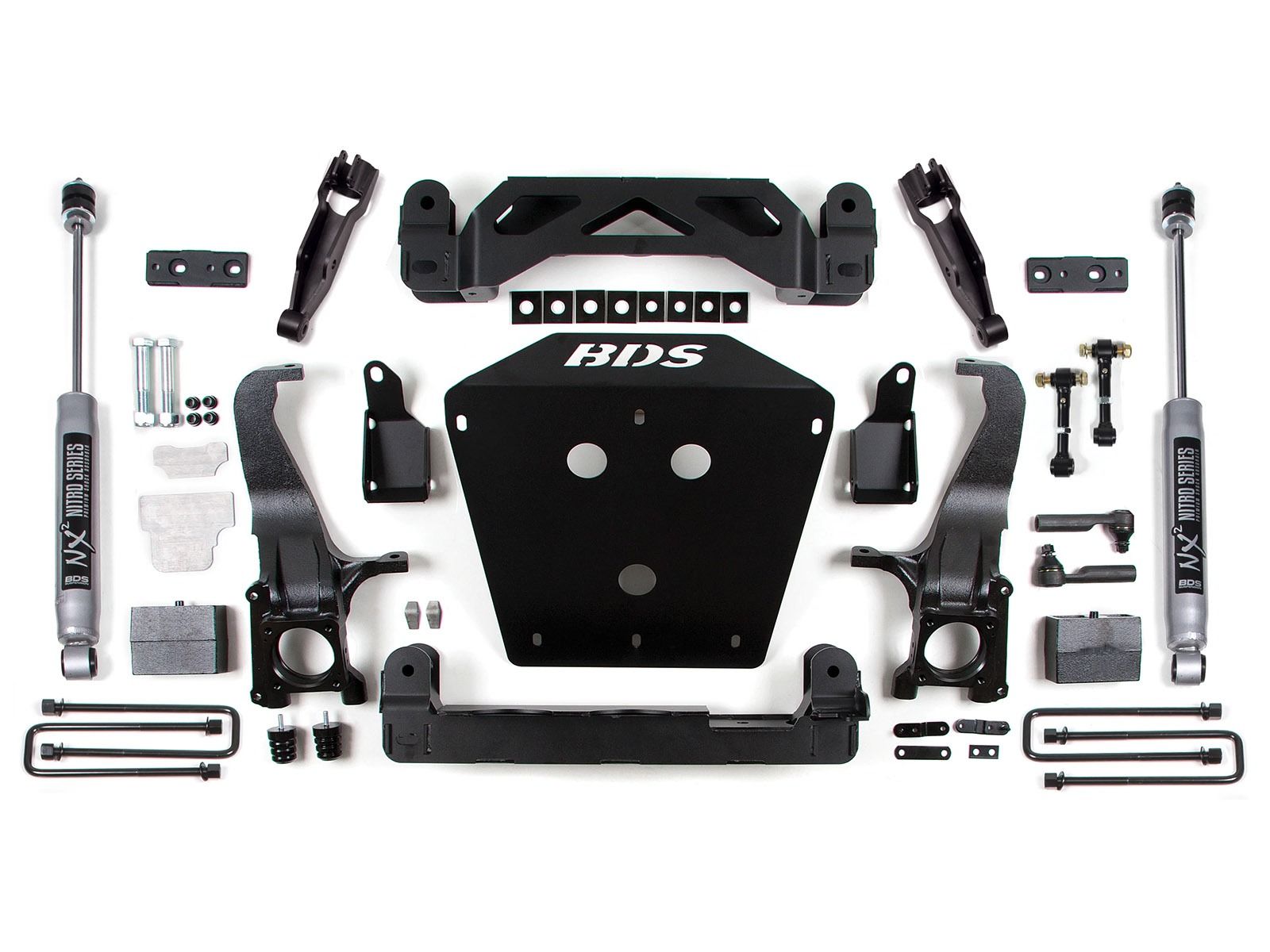

7 inch Front / 4 inch Rear IFS Suspension Lift Kit


BDS Suspension

7 inch 2007-2013 Toyota Tundra IFS Lift Kit

Double click on above image to view full picture

Zoom Out
Zoom In

More Views


This complete 7 inch IFS w/ strut mount lift kit system is not only built for daily driving, but will handle about any off road excursion you can think of. The heavy duty main crossmembers are locked together by a full belly pan that offers superior off road protection.

Included with this IFS lift kit are CNC machined steering knuckles which ensure a clean and simple install that is made easier by the lower strut mounts that don't require you to disassemble the strut. Rear 5500 series hydraulic shock absorbers are included with 9500 series gas shocks available as an upgrade for this 7 inch Toyota Tundra lift kit.

Tire & Wheel Combinations
37 x 13.50 w/17x9 and 5-1/2 inch back spacing
w/18x9 and 5-1/2 back spacing
w/20x9 and 5-1/2 - 6-1/4 inch back spacing
- Est. Installation: 8 hours
- Difficulty Level (easy 1 - 5 complicated): 3

BDS Suspension Lift Kit Warranty
All BDS Suspension Lift Kits are backed by a 'No BS Hardcore Lifetime Warranty'. Which means, if you are the original purchaser of a BDS Suspension Kit, and it breaks, they'll give you a new part. Period.

Installation Instructions

Additional Information

Item Number bds_813h
Manufacturer Part Number 813h
Manufacturer BDS Suspension
Make Toyota
Model Tundra
Year Spans 2007,2008,2009,2010,2011,2012
Lift Height 7 inch
2WD/4WD 2WD, 4WD
Notes Requires frame bracket modification and welding.
Strut compressor required for installation.
Stock 17, 18, and 20 inch wheels cannot be reinstalled.
Models with two piece rear driveline will require rear driveline modification.
Rear shackle kit can be added for 1 inch additional lif
