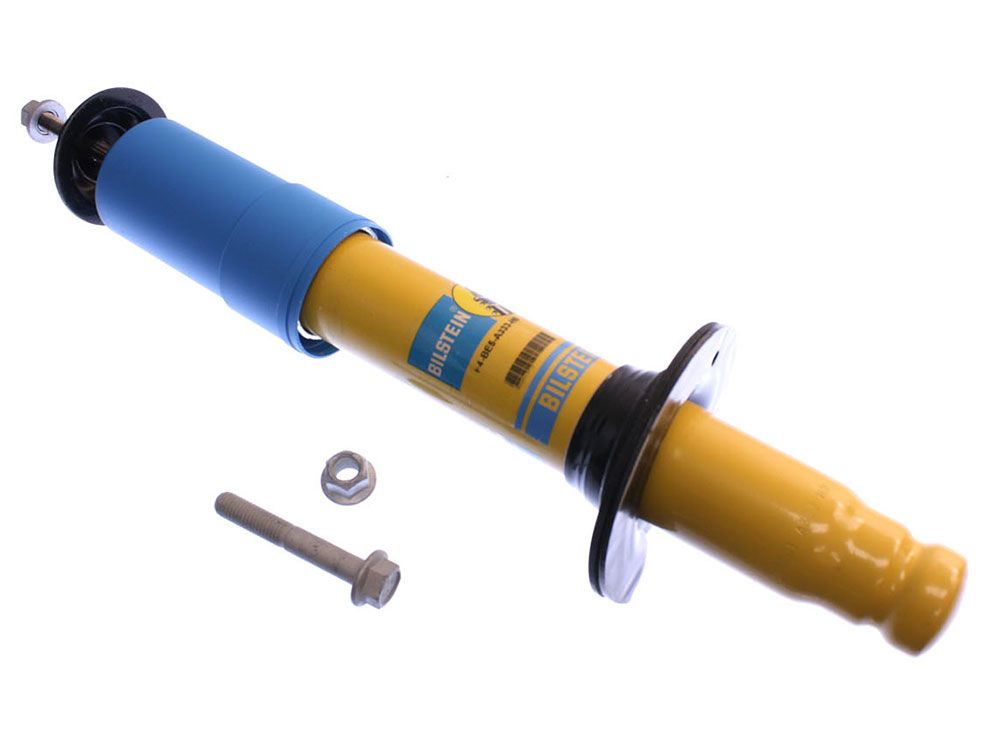

Front Heavy Duty 4600 Series Bilstein Shock

Front Heavy Duty 4600 Series Bilstein Shock

More Views

Be the first to review this product

Availability: In stock

Regular Price: $112.40

Special Price $78.68

Quick Overview

Bilstein 4600 Series Shock. Zinc Plated with a blue boot.


Heat is one of the major detriments to the performance and longevity of any shock absorber. Conventional twin tube designed shocks trap the heat within the shock body and do not let it adequately dissipate, making them prone to heat build-up, fade and eventual failure.

By contrast, Bilstein's technically superior, monotube high gas pressure charged design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming_ and viscosity loss. This allows the shock to maintain full damping characteristics as temperature rises.

  Pressure Differentials

Non-Pressure Foam
Non-pressurized shock, foaming

Shock oils contain roughly 10% gas molecules. The compression and rebound strokes of the shock piston in the oil column cause pressure differentials. When the piston rod is forced quickly into the shock tube, the pressure increases in front of the piston and decreases behind it.
Gas Pressure Shock, No Foam
Gas pressure shock, no foaming
These pressure differentials release gas molecules from the oil column which forms small bubbles (foaming). The foaming can become so excessive that damping force is severely reduced. The shock becomes unresponsive with a corresponding loss of vehicle control.


 Mono vs. Twin
Monotube vs. Twin Tube Shock Design
The photo on the left dramatically illustrates the size difference between the working piston inside a BILSTEIN monotube shock and one found in a typical 'twin tube' shock.
Bilstein's piston has 228% larger surface area than the average conventional twin tube piston offering greater sensitivity and superior vehicle control.


Bilstein's Digressive Working Piston Assembly
Piston Assembly
The piston head design allows independent tuning of the compression and rebound damping forces to provide optimum ride comfort and performance without compromise. It features fewer parts than most conventional twin tube and so called 'road sensing' shock designs. This simple, yet exceptionally functional digressive design contributes to the extreme durability and long life of Bilstein shocks.

4600 Series Shock:
- Specifically designed and manufactured for lifted pickups and SUVs
- monotube design for cooler, more efficient operation and longer life
- 46mm piston diameter provides superior handling and performance
- Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road
- Split compression and rebound valving tuned for each specific application
- Limited lifetime warranty

Installation Instructions

Additional Information

Item Number bil_24-103336
Manufacturer Part Number 24-103336
MPN(UPC) 651860474724
Important Notes Front Coil and Rear Coil.
Manufacturer Bilstein
Make Isuzu
Model Ascender
Year Spans 2003,2004,2005,2006,2007
2WD/4WD 2WD, 4WD
Front/Rear Front
Shock Series Bilstein 4600 Series
