2.5" 1974-1993 Dodge Ramcharger/Trailduster 4WD Budget Lift Kit by Jack-It Brand: Jack-It | SKU: DG151SD / DG152SD
$866.99
- +
866.99

2.5" 1974-1993 Dodge Ramcharger/Trailduster 4WD Budget Lift Kit by Jack-It

Brand: Jack-It | SKU: DG151SD / DG152SD
From $866.99

2.5" 1974-1993 Dodge Ramcharger/Trailduster 4WD Budget Lift Kit by Jack-It

Brand: Jack-It | SKU: DG151SD / DG152SD
From $866.99


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Jack-it has put together three different suspension lift kit packages for the Ramcharger. The Budget, Deluxe & Premium kits. These kits have been specifically designed for the exact year of your Ramcharger, with proper U-bolt sizes, steering corrections, all kits include Skyjacker softride front leaf springs. All Ramchargers had rear lift blocks from the factory, Jack-it will never double stack the rear blocks to get the lift because it creates a ton of axle wrap! We use a few different methods to lift the rear like add-a-leafs or a taller cast iron lift block or new Skyjacker soft ride rear leaf springs. All of these options will of course include rear u-bolts. A few notes to remember if you are going to lift your Ramcharger are that Ramchargers have a non-adjustable drag link from the factory which will make your steering wheels off center when you're driving straight. The only way to correct this is to purchase an adjustable drag link (part # SKJ_DL10) or you can pull your steering wheel off and re center it. Another problem is the front pinion angle if you're lifting your Ramcharger 4 inch or more. The way the factory set the pinion angle in relation to the caster angle of your ball joints, after you lift the ramcharger, the pinion will no longer line up properly with the front drive shaft without causing your caster angle to be too far out of specifications. So your choices are to cut and re-weld your ball joint yokes on the front axle, or you can live with a little bit of front drive shaft vibration when in 4WD. If you have a full time 4WD we recommend that you convert it to a part time 4WD set up. Last of all, most Ramchargers we've lifted 4 inch or taller work best if a CV type rear drive shaft is installed to run smooth and not have any vibration out of the rear.

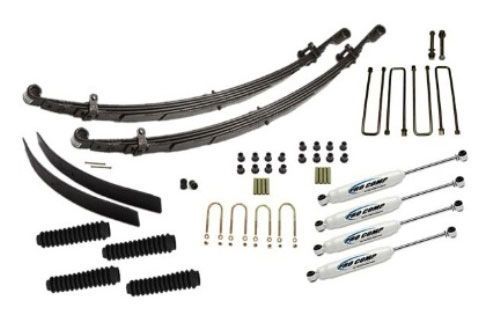

Budget Kit Includes:
- Front Spring Eye Bolt Kit
- (4) Pro Comp Shocks w/ Boots
- Shock Bushings
- Front Skyjacker Leaf Springs
- Spring and Shackle Bushings
- U-Bolts
- Rear BDS Suspension Add-a-Leafs

Important Notes1978-1993 Only: Will not be able to adjust steering to center wheel or turning radius unless part # skj_dl10 is used.
Vehicle Fitment
MakeDodge
ModelRamcharger
Year Fitment1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984, 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberDG151SD / DG152SD
Item NumberDG151SD/DG152SD
Product LineLift Kits
Lift Height2 inch
