6 inch 1976-1977 Ford F150 4WD Deluxe Lift Kit

Be the first to review this product

Availability: In stock

$1,507.58
OR

Quick Overview

6 inch Deluxe Suspension Lift Kit

Manufacturer

Jack-It

6 inch 1976-1977 Ford F150 4WD Deluxe Lift Kit

Details

These kits were designed to give superior performance from highway handling and towing as well as excellent off road stability. This is achieved by using a combination of coil springs, radius arm drop brackets with C bushings, adjustable drag link, and a track bar. Coil springs are pre-settled to reduce height changes. C bushings and a radius arm drop bracket will correct the negative caster degree angle, which is one of the biggest problems with the F150. An adjustable drag link will correct several problems that increased drag link angles can cause. A track bar will prevent 'Dog Track', this is where on one side of the truck, the tires will stick out further than on the other side. These are the most complete kits on the market. Purchase a deluxe or premium to give your truck all the extras it needs for a superior ride.

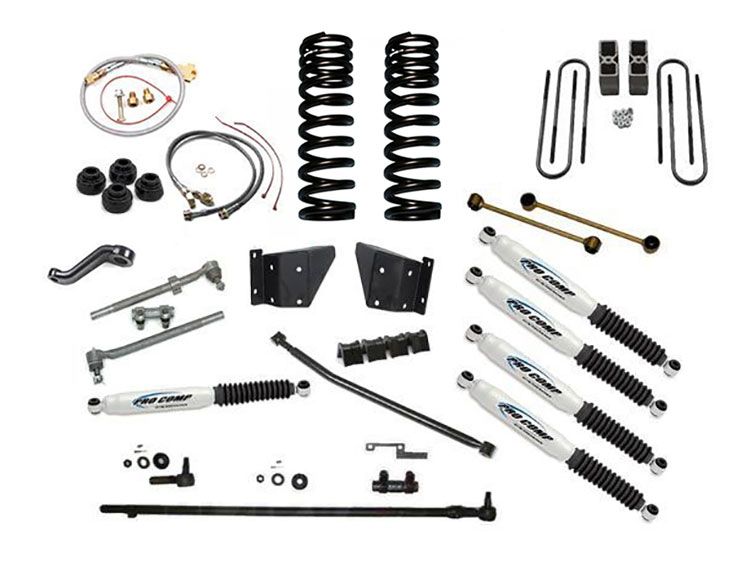

Deluxe Kit Includes:
- BDS Suspension Front Coil Springs
- Polyurethane 'C' Bushings
- (4) Pro Comp Shocks
- Rear Blocks
- Adjustable Track Bar
- Radius Arm Drop Brackets
- Stainless Steel Brake Lines
- Rear U-Bolts
- Steering Stabilizer
- T Style Tie Rod
- Drop Pitman Arm
- Poly Radius Arm Bushings
- Drag Link
- Sway Bar Extension

Additional Information

Item Number FD144DX
Manufacturer Jack-It
Make Ford
Model F150
Year Spans 1976,1977
Lift Height 6 inch
2WD/4WD 4WD
Notes If vehicle is equipped with rear sway bar, will need to cut and lengthen end links. Ford Sway Bar bushings are not included in this kit.
