F100/F150 1978-1979 Ford 4WD (Pwr) - Drop Pitman Arm

Be the first to review this product

Availability: In stock

$52.95
OR

Quick Overview

Drop Pitman Arm

Manufacturer

Zone

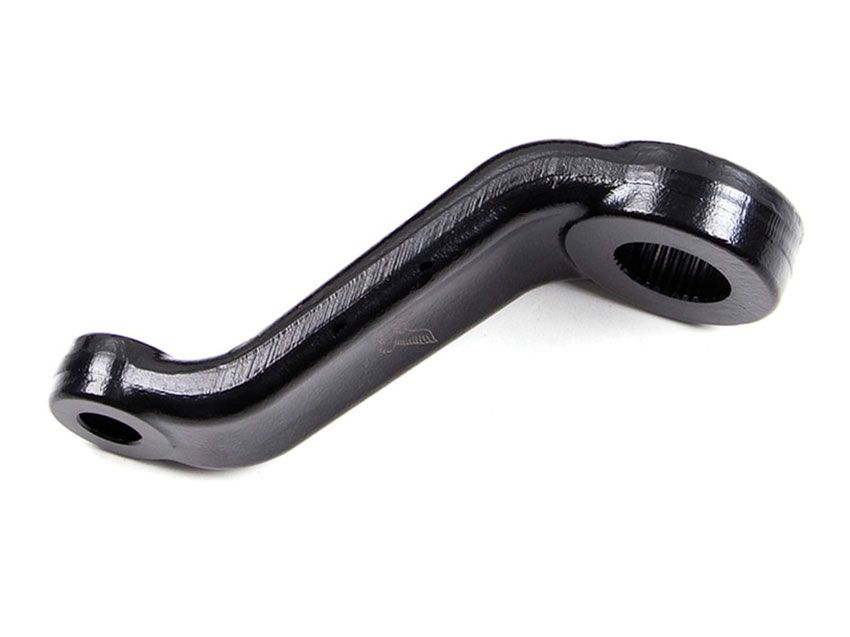

F100/F150 1978-1979 Ford 4WD (Pwr)  - Drop Pitman Arm

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • This diagram is shown for models F100 / F150 78 - 79 4WD. This is referred to as the "T style" steering.
  • This diagram is shown for models F100 / F150 76 - 77 4WD. This is referred to as the "Y style" steering. The drop pitmen arm will not fit this system unless it's converted to a "T style" (above) steering system. You will need to purchase a drag link and a

Details

Zone Offroad Products has added a complete line of pitman arms for your custom projects. We know the importance of getting your steering geometry setup correctly when adding a lift. These heavy duty one piece forged pitman arms will reduce the drag link angle to improve your handling when used to match the angle of your track bar.

Drop Pitman Arms will NOT work for this truck with it's stock Y Style Steering. You must first purchase and adjustable (or non-adjustable) Drag Link and a Tie Rod assembly that will convert it to a T-Style, also sold in the steering section of our site.

Installation Instructions

Additional Information

Item Number zon_f8402
Manufacturer Part Number F8402
Manufacturer Zone
Make Ford
Model F100, F150
Year Spans 1978,1979
2WD/4WD 4WD
Notes This will not fit with a Y Style Steering. To make it a T-Style, you'll need to purchase a drag link and a tie rod assembly. Is a 4" drop pitman arm. Fits power steering models only.
Steering Corrections Drop Pitman Arms
