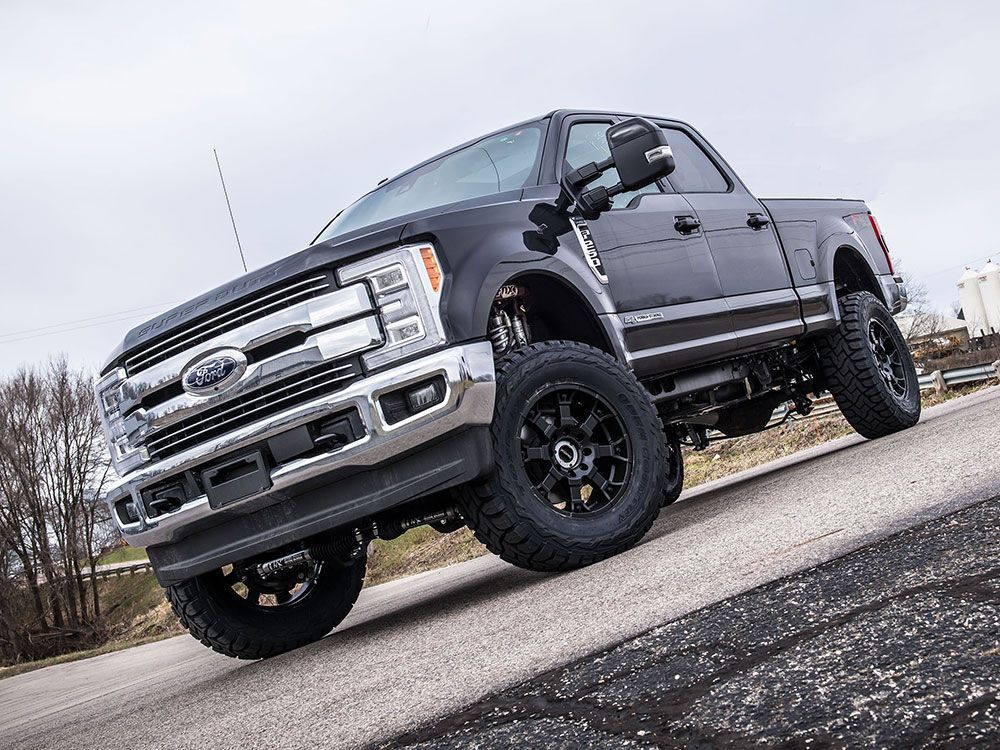

4" 2017-2019 Ford F250/F350 4WD (w/diesel engine) CoilOver Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1520F
As low as $3,649.70 Regular Price $3,919.83


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

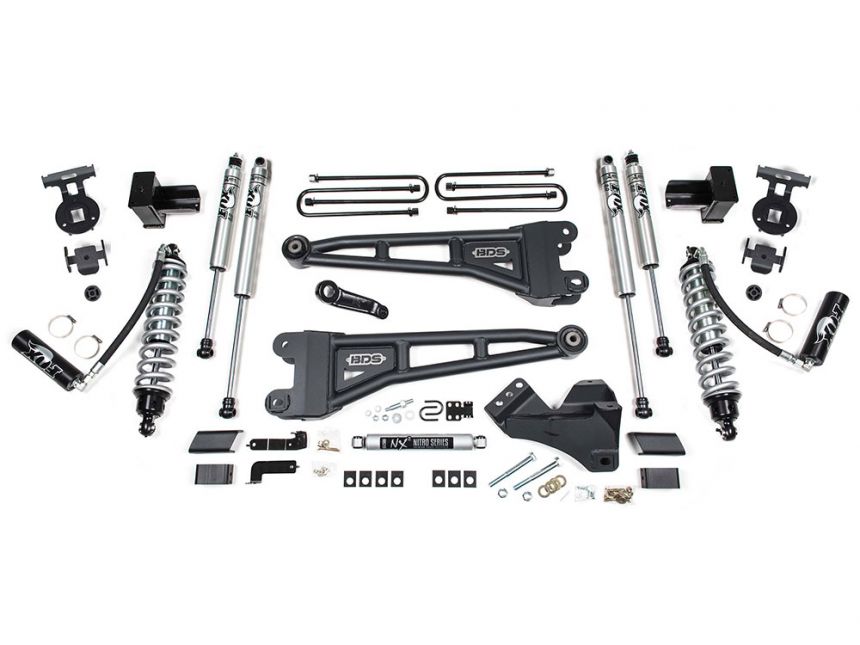

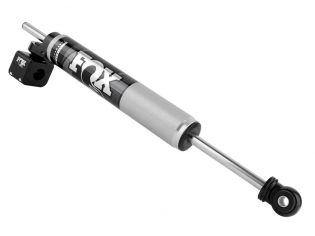

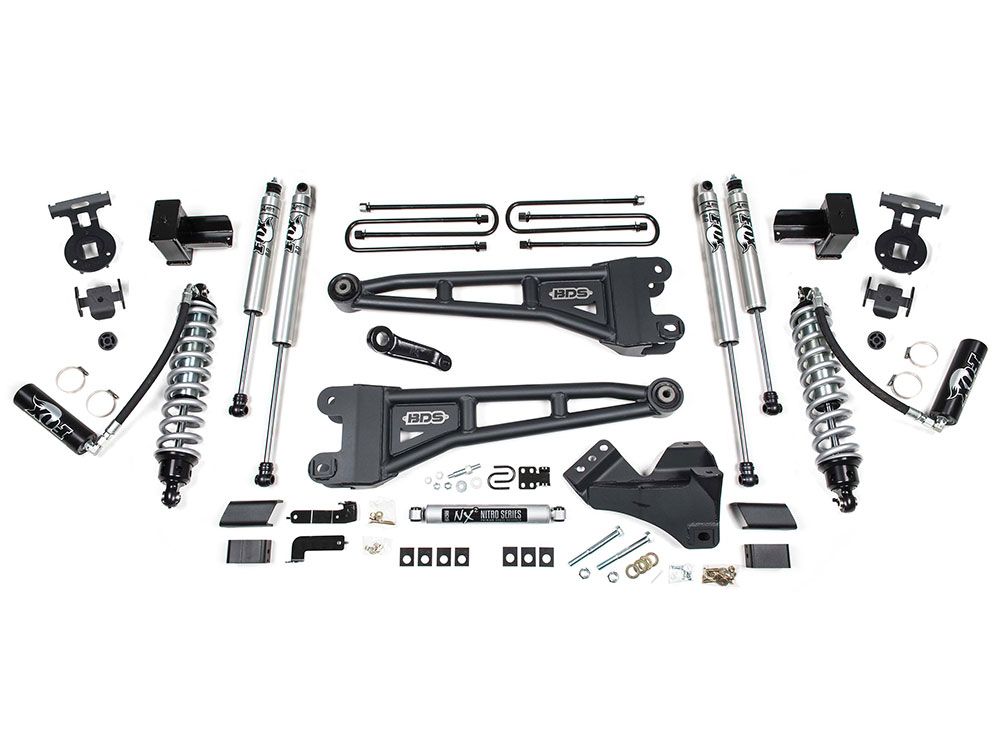

This BDS 1520F 4" coil-over lift kit for the Ford F250 / F350 trucks integrates FOX 2.5 remote reservoir coil-overs and FOX 2.0 shocks to take your trucks performance and capability to the next level. Up front a pair of heavy duty replacement radius arms are supplied to correct caster, improve ground clearance, and offer more strength than the factory stamped steel units. These arms are built from 1-3/4" OD -10GA DOM tubing with support gussets and are formed inward to allow for additional clearance of oversized tires. These work in combination with the specially tuned FOX 2.5 factory series remote reservoir coil-overs. These coil-overs are easy install using the supplied frame and axle mounting brackets. Moving onto the steering, the steering correction comes from a forged drop pitman arm with integrated a drag link flip. Also supplied is a 1/4" thick gusseted track bar drop bracket to recenter the front axle and keep the angles in phase for improved handling. Included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, auxiliary FOX 2.0 performance series IFP shocks and upgraded steering stabilizer with mounting bracket. In the rear 5 inch fabricated block with integrated bump stop wing is used in place of the factory block on the F250 or F350 to level the stance. Longer black e-coated u-bolts and matching FOX 2.0 IFP shocks round out this 4" radius arm lift kit.

Features and Benefits:

  • Allows for use of 37 inch tires
  • Premium Quality Components
  • Fox 2.5 Remote Reservoir Coil-Overs
  • Fox 2.0 Performance Rear Shocks
  • Heavy Duty replacement tubular radius arms
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 4 to 6¬†Hours
  • 37" x 12.50" w/17 x 9 and 4.5"-5" back spacing
  • 37" x 12.50" w/18 x 9 and 4.5"-5" back spacing
  • 37" x 12.50" w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important NotesDiesel Model Only
Removal of the factory leaf spring block required. Net rear lift will vary depending on height of factory block, but will result in a level stance.
If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
37 x 12.50 tires may require minor trimming.

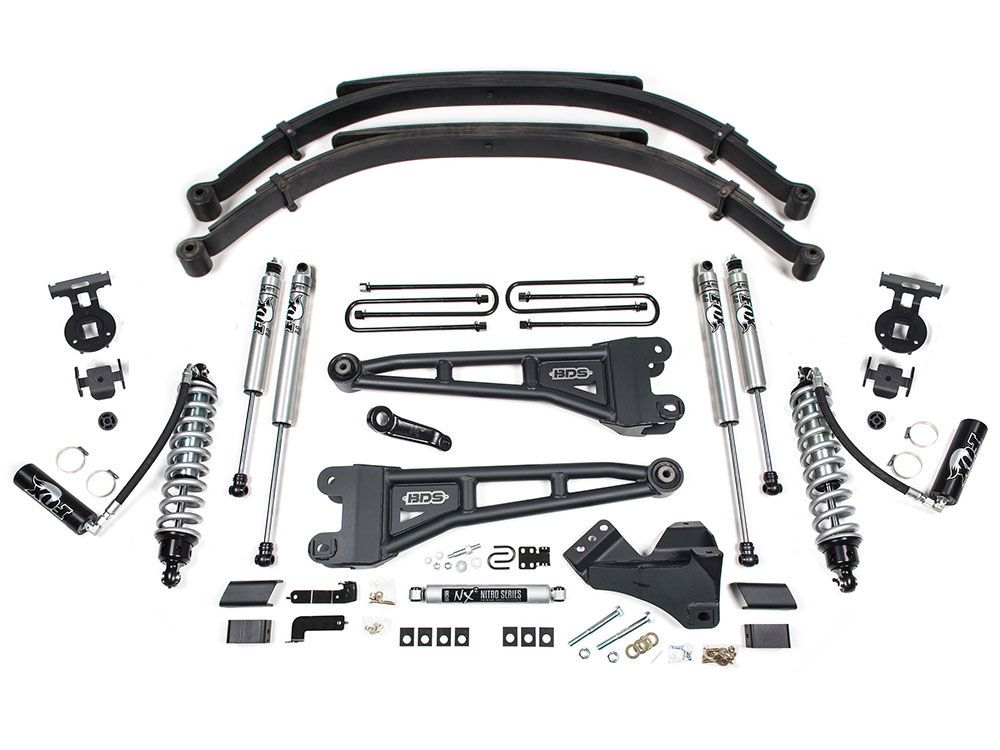

Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2019, 2018, 2017
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number1520F
Item Numberbds_1520f
Product LineLift Kits
Lift Height4 inch
EngineDiesel
