4" 2015-2020 Ford F150 2WD CoilOver Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!
This 4'' Performance Coil-over Systems brings together the safety and capability of BDS's 4'' lift kits with the uncompromising performance of Fox factory series 2.5 remote reservoir coil-overs and rear Fox 2.0 IFP shocks for true blend of on-road comfort and off-road performance, engineered to the highest standard using quality materials built right here in the USA.
The Fox factory series 2.5 remote reservoir coil-overs come pre-tuned with Eibach coil springs for impressive high speed off-road performance. The coil-overs are pre-dialed to provide 4" of lift right out of the box to speed up installation. For those needing additional coil-over compression with the ability to tune it just right, Fox's DSC (dual speed compression) adjuster coil-overs are available as an upgrade. Both coil-overs are built to outperform out on the trail while offering fade free performance to push your new F150 to the limits.

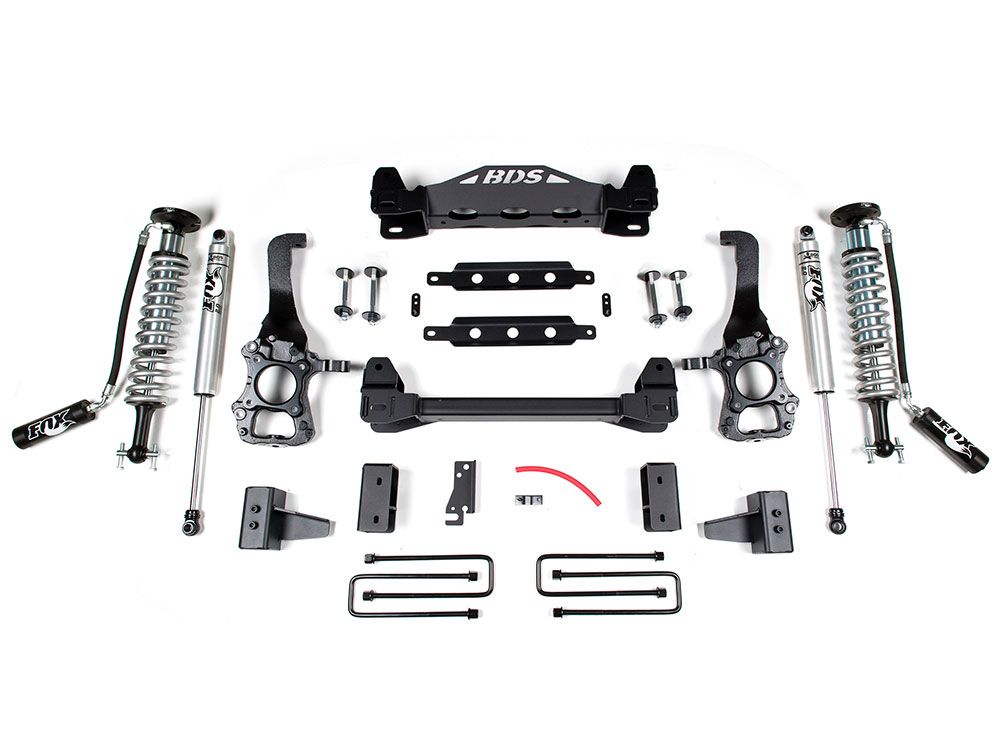

Also supplied are a pair of high clearance one-piece laser cut 1/4" steel cross-members, CNC-machined ductile iron steering knuckles, heavy duty replacement ball joints, sway bar relocation brackets, new alignment cam bolts, and billet aluminum driveshaft spacer.
In the rear a 4" block kit replaces the factory 1.25'' block to eliminate stacking blocks. Rear brake line extensions and Fox 2.0 shocks round out this kit offering exceptional performance on any terrain and clearance for up to 35'' tires to be installed.
This new 4'' lift kit is certified compliant with the National Highway Traffic Safety Administration's (NHTSA) FMVSS No.126 standards to not adversely effect the factory installed Electronic Stability Control (ESC) Systems installed on the new 2015-16 Ford F150. Along with FMVSS No.126 compliance, all BDS kits include the Factory Protection Plus Program offering peace of mind on road or on the trail. All kits include BDS's No Fine Print Warranty and a 5 year - 60,000 mile PLUS drivetrain warranty for the best lifted suspension protection coverage on the market.
Tire and Wheel Combinations:
BDS Suspension Lift Kit Warranty
|Important Notes18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
|Year Fitment||2020, 2019, 2018, 2017, 2016, 2015|
|Manufacturer Part Number||BDS1523F|
|Product Line||Lift Kits|
|Lift Height||4 inch|
