4" 2015-2020 Ford F150 4WD Fox Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1533F
As low as $3,818.61

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS 1533F 4'' suspension lift kit for the Ford F150 4wd with year a range from 2015 to 2020 is a premium lift system that features Fox Factory Series 2.5 Remote Reservoir Coilovers (upgradable to DSC adjustable ride control) . Once installed this kit delivers unmatched performance for both on-road and off-road conditions. Will allow for use of up to 35 inches with proper wheel width and backspacing.

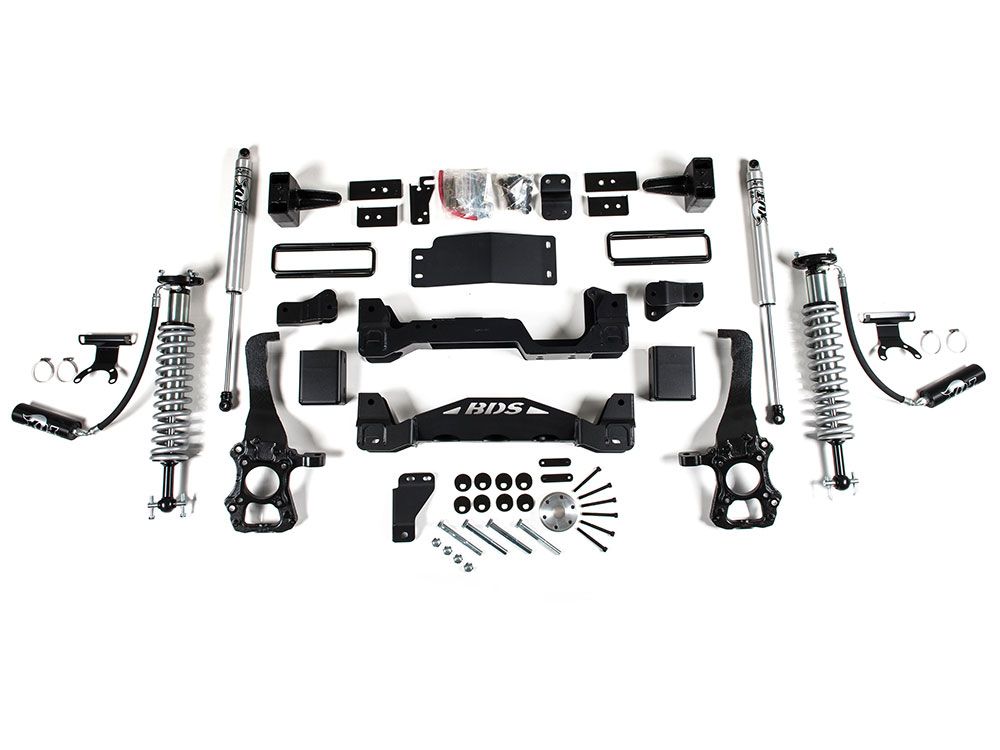

Along with the Fox coilovers this kit is built around a pair of high clearance one-piece 1/4" steel crossmembers, CNC-machined ductile iron steering knuckles, heavy duty replacement ball joints, multipoint differential relocation brackets, heavy duty differential skid plate, sway bar relocation brackets, new alignment cam bolts, and billet aluminum driveshaft spacer.

To lift the rear a 4" lift block kit replaces the factory 1.25'' block to eliminate stacking blocks. Rear brake line extensions and Fox 2.0 shocks complete the rear.

Features and Benefits:

  • Allows for use of 35 inch tires
  • Premium Quality Components
  • Fox 2.5 Remote Reservoir Coil-Overs
  • Fox 2.0 Performance Rear Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • NHTSA FMVSS No.126 compliant (compatible with Electronic Stability Control)
  • Estimated Install Time: 8-10 Hours
  • Fits up to a 35 inch x 12.5 inch tire w/ 18 x 9 and 5 inch back spacing
  • Fits up to a 35 inch x 12.5 inch tire w/ 18 x 9 and 5-5.5 inch back spacing
  • Fits up to a 35 inch x 12.5 inch tire w/ 20 x 9 and 5-5.5 inch back spacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important Notes - 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
- 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
- For a level to tail low appearance use #BDS_023416 with Kit#BDS_1502H or use #013429 with Kit#BDS_1503H. Block kits replace factory 1-1/4" block.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #BDS_122406
Vehicle Fitment
Year Fitment2020, 2019, 2018, 2017, 2016, 2015
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number1533F
Item Numberbds_1533f
Product LineLift Kits
Lift Height4 inch
