Name: 4" 2020-2022 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Radius Arm Lift Kit by BDS Suspension
Brand: BDS Suspension
SKU: bds_1551f
Price: 3647.34 USD

3647.34

Brand: BDS Suspension | SKU: 1551F

As low as $3,647.34 Regular Price $3,917.83

FREE SHIPPING !!
on orders +$149, exclusions apply

Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548

Product Description

More Information

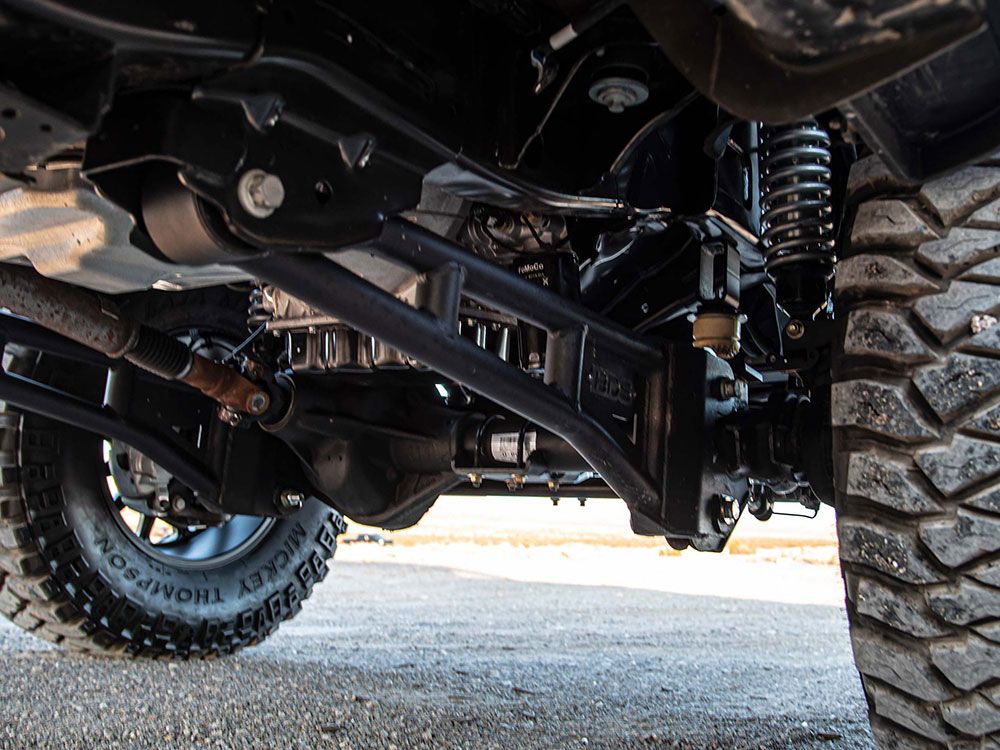

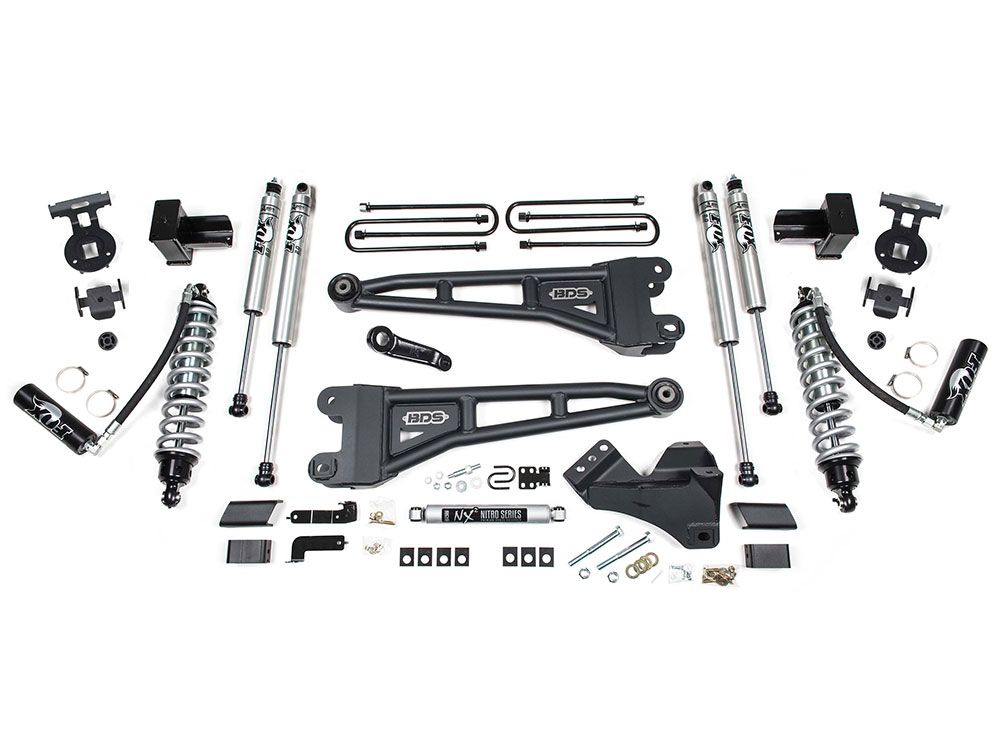

This BDS 1551F is the ultimate premium suspension lift kit for the Ford F250 / F350 Super Duty trucks. Featuring Fox 2.5 Factory Series Remote Reservoir Coil-Overs. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. A forged drop pitman arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket. In the rear the factory blocks are replaced by a pair of 4.5 inch lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts. Features and Benefits: Ultimate Premium Suspension Lift Kit for Ford F250 / F350 models Fox 2.5 Coil-Overs replace factory coil springs Coil-Overs pre-tuned for vehicle, improve ride quality and suspension performance Heavy Duty 1 3/4 inch tubular radius arms High clearance arms for maximum clearance Forged drop pitman arm to correct steering angles Fox 2.0 Performance Shocks Allows use of up to 37 inch tires Average Install Time: 6 hours No Fine Print Lifetime Warranty Factory Protection Plus Fits 37" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing Fits 37" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing Fits 37" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing Premium Quality, Lifetime Warranty and Protection BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info View BDS Suspension 1551F Instruction Manual
Product Highlights Fox 2.0 Performance Series Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance. Heavy Duty Radius Arms Included are BDS high strength tubular radius arms. These replace the factory stamped arms to maintain properly front end geometry by correcting caster. Made from 1-3/4" OD heavy wall steel these arms are very strong ...and they look great! Fox Coil-Over DSC Adjustment The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Important Notes Fits Diesel Models Only Removal of the factory leaf spring block required. Net rear lift will vary depending on height of factory block, but will result in a level stance. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402) 37 x 12.50 tires may require minor trimming.
