6" 2019-2023 Dodge Ram 1500 & Rebel (w/o factory air ride) 4WD Fox Coilover Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: 1661F
$4117.71
- +
4117.71

6" 2019-2023 Dodge Ram 1500 & Rebel (w/o factory air ride) 4WD Fox Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1661F
As low as $4,117.71 Regular Price $4,381.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

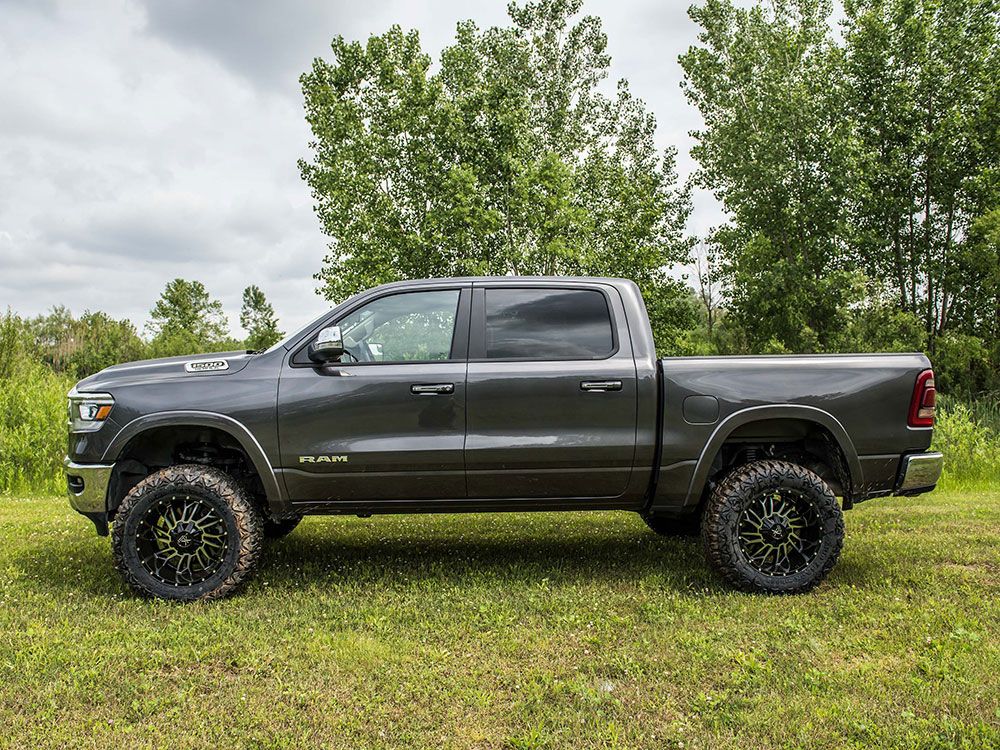

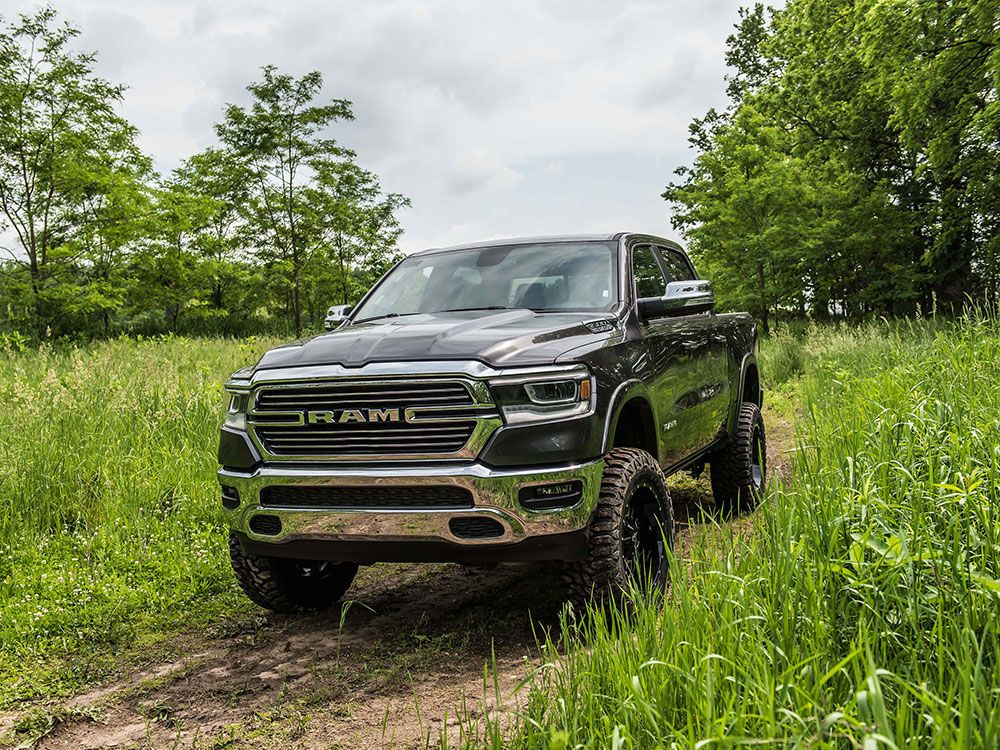

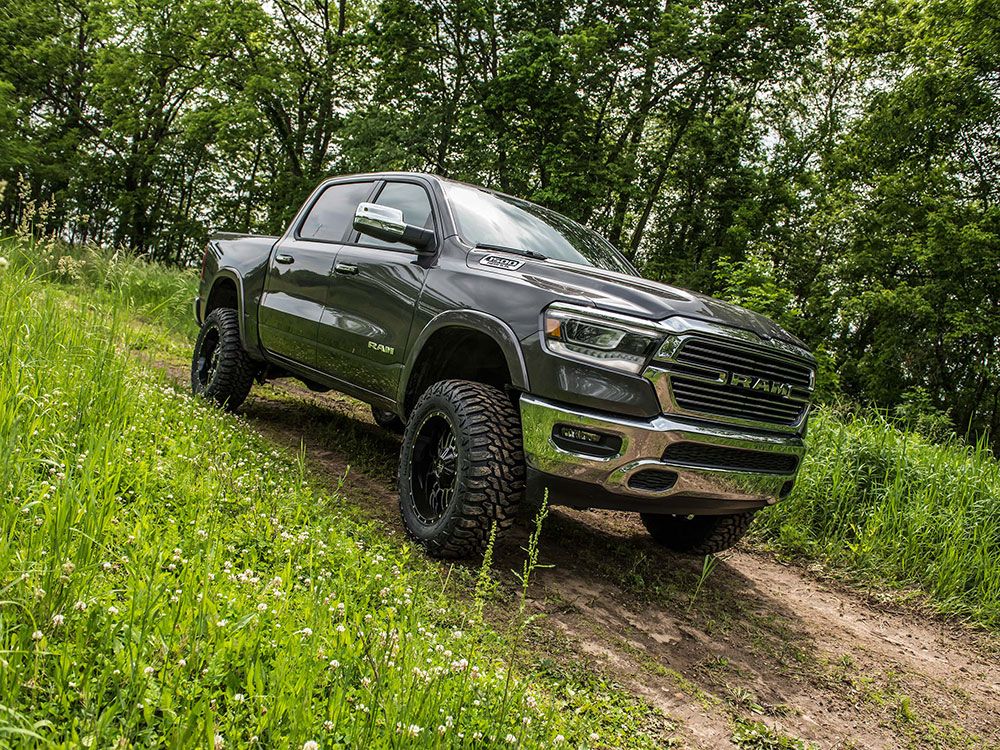

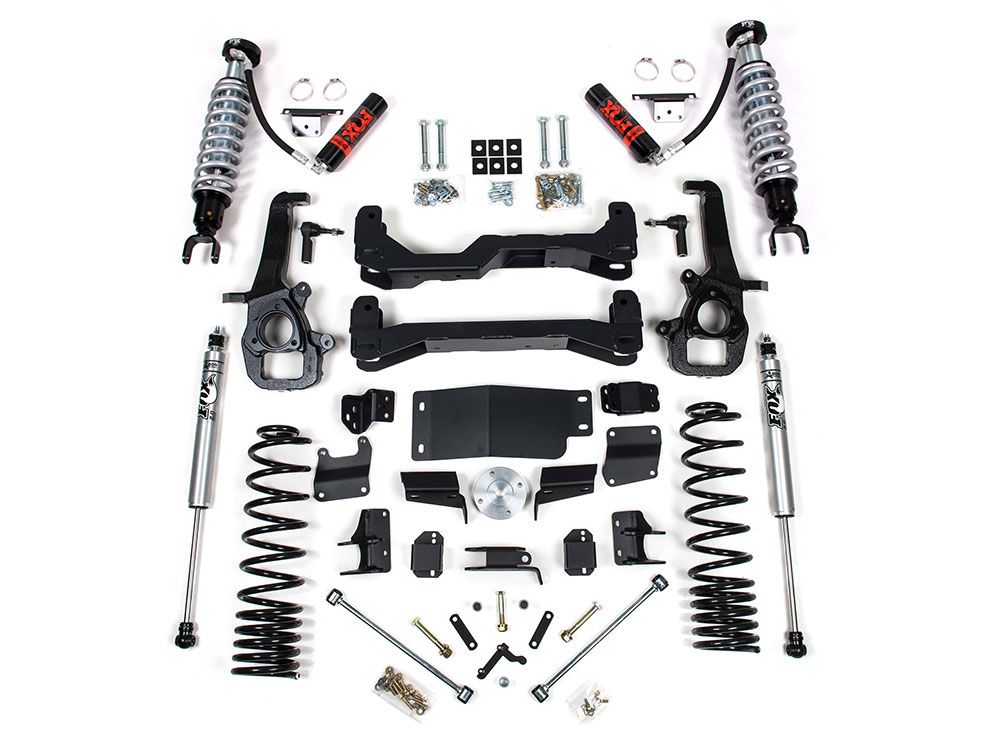

The BDS 1661F 6 inch coil-over lift kit for the Dodge Ram 1500 4wd is the ultimate suspension system for your truck. This kit will allow for fitment of up to 37 inch diameter tires for an amazing off-road look and performance.  This is done without sacrificing ride quality and handling.

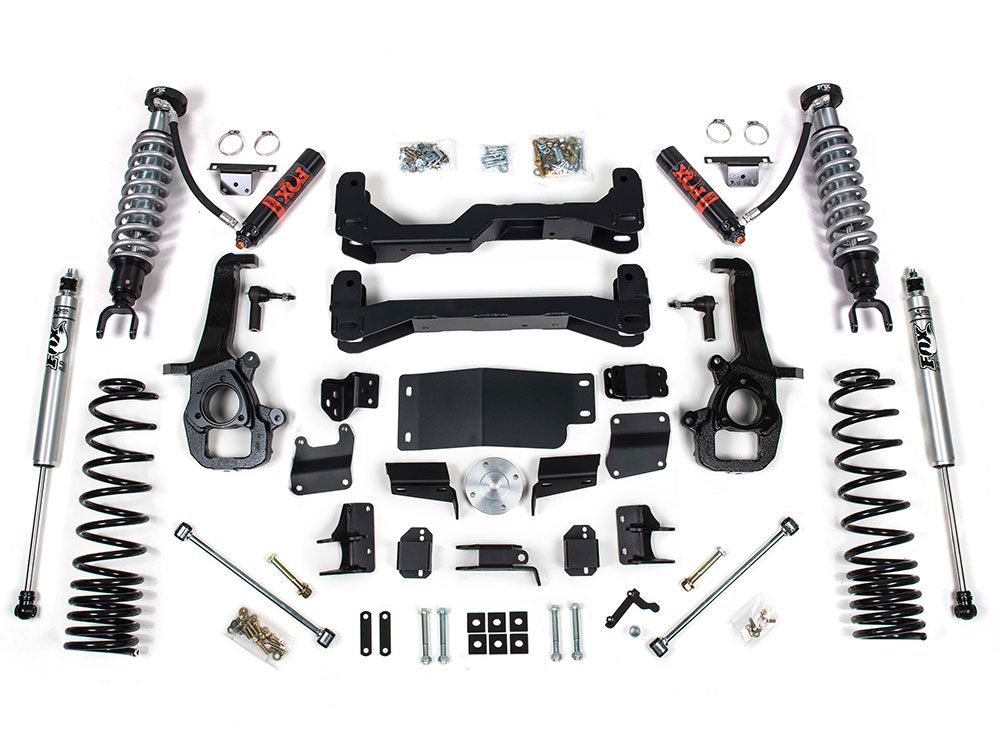

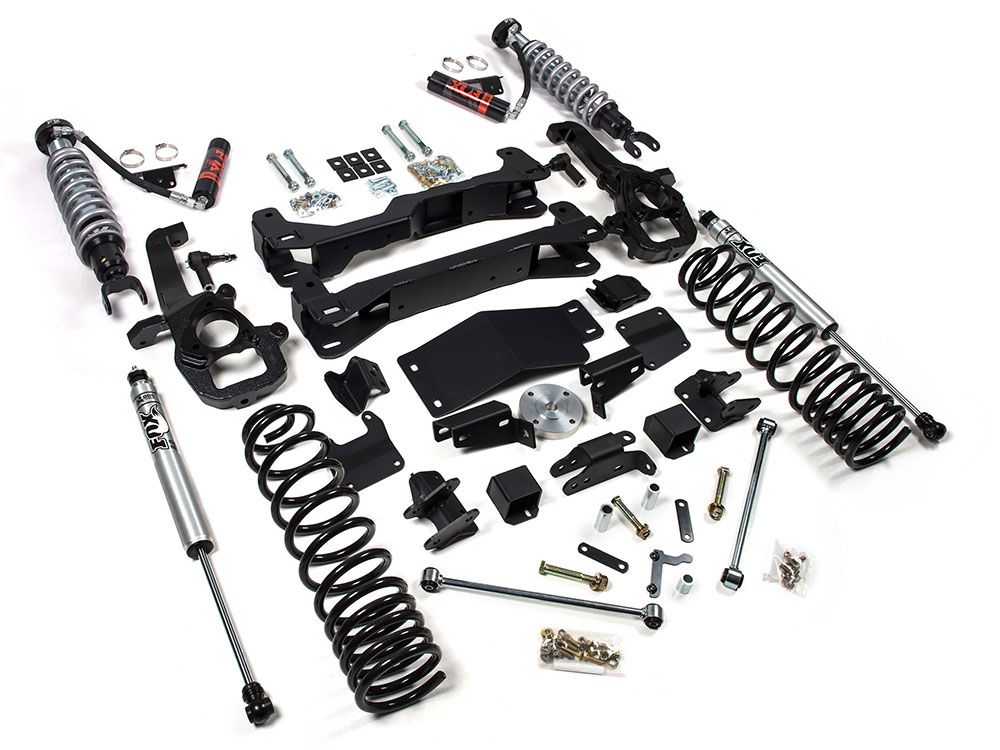

This ultra premium suspension lift kit features Fox 2.5 Factory Series Remote Reservoir Coilovers that will dominate the off-road trails while improving on road performance.  A set of 1/4 inch thick steel laser cut high clearance crossmembers that are designed to get maximum clearance and provide a rock solid mounting point for the factory lower control arms. 3 piece heavy duty front skid plates connects the cross members while protect steering and drive line components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The factory front driveshaft is maintained with the use of a billet aluminum driveshaft spacer.

The rear end is lifted using 5 inch tall ProRide coil springs intended to level the truck.  Proper geometry is maintained with the use of control arm relocation brackets, a rear track bar drop bracket (centers rear axle), extended sway bar end links and bump stop extensions. Fox 2.0 Performance rear gas shocks improve dampening performance on tough terrain while maintaining excellent on road ride quality.

Features and Benefits:

  • Ultra Premium Suspension System
  • Fox 2.5 Factory Series Remote Reservoir Coil-overs
  • Lifts vehicle 6 inch front / 5 inch rear
  • 1/4 Inch Steel High Clearance Cross Members
  • 3 Piece Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Allows use of up 37 inch tires
  • Average Install Time: 12 hours
  • Proudly made in the USA, using only premium quality components
  • This kit is FMVSS No.126 Compliant
  • Fox 2.0 Performance IFP Rear Shocks
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits a 37" x 12.50" w/17 x 9 tire and 4.5" back spacing
  • Fits a 35" x 12.50" w/18x9 / 20x9 tire and 4.5" - 5" back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Product Highlights

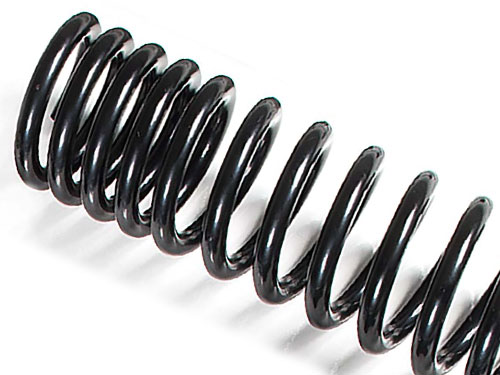

ProRide Dual Rate Coil Springs
This kit includes the BDS ProRide Dual Rate Coil Springs. Designed to not only lift your vehicle, but also improve ride and overall performance. Featuring a softer intial spring rate over factory springs for a smooth on-road ride. The firm secondary rate gives more stability in harsh terrain.
Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.

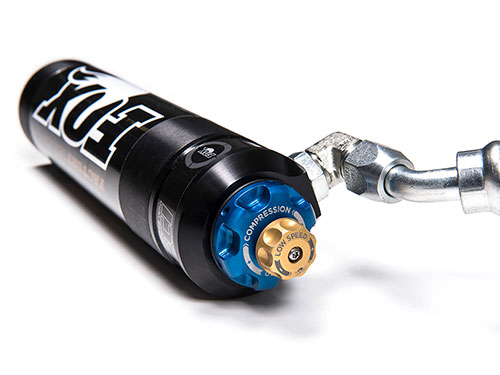

Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Important Notes
  • RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ
  • Will NOT fit adjustable "air ride" suspension equipped models
  • Stock 17" wheels cannot be reinstalled to to steering interference. Stock 20s can be reinstalled with factory tire size
  • This kit will NOT work on Diesel models.
  • Will NOT fit 2019-2022 Ram 1500 Classic models (old body style). Refere to 2018 kit listings
  • Vehicle Fitment
    MakeDodge
    ModelRam 1500
    Year Fitment2023, 2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1661F
    Item Numberbds_1661f
    Product LineLift Kits
    Lift Height6 inch
