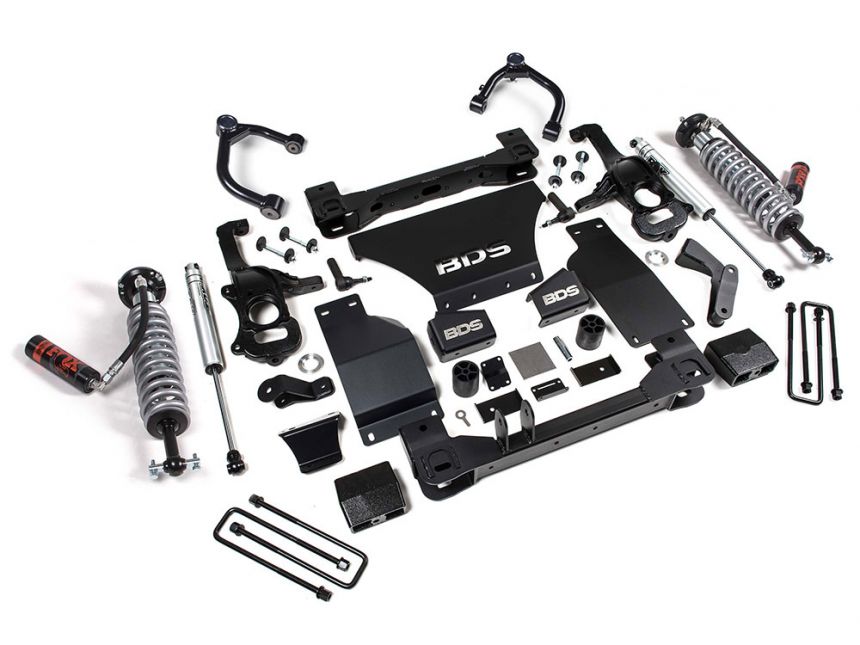

2.5" 2019-2023 Chevy Silverado 1500 Trail Boss 4WD (w/gas engine) Fox Coilover Lift Kit by BDS Suspension

The BDS 1804F 2.5 inch premium coil-over suspension lift kit for the Chevy Trail Boss Silverado 1500 truck will allow for fitment of up to 35 inch diameter tires for a great off-road look. Featuring Fox 2.5 factory series remote reservoir coil-overs.  These Fox 2.5 Coil-overs will enhance ride quality and handling in both on-road and off-road conditions.

This lift kit also features 1/4 inch thick steel laser cut high clearance crossmembers that are designed to give maximum clearance and provide a rock solid mounting point for the factory lower control arms. 3 piece heavy duty front skid plates connects the cross members while protect steering and driveline components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility along with tubular upper control arms. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 3 inch tall axle blocks (replacing 2.5 inch factor blocks) with extended U-bolts.

Features and Benefits:

• Lifts vehicle 2.5 inch front / .5 inch rear
• 1/4 Inch Steel High Clearance Crossmembers
• 3 Piece Heavy Duty Front Skid Plate
• Tubular upper control arms with rubber bushings and indexed ball joints
• High Clearance design max clearance
• 3 inch rear block replaces factory 2.5 inch block
• Ductile Iron Heavy Duty Steering Knuckles
• Multi-Point Front Differential Relocation System
• Allows use of up 35 inch tires
• Average Install Time: 8 hours
• Option to upgrade to Fox 2.5 DSC Adjustable Coil-overs
• Proudly made in the USA, using only premium quality components
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits a 35" x 12.50" tire w/20 x 9 / 22 x 9 and 5.5"- 6.25" back spacing
• Fits a 33" x 12.50" tire w/20x9 / 22 x 9 and 4.5" -  5.5" - 6.25" back spacing
• Fits a 33" x 12.50" tire w/17x9 / 18x9 and 4.5" back spacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info
