4" 2007-2013 GMC Sierra 1500 2WD High Clearance Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS186H
$1569.12
- +
1569.12

4" 2007-2013 GMC Sierra 1500 2WD High Clearance Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS186H
From $1,569.12 Regular Price $1,651.70

4" 2007-2013 GMC Sierra 1500 2WD High Clearance Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS186H
From $1,569.12 Regular Price $1,651.70


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The unique BDS High Clearance lift kit for the GMC Sierra 1500 is a true blend of performance, appearance, and function. The suspension geometry of this 6-1/2 inch lift kit creates a factory style ride with a desert racing appearance. The high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 6-1/2 inch and increasing ground clearance at the front crossmember by 91%.

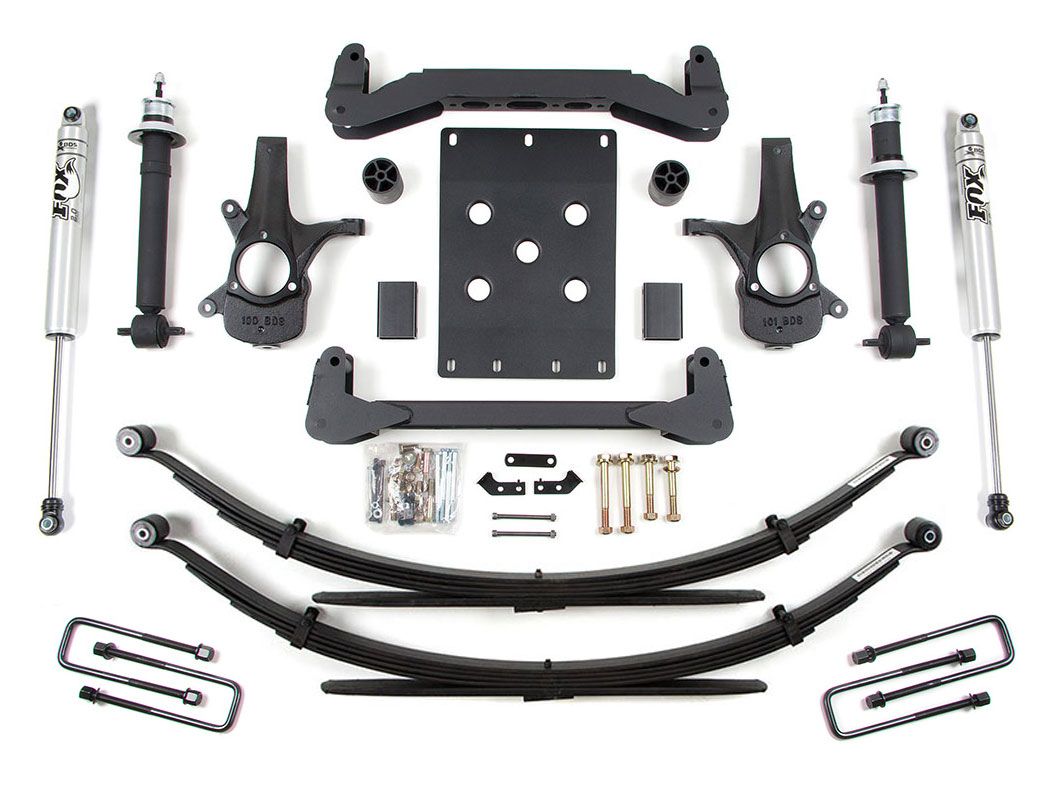

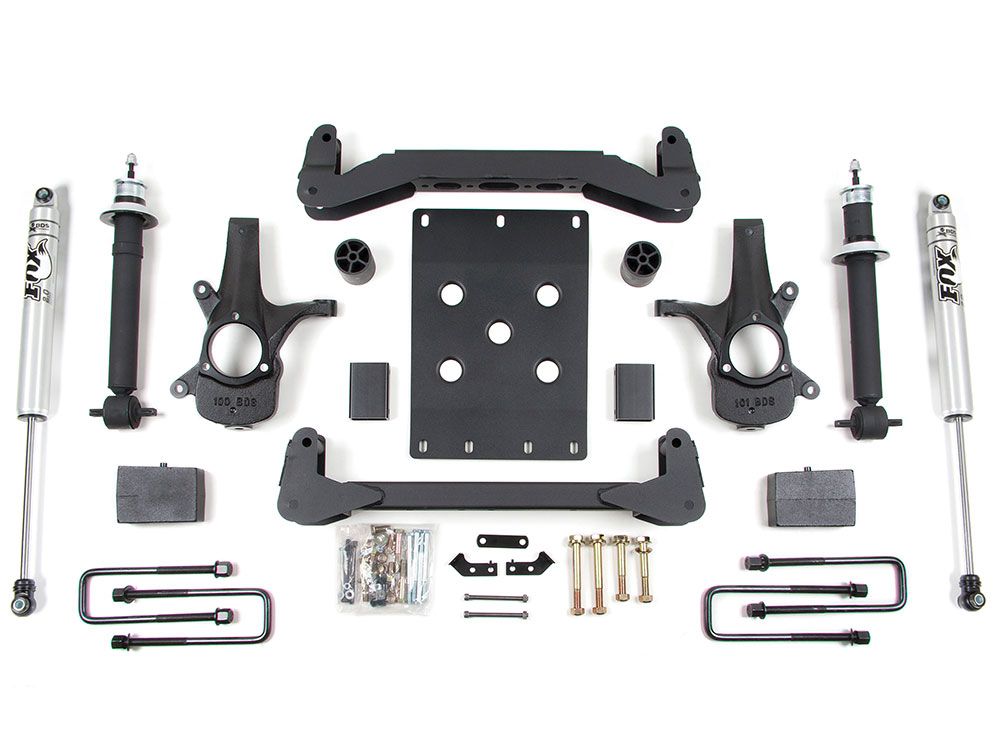

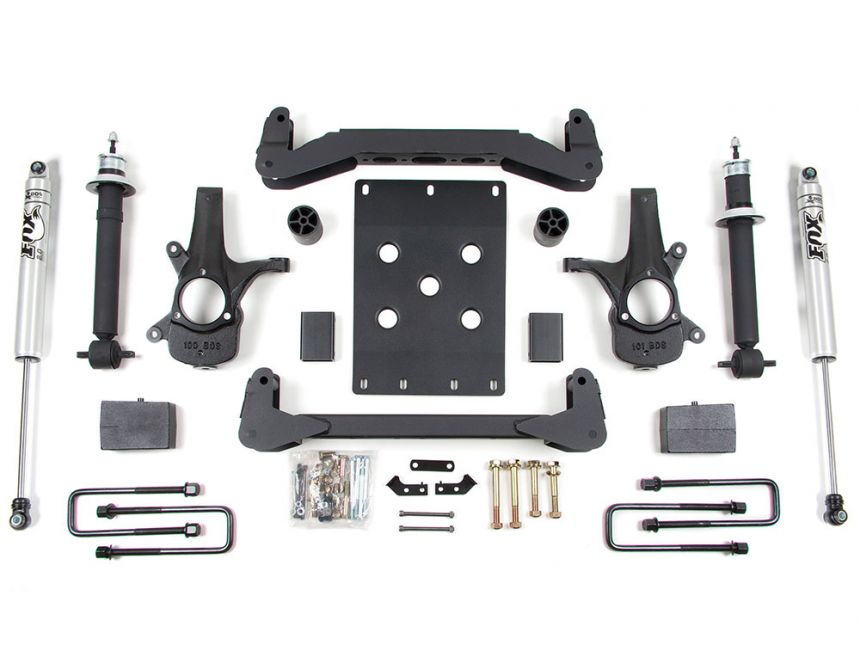

This complete suspension lift kit comes with front and rear hydraulic shock absorbers and ductile steering knuckles correcting steering geometry to factory angles. Heavy duty front and differential skid plates are also included for extreme off road protection. The rear lift is accomplished with new coil springs, track bar relocation, sway bar links and extended bump stops.

Features and Benefits:

  • Increases ground clearance
  • Front Coil-over strut cylinders with 18mm shafts are included
  • NX2 or Fox shocks available
  • Made in the USA
  • Takes up to 8 hours for installation
  • Fits a 32 inch x 11.5 inch w/ 17 inch x 8 tires and 4.5 inch back spacing
  • Fits a 33 inch x 12.5 inch w/ 18 inch x 9, 20 x 9 tires and 5-5.75 inch back spacing
    • *May require trimming*

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Important Notes
  • Less trimming is required if 20 inch x 9 inch Wheels with 5-3/4 inch backspacing are used.
  • Will not fit 2009-2011 two-mode hybrid models with electronic power steering (EPS).
  • Installation of the optional rear leaf springs requires removal of the fuel tank.
  • Traction bars will not fit regular cab, short box models.
  • This system will not 2007 Classic models.
  • Strut compressor required for installation.
  • Requires frame bracket modification.
  • Will NOT FIT later models.
  • Vehicle Fitment
    MakeGMC
    ModelSierra 1500
    Year Fitment2013, 2012, 2011, 2010, 2009, 2008, 2007
    2WD/4WD2WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS186H
    Item Numberbds_bds186h
    Product LineLift Kits
    Lift Height4 inch
