4" 2011-2016 Ford F350 4WD (w/diesel engine) 4-Link Coil Over Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: 590F
$4466.88
- +
4466.88

4" 2011-2016 Ford F350 4WD (w/diesel engine) 4-Link Coil Over Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 590F
As low as $4,466.88


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

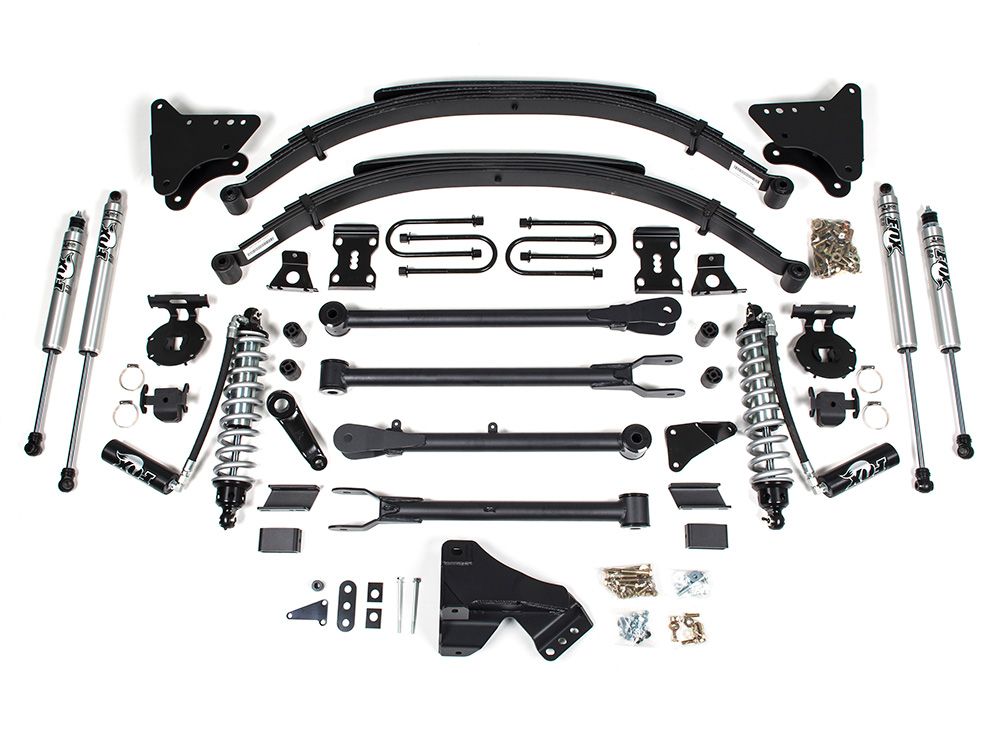

This premium BDS 590F 4 inch for the Ford F350 4wd truck features a 4-link conversion system (replaces factory radius arms) and Fox 2.5 Factory Series Remote Reservoir coil-overs that replace the factory coil springs.  This combination of suspension upgrades will greatly improve drivability, performance and strength. The heavy duty 1/4" thick steel frame mounted 4-link brackets bolt into factory holes to allow the four massive tubular control arms to be installed. These arms are build from 2" OD x .250" wall tubing with large greaseable bushings. 4-link design optimizes the front suspension geometry and reduces caster change through wheel travel to less than 1-degree. The Fox 2.5 factory series remote reservoir coil-overs give superior dampening capabilities and fade free performance when your blazing a trail on the harshest of terrains.

Also include is a forged drop pitman arm and front track bar relocation bracket to correct steering and track bar angles as well as to center the axle under the vehicle. Front bump stop extensions, sway bar drops, and brake line relocation brackets round out the front of this system. In the rear, this kit lifts and level the stance using your choice of a replacement rear lift block or Glide-Ride leaf springs. The leaf springs use a 5-leaf design with built in overload leaf to assist when carrying heavy loads. New black e-coated U-bolts, brake line brackets and Fox 2.0 performance gas shocks are supplied to round out the rear.

Features and Benefits:

  • Allows for use of 35 inch tires
  • Premium Quality Components
  • Fox 2.5 Remote Reservoir Coil-Overs for superior dampening and ride comfort
  • 4-Link Control Arms greatly improve drivability and performance
  • Fox 2.0 Performance Shocks
  • Forged drop pitman arm to maintain proper steering angles
  • Front track bar bracket keeps front axle centered
  • Made in the USA
  • Best Quality and Engineering in the Industry
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 9¬†Hours
  • Fits a 35 inch x 12.5 inch tire w/ 17 x 9 and 4.5 inch back spacing
  • Fits a 35 inch x 12.5 inch tire w/ 18 x 9 and 4.5 inch back spacing
  • Fits a 35 inch x 12.5 inch tire w/ 20 x 9 and 4.5 inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leaf's do not apply to rear leaf spring equipped systems).
  • If equipped with 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
  • Although extremely rare, front and/or rear driveline vibration may occur.
  • If equipped with rear sway bar, #123009 required.
  • U-bolts will not work on dually.
  • Vehicle Fitment
    MakeFord
    ModelF350
    Year Fitment2016, 2015, 2014, 2013, 2012, 2011
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number590F
    Item Numberbds_590f
    Product LineLift Kits
    Lift Height4 inch
    EngineDiesel
