2-3" 2011-2019 GMC Sierra 2500HD/3500HD 4WD & 2WD Fox CoilOver Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 723FDSC
As low as $4,640.57 Regular Price $5,156.19

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

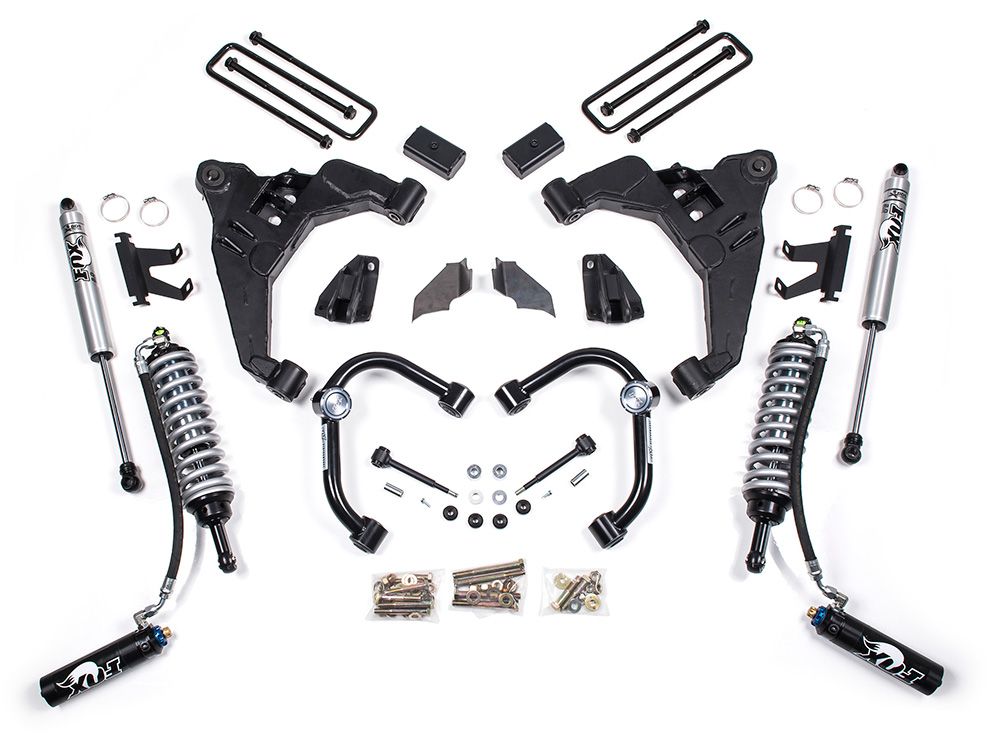

The BDS 723FDSC 2-3" lift kit for the 2011 thru 2019 GMC Sierra 2500HD and 3500HD trucks is an amazing suspension upgrade that allows for larger diameter tires, but more importantly greatly improves suspension performance by replacing the factory torsion bars with Fox 2.5 Factory Series Remote Reservoir Coil-Overs.  These coil-overs give much improved dampening for the harshest terrains off-roading while maintaining a very comfortable ride on your daily commute.  Using DSC (dual speed compression) adjustment technology these coil-overs ride can be adjusted with a simple turn of the dial to fine turn how smooth or stiff you want your truck to ride.

To improve strength and travel new heavy duty upper and lower control arms are included in this kit. The arms utilize premium Moog brand ball joints and factory style rubber bushings for smooth, quiet operation and superior durability when compared to arms with uni-balls, poly bushings or heims. Also included for the end are front differential relocation brackets to correct CV axle operating angle to optimize CV performance.  New sway bar end links correct the front sway bar angle to eliminate binding.

A simple block and u-bolt lift the rear to maintain factory ride quality.

Top Features

  • Replaces factory torsion bars with Fox 2.5 Factory Series Coil-Overs
  • Greatly improves dampening, handling and performance
  • DSC Technology for adjustable ride quality with a turn of a dial
  • Allows for use of up to 35 inch tires
  • Premium Quality Components
  • Heavy duty upper & lower control arms with factory rubber bushings
  • Extended Sway Bar End Links
  • Made in the USA
  • Best Quality and Engineering in the Industry
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8 Hours

Tire & Wheel Combinations

  • 305/55R20 w/20 x 9 and 5-5.5" back spacing
  • 35x12.50R20 w/ 20 x 9 and 5-5.5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.

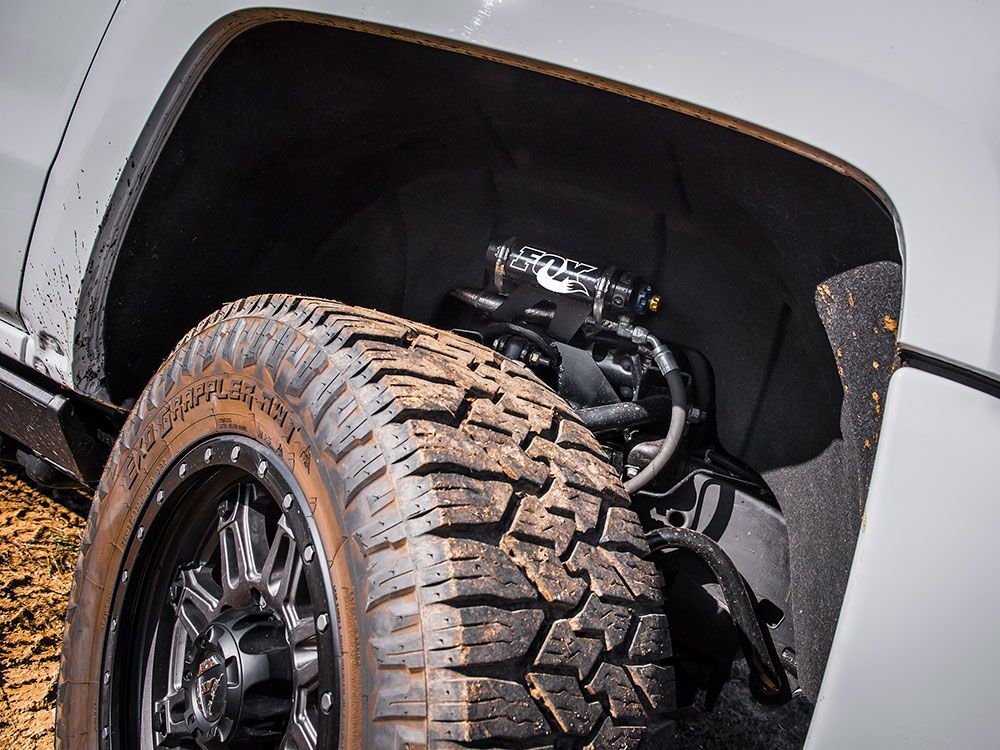

Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
BSD Upper Control Arms
These included high strength 1.5" OD x .120 wall tubular upper control arms feature MOOG premium ball joints, clevite rubber bushings (more durable than poly) and an indexed ball joint cup for more wheel travel.
Important Notes- Minor metal trimming may be required with 35x12.50R20 on 20x9 w/5-5.5" BS
- Requires minor welding
- Coilover designed for diesel trucks, can be used on gas engine trucks by adjusted preload to get ride height within 2-3" of lift using spanner wrench #129600
Vehicle Fitment
MakeGMC
ModelSierra 2500HD, Sierra 3500HD
Year Fitment2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number723FDSC
Item Numberbds_723fdsc
Product LineLift Kits
Lift Height3 inch
