4" 2015-2019 Chevy Suburban 1500 / Tahoe 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS733h
$2113.42
- +
2113.42

4" 2015-2019 Chevy Suburban 1500 / Tahoe 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS733h
From $2,113.42 Regular Price $2,224.65

4" 2015-2019 Chevy Suburban 1500 / Tahoe 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS733h
From $2,113.42 Regular Price $2,224.65


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

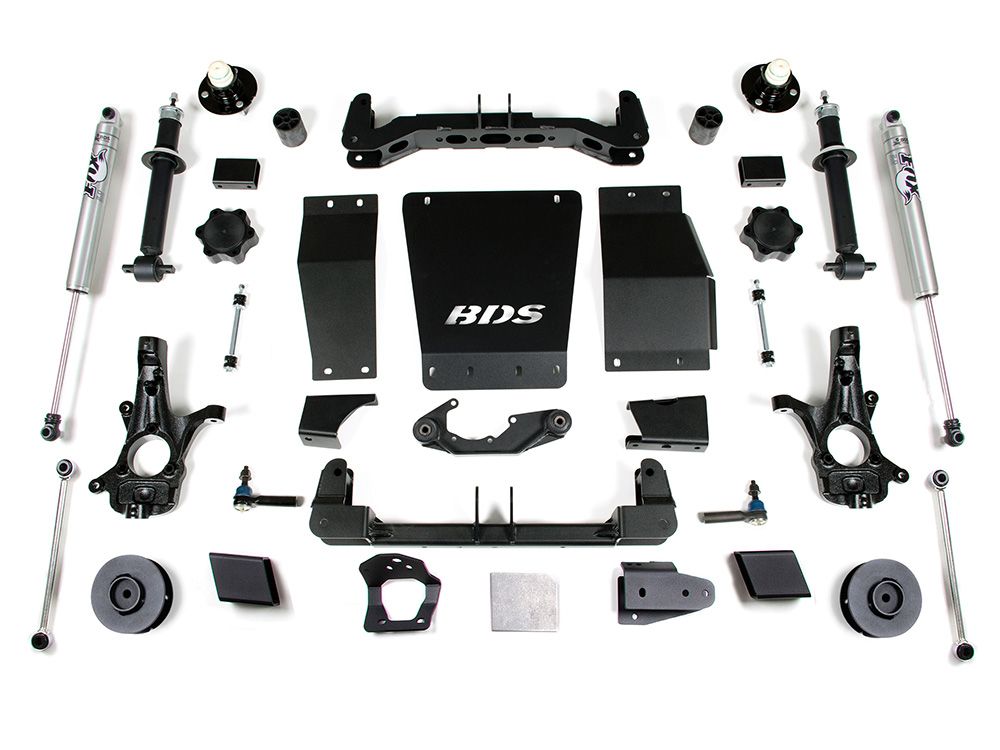

This BDS Suspension BDS733H 4 inch lift kit for the Chevy Suburban 1500 and Tahoe is an excellent suspension upgrade that will allow for use of up to 33 inch diameter tires and give your vehicle an aggressive off-road look. Included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles keep proper steering angles. A multipoint differential relocation kit and CV spacers securely reposition the front differential to correct CV axle angle and allow for the use of the stock front driveshaft. In place of the factory struts a pair of high pressure gas struts are supplied for improved ride quality and off-road dampening. Also included for the front are heavy duty tie rod ends, longer sway bar links, and brake line brackets.

In the rear a pair of 3" coil spacers are available to lift and level the stance. Rear suspension geometry is corrected using a pair of heavy duty adjustable upper control arms along with a track bar relocation bracket and support brace, and longer sway bar links.

Top Features

  • 4inch front lift / 3 inch rear lift, for level stance
  • Allows for use of 33 inch tires
  • Premium Quality Components
  • Upgrade Fox 2.0 Performance Rear Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Made in the USA
  • Best Quality and Engineering in the Industry
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8 Hours

Tire and Wheel Combinations:

  • 32 inch x 12.5 inch w/ 17 x 9 and 4.5 inch back spacing
  • 33 inch x 12.5 inch w/ 18 x 9 and 5 inch back spacing
  • 33 inch x 12.5 inch w/ 20 x 9 and 5.75 inch back spacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes- Will not work on auto-ride or magneride equipped vehicles.
- Strut compressor required for installation.
- Frame bracket modification and welding required.
- 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
Vehicle Fitment
MakeChevy
ModelSuburban 1500, Tahoe
Year Fitment2019, 2018, 2017, 2016, 2015
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS733h
Item Numberbds_bds733h
Product LineLift Kits
Lift Height4 inch
