3" 2007-2017 Jeep Wrangler JKU 4wd Pathfinder Lift System by Carli Suspension Brand: Carli Suspension | SKU: CS-JKU-PF25-07
$5185
- +
5185

3" 2007-2017 Jeep Wrangler JKU 4wd Pathfinder Lift System by Carli Suspension

Brand: Carli Suspension | SKU: CS-JKU-PF25-07
$5,185.00

3" 2007-2017 Jeep Wrangler JKU 4wd Pathfinder Lift System by Carli Suspension

Brand: Carli Suspension | SKU: CS-JKU-PF25-07
$5,185.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply



View all Options Available for this Kit

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-JKU-PF25-07 3 inch Pathfinder lift system for the Jeep Wrangler JKU 4wd models is a premium lift kit that will lift your vehicle enough to fit up to 35 inch x 12.5 inch tires. It is perfect for Wrangler owners wanting high performance for off-roading.

Featured in this lift system are 3 inch lift front coil springs that have a slightly reduced multi rate for better ride comfort along with 2.5 rear mult-rate coil springs that offer a great ride while supporting a load. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Features & Benefits:

  • 3 inch front lift / 2.5 inch rear lift
  • Premium lift kit optimized for on-road road quality, towing and slow to mid speed off-roading
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • Rear multi rate coil springs - with reduced multi rate to improve ride quality and support a load
  • King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir and exclusive 17-4 stainless steel shaft that is machined and polished
  • Remote reservoir increases oil capacity for better heat management and better overall performance
  • Front Travel = 10.1" / Rear Travel = 10.2"
  • Adjustable track bars - keeps front axle centered and dampens vibrations. Uses FK heim joints
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 35 inch x 12.5 tires

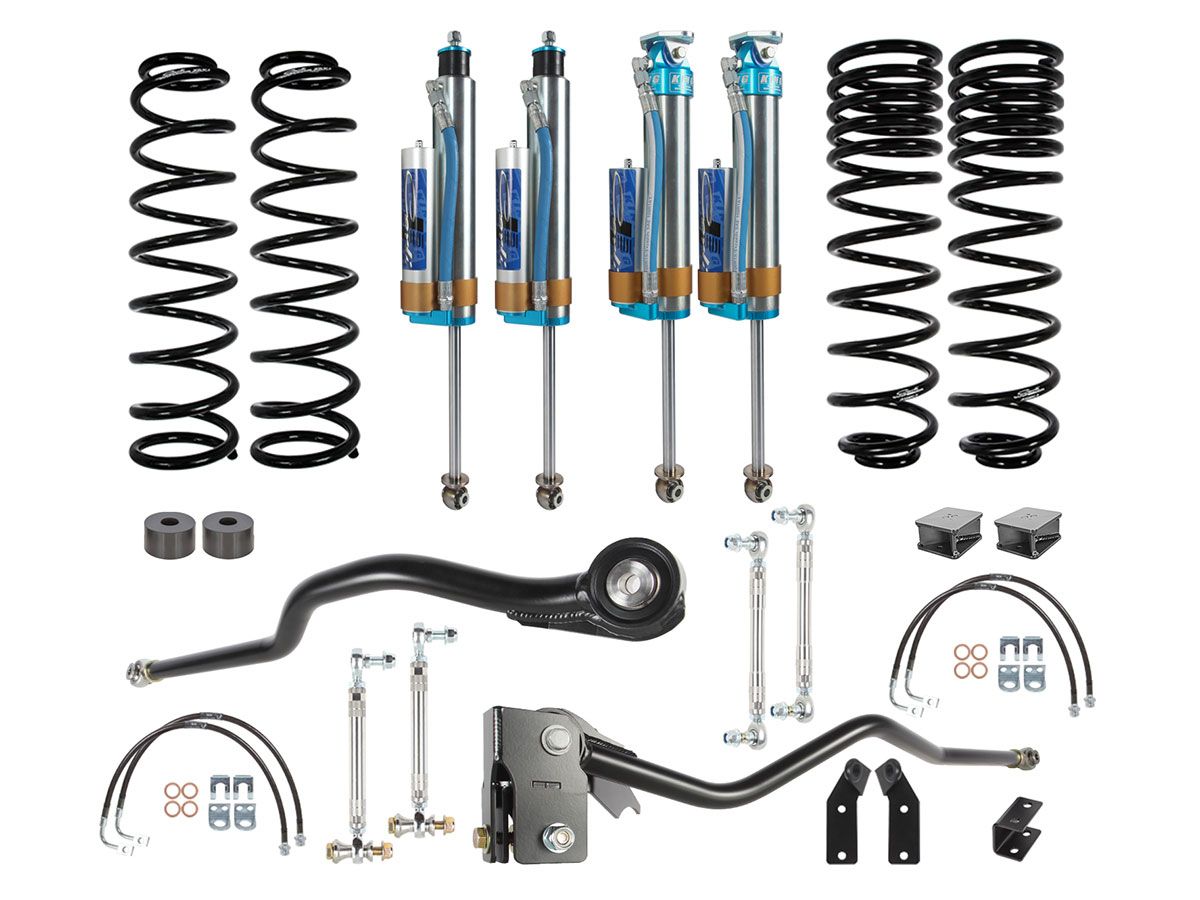

Components Included:

  • CS-JK25LRC-F-07: 3" Front Linear Rate Coil Springs
  • CS-JK25MRC-R-07: 2.5" Rear Mult Rate Coil Springs
  • CS-JKU-PF25SPKG-25-07: Carli Tuned King 2.5 Remote Resi Front and Rear Shocks
  • CS-JATB-07-F: Front Adjustable Track Bar
  • CS-JATB-07-R: Rear Adjustable Track Bar
  • CS-JATB-07-R-RISER: Rear Adjustable Track Bar Riser
  • CS-JEL-07-F: Front Sway Bar End Links
  • CS-JEL-07-R Rear Sway Bar End Links
  • CS-JBBLKIT-07 Extended Brake Lines, Guides and E-Brake Drop
  • CS-JBSF-07-TALL: Front Bump Riser, tall
  • CS-JBSR-07: Rear Bump Riser

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Available Options

Differential Guard
Wrangler JK 2007-2017 Jeep 4WD (Dana 44) Front or Rear Differential Guard by Carli Suspension

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • Will fit front or rear
  • Fits Dana 44 axle only
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
Read More

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • Will fit front or rear
  • Fits Dana 44 axle only
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
$195
Control Arms
Wrangler JKU 2007-2017 Jeep 4WD (w/3" Suspension Lift) Control Arm Kit by Carli Suspension

Carli Suspension's CS-JKCA-07-KIT Front and Rear Control Arm Kit for the Jeep Wrangler JKU is designed for models lifted 3 inches to correct caster and improve articulation capability.

These arms are crafted from high-quality US Steel and feature reinforced joint housings with strategically positioned zerk fittings, making the greasing process effortless.

The joints themselves are engineered in-house, featuring precision-machined 17-4 Stainless Ball-centers that pivot within our exclusive urethane races. These races incorporate built-in grease channels, ensuring uniform grease distribution, prolonging the lifespan of the joints, and ensuring quiet operation.

To prevent any unwanted rattling or rotation while preserving articulation capability, rubber joint washers, also known as wobble stoppers, are preinstalled at necessary points.

With these arms, you can simplify your setup. Pair them with our recommended 35″ tires (or 37″ with rear pinch weld trimming), and you'll achieve corrected caster angles. Your front and rear suspension will move smoothly without binding, thanks to the friction-free spherical joints, enhancing your driving experience.

  • Corrects caster on 3" suspension lift kits
  • Friction free, serviceable 17-4 Stainless Joints
  • Gusseted Joint Housings
  • Zerk fittings for ease of servicing
  • Fixed length
  • Includes 8 arms: Front and rear, uppers and lowers
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-JKCA-07-KIT Front and Rear Control Arm Kit for the Jeep Wrangler JKU is designed for models lifted 3 inches to correct caster and improve articulation capability.

These arms are crafted from high-quality US Steel and feature reinforced joint housings with strategically positioned zerk fittings, making the greasing process effortless.

The joints themselves are engineered in-house, featuring precision-machined 17-4 Stainless Ball-centers that pivot within our exclusive urethane races. These races incorporate built-in grease channels, ensuring uniform grease distribution, prolonging the lifespan of the joints, and ensuring quiet operation.

To prevent any unwanted rattling or rotation while preserving articulation capability, rubber joint washers, also known as wobble stoppers, are preinstalled at necessary points.

With these arms, you can simplify your setup. Pair them with our recommended 35″ tires (or 37″ with rear pinch weld trimming), and you'll achieve corrected caster angles. Your front and rear suspension will move smoothly without binding, thanks to the friction-free spherical joints, enhancing your driving experience.

  • Corrects caster on 3" suspension lift kits
  • Friction free, serviceable 17-4 Stainless Joints
  • Gusseted Joint Housings
  • Zerk fittings for ease of servicing
  • Fixed length
  • Includes 8 arms: Front and rear, uppers and lowers
  • Carli provides a Limited Lifetime Warranty
$1995
Vehicle Fitment
MakeJeep
ModelWrangler JK
Year Fitment2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-JKU-PF25-07
Item Numbercar_cs-jku-pf25-07
MPN(UPC)883584146674
Product LineLift Kits
Lift Height3 inch
