9" 1976-1977 Ford F150 4WD Deluxe Lift Kit by Jack-It

Brand: Jack-It | SKU: FD160DX
$1,869.64

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

These kits were designed to give superior performance from highway handling and towing as well as excellent off road stability. This is achieved by using a combination of coil springs, radius arm drop brackets with C bushings, adjustable drag link, and a track bar. Coil springs are pre-settled to reduce height changes. C bushings and a radius arm drop bracket will correct the negative caster degree angle, which is one of the biggest problems with the F150. An adjustable drag link will correct several problems that increased drag link angles can cause. A track bar will prevent 'Dog Track', this is where on one side of the truck, the tires will stick out further than on the other side. These are the most complete kits on the market. Purchase a deluxe or premium to give your truck all the extras it needs for a superior ride.

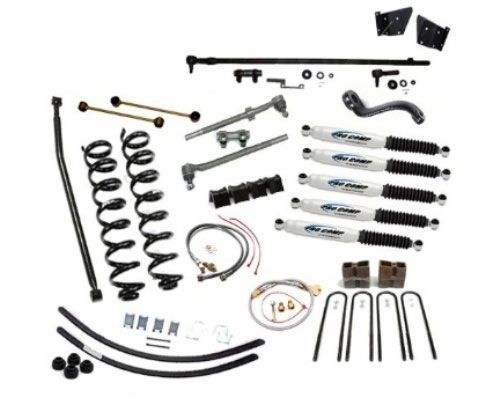

Deluxe Kit Includes:
- 'C' Bushings
- Radius Arm Bushings
- Tie Rod Assembly
- Pro Comp Steering Stabilzer w/ Boot
- (4) Pro Comp Shocks w/ Boots
- Front Skyjacker Coil Springs
- U-Bolts
- Front and Rear Brake Lines
- Rear BDS Suspension Add-a-Leafs
- Sway Bar Extensions
- Adjustable Track Bar
- Adjustable Drag Link
- Radius Arm Drop Brackets
- Brake Line Relocation Bracket
- Pitman Arm

Important NotesDrive Shaft will need to be lengthened. Sway bar bushings not included.
Vehicle Fitment
MakeFord
ModelF150
Year Fitment1977, 1976
2WD/4WD4WD
Tech Specs
ManufacturerJack-It
Manufacturer Part NumberFD160DX
Item NumberFD160DX
Product LineSuspension Lift Kit
Lift Height9 inch
