Ford F250/F350 Super Duty 4WD 2005-2022 Front Radius Arm Upgrade Kit for over 2-4" lifts by BDS Suspension

Brand: BDS Suspension | SKU: 123251 / 123901
As low as $614.95

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

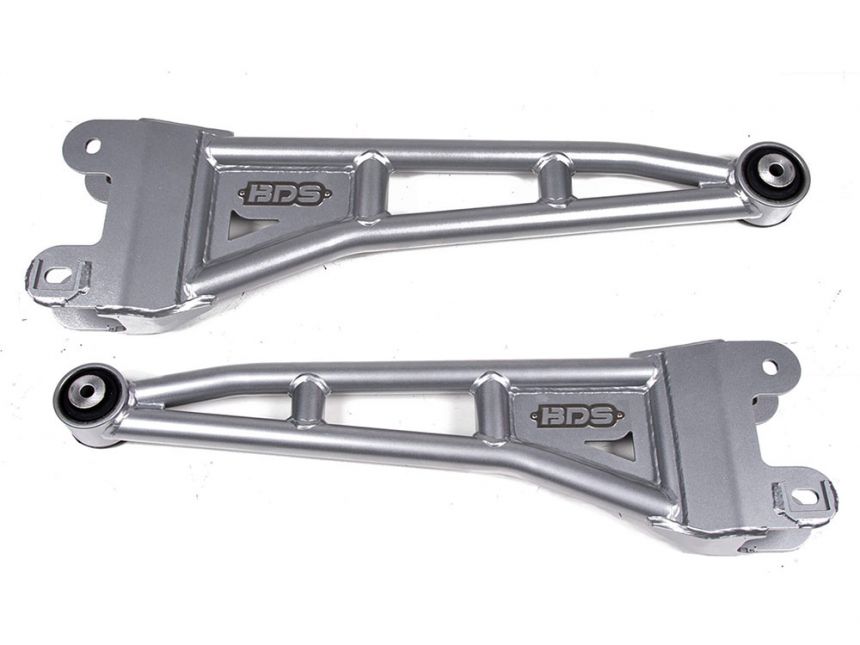

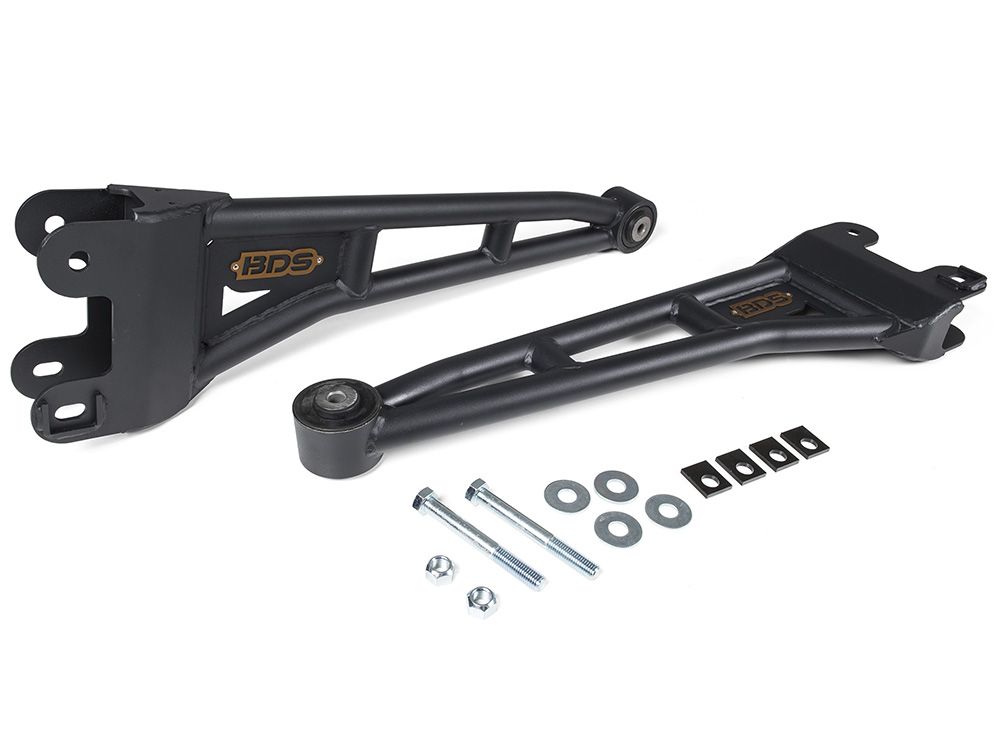

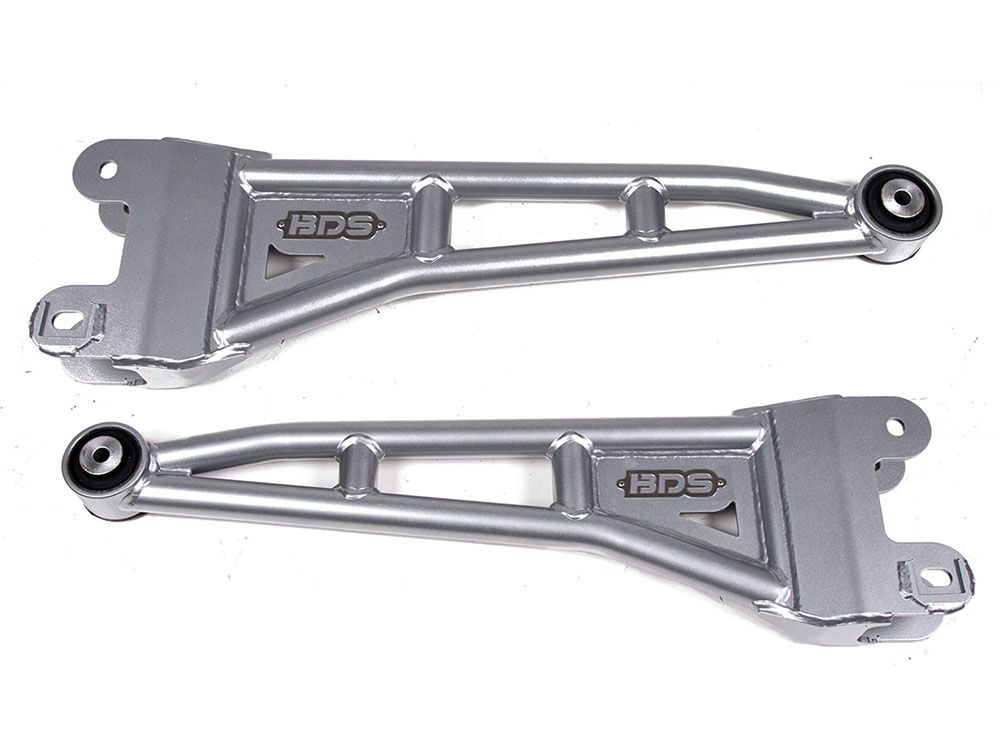

This BDS 123251 / 123901 Radius Arm upgrade kit for the Ford F250 / F350 is designed to correct the suspension geometry on lifted models. These big HD radius arms are built to handle use and abuse demanded out of most trucks on the market. Not only do these radius arms hold up to the abuse but they surpass the factory radius arms and support gussets. The arms are formed inward, allowing for additional tire clearance, providing the ability to install oversized tires. The direct bolt on design promotes a quick and easy installation.

Features and Benefits:

  • Heavy duty tubular construction
  • Designed to correct suspension geometry on 2 inch to 4 inch lifted models
  • Helps to correct caster angle
  • Allows for larger tires to be installed
  • Available in Black or Silver finish
  • Direct bolt on design

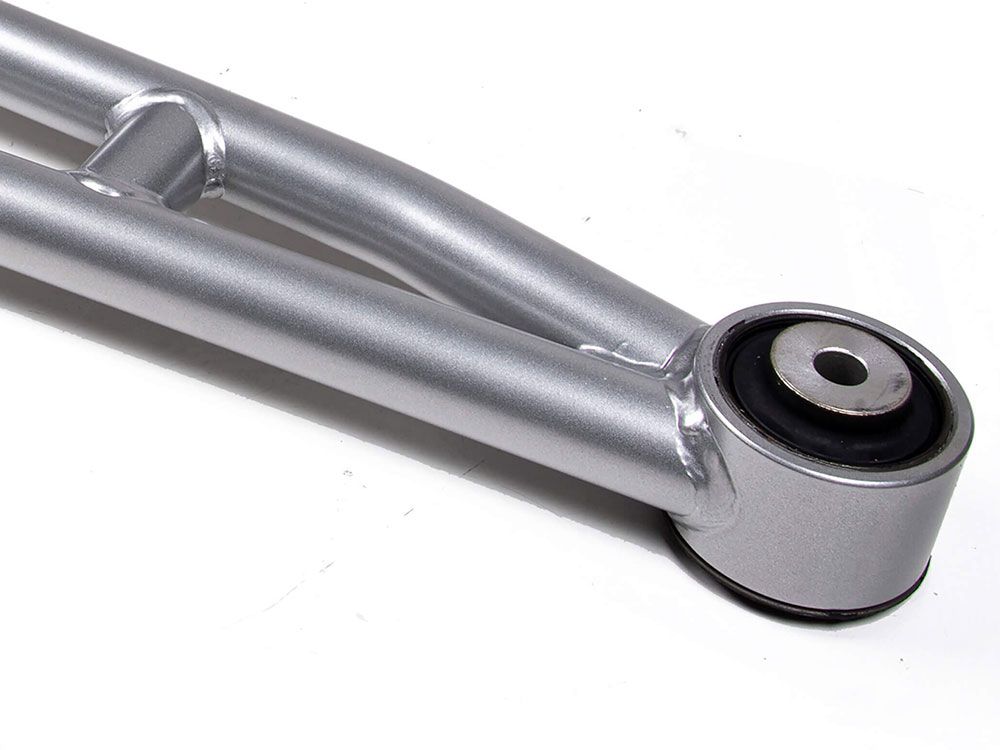

  • Oversized rubber bushings to better isolate road noise and vibration harshness
  • Compatible with most lifts and leveling kit on the market
Important Notes1. These arms cannot be used with radius arm drop brackets at 2 inch and 4 inch heights. Therefore, if someone has a current BDS radius arm drop bracket kit, they will need to remove the drop bracket to install these arms.
2. For those with 6" of front lift, the radius arms can be installed with the drop brackets as a direct swap for the factory radius arms - only caution would be that the caster may need to be checked if ball joint cams are installed.
Vehicle Fitment
ModelF250, F350
Year Fitment2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number123251 / 123901
Item Numberbds_123251_123901
Product LineRadius Arms
SpecialFree Shipping!
