6.5" 1984-2001 Jeep Cherokee XJ 4WD Long Arm Suspension Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1433H / BDS1433FS
$2695.48
- +
2695.48

6.5" 1984-2001 Jeep Cherokee XJ 4WD Long Arm Suspension Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1433H / BDS1433FS
From $2,695.48 Regular Price $2,837.35

6.5" 1984-2001 Jeep Cherokee XJ 4WD Long Arm Suspension Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1433H / BDS1433FS
From $2,695.48 Regular Price $2,837.35


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

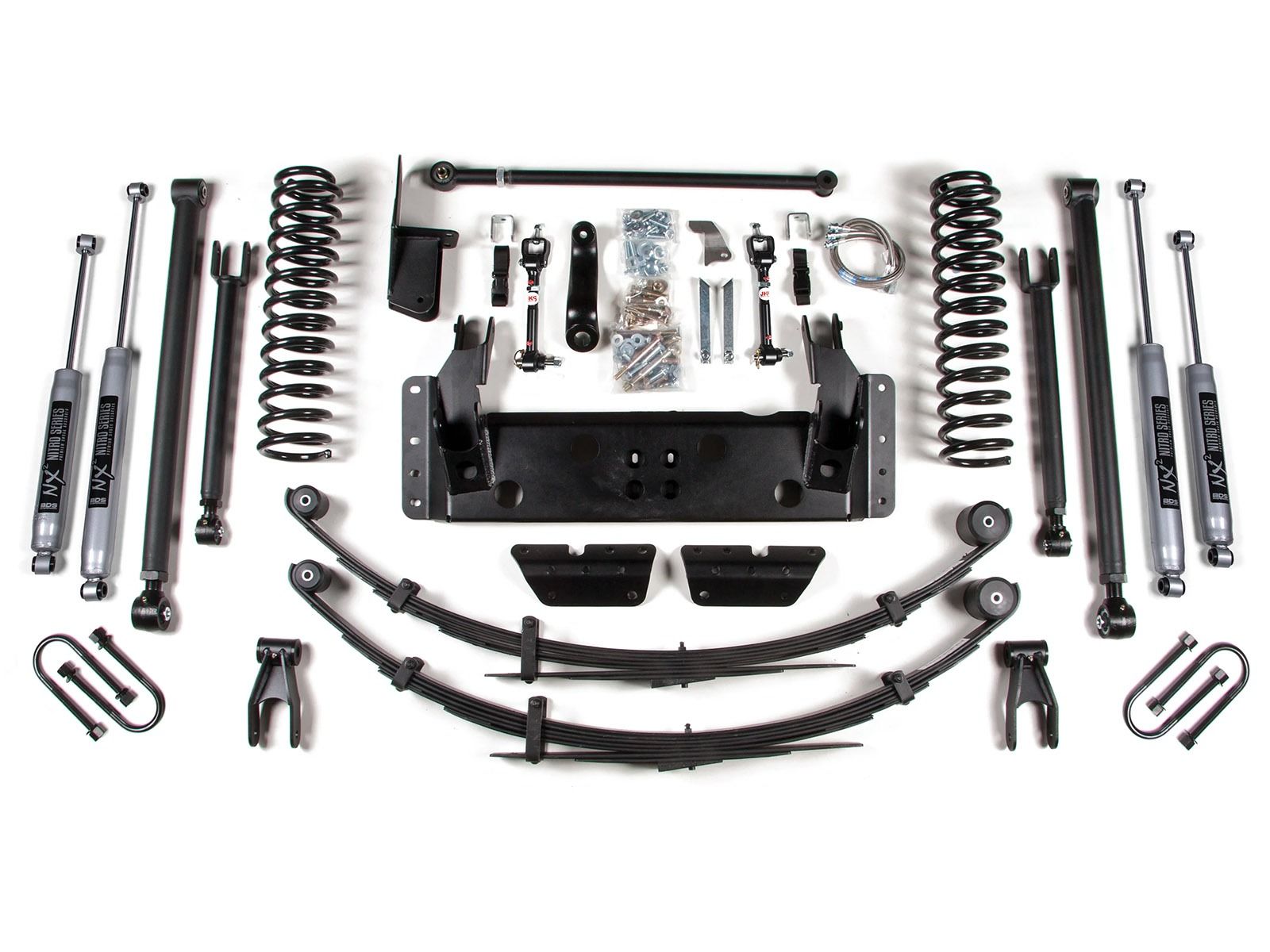

The BDS Suspension BDS1433H / BDS1433FS 6.5-inch premium coilover suspension lift kit for the Jeep Cherokee XJ will allow for the fitment of up to 33-inch diameter tires for a great off-road look. The BDS 6.5" XJ Long Arm system provides the best on and offroad capability you could ask for and is designed to clear 33x12.50s with room to flex. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimal handling and minimized road forces transmitted ultimately to your seat for the best ride. To give you some idea, the lower arms are nearly bottomed out at just over 32" and the uppers at just over 28". This is about double the length of the factory control arms!

Although this XJ long-arm system makes for a great daily driver, the true abilities of this system won't be appreciated until you hit the rocks, dirt, and mud. The 4-Link design maintains better axle control through wheel travel than any radius arm system because the upper-to-lower link relationship is not fixed. Yet, it is tuned for optimum performance based on link length and operating angles. The control arm geometry is set up with the massive belly pan that incorporates the link mounts and is built to smash rocks. No welding to the uni-body is required nor recommended.

BDSPro-RideCoil Springs, built from 5160 spring steel & pre-set to withstand full coil bind with a tuned rate to lift the front. The rear is lifted with new Glide-Ride Leaf Springs and extended greaseable shackles that let the springs flex.

This system also incorporates BDS Ultimate sway bar disconnects for quick, easy access to ridiculous wheel travel and stainless steel brake lines to handle it. Bump stop extensions are included to limit compression and keep the tires out of the fenders on the trail. A front adjustable track bar fits into the existing frame mount, so drilling the taper is unnecessary and will allow you to center the front axle accurately. An extreme drop pitman arm is provided to match the steering with/ the track bar angle.

Features and Benefits:

  • Long Arm Control Arms improve off-road performance
  • Front Adjustable Track Bar keeps axle centered
  • Glide-Ride Rear Leaf Springs replace worn factory springs
  • BDS NX2 Shocks or Fox 2.0 Performance Shocks
  • Estimated Install Time: 10 hours
  • Difficulty Leve (easy 1-5 complicated): 3
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA
  • Up to 33" x 12.50" w/15 x 8 and 4.5" back spacing
  • Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Vehicle Fitment
MakeJeep
ModelCherokee
Year Fitment2001, 2000, 1999, 1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1433H / BDS1433FS
Item Numberbds_bds1433h
Product LineLift Kits
Lift Height6.5 inch
