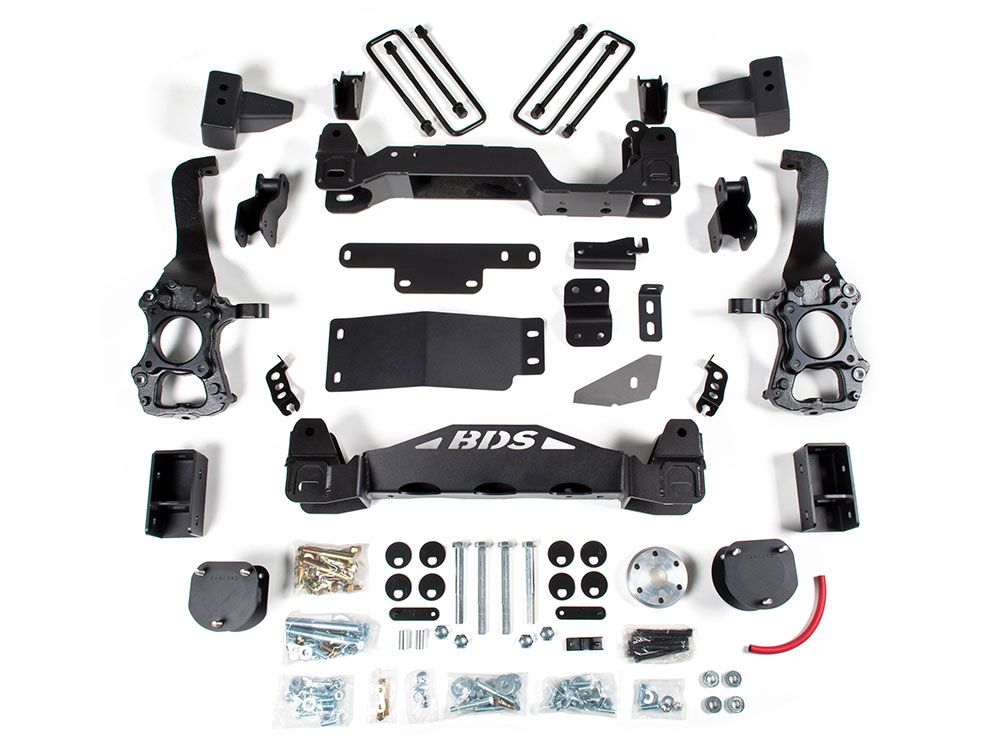

4" 2017-2018 Ford Raptor 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1542H
Special Price $2,117.20 Regular Price $2,187.57

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

This BDS Suspension 1542H 4 inch lift kit for the Ford Raptor 4wd models is an awesome upgrade for your trucks suspension and will allow for use of up to 37 inch tires.  This is done without sacrificing ride quality and handling.

Factory Fox coil-overs and shocks are retained by the use of relocation brackets. This maintains the Raptors high performance suspension. Utilizing a pair of one-piece laser cut 1/4" steel cross members, CNC-machined ductile iron steering knuckles, differential relocation brackets, heavy duty differential skid plate, upper strut mount spacers to retain the OE ride quality, bump stop extensions, sway bar relocation, new cam bolts, and billet aluminum driveshaft spacer. In the rear a 5'' offset pin block kit re-centers the rear axle in the wheel well and replacing the factory block to eliminate stacking blocks and level the stance of the truck.

Features and Benefits:

  • 1/4 Inch Steel High Clearance Cross members
  • Maintains factory Fox coil-overs and shocks
  • Factory aluminum skid plate is retained
  • Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Allows use of up 37 inch tires
  • Average Install Time: 8-10 hours
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • FMVSS No. 126 (ESC System) Compliant
  • Factory Protection Plus
  • Fits 37 inch x 12.5 inch tires w/ 18 x 9 and 5 inch back spacing
  • Fits 37 inch x 12.5 inch tires w/ 20 x 9 and 5 inch back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Download Instructions

Important Notes
  • Required frame bracket modification and welding
  • Stock wheels cannot be installed
  • 37x12.50 on 18x9 w/5" BS - check for proper tie rod end clearance
  • Vehicle Fitment
    ModelF150 Raptor
    Year Fitment2018, 2017
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1542H
    Item Numberbds_1542h
    Product LineSuspension Lift Kit
    Lift Height4 inch
