2.5" 2017-2019 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

As low as $1,659.40

Brand: BDS | SKU: 1543H


free shipping truck  FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Product Overview
More Information

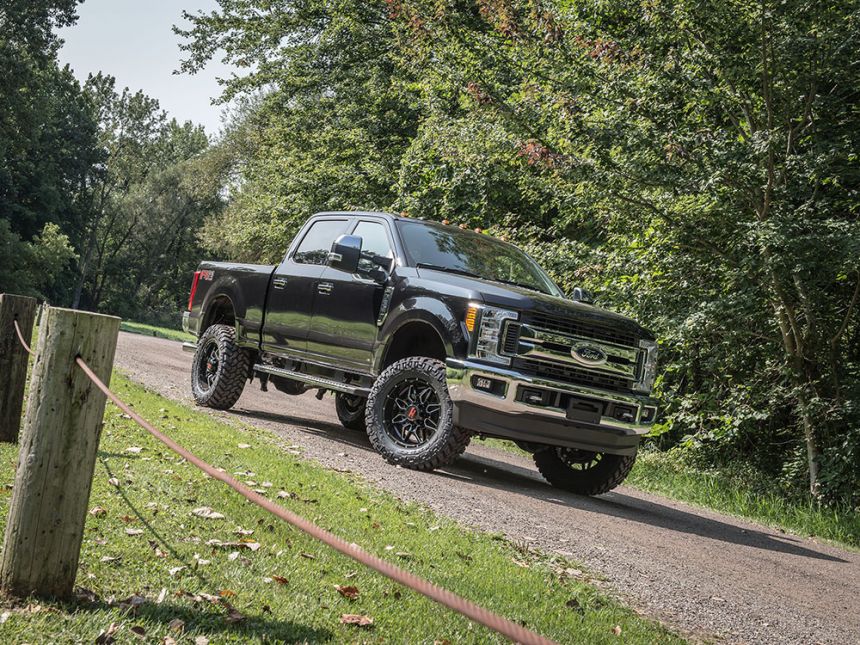

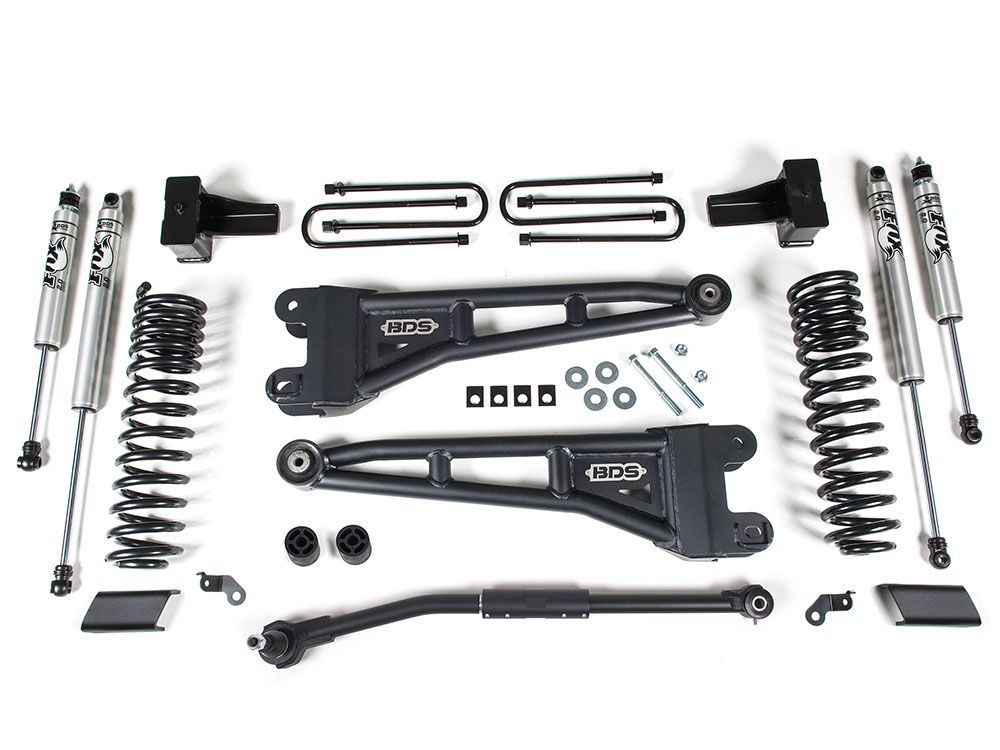

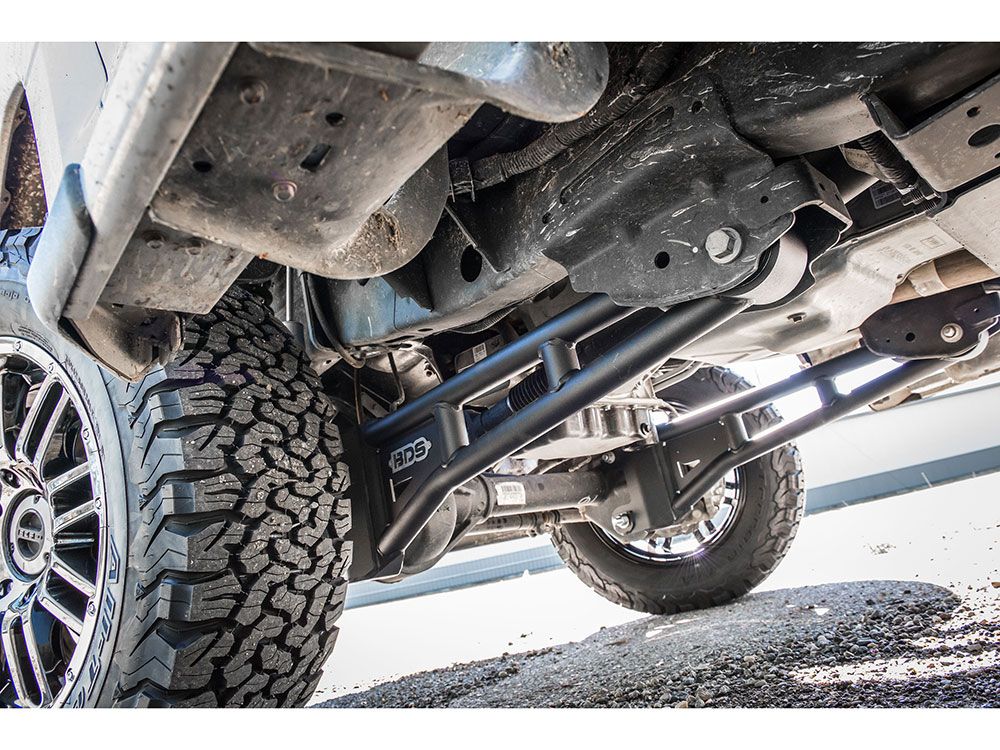

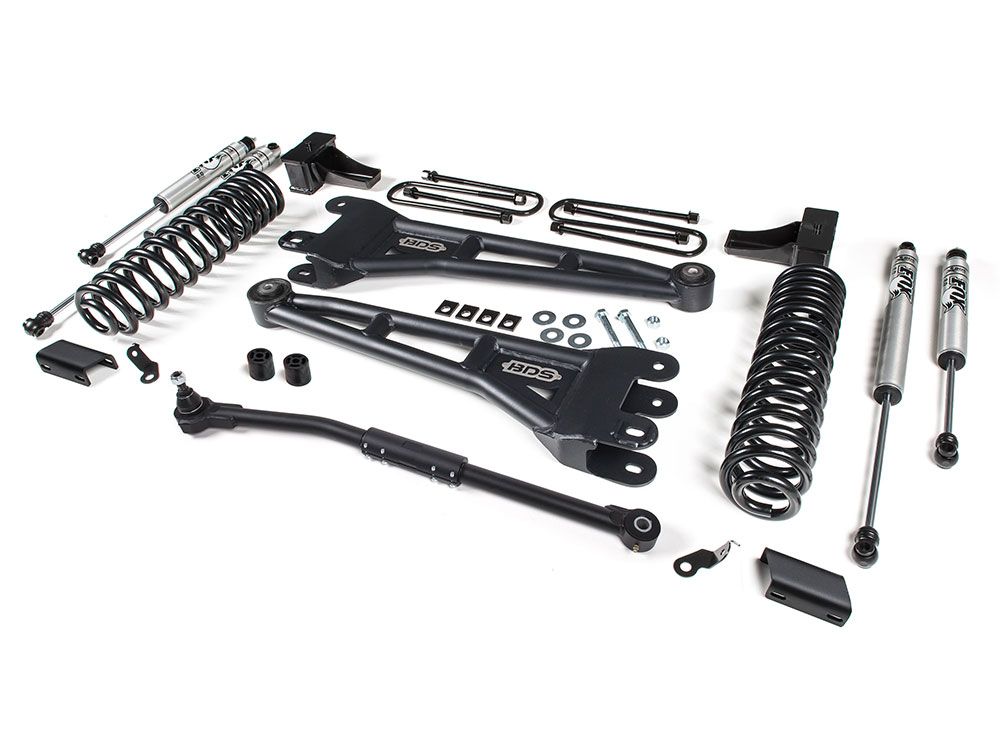

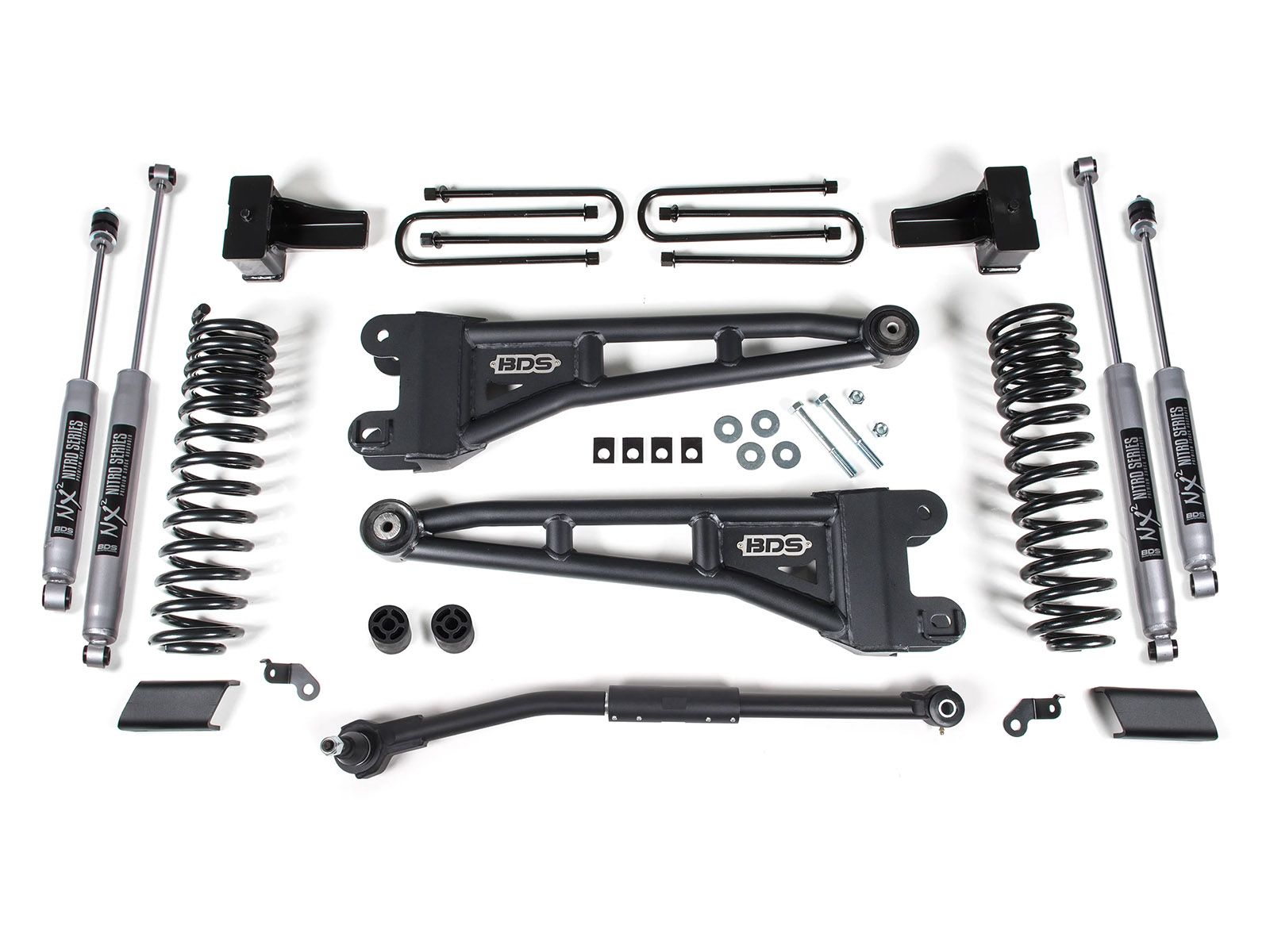

The BDS Suspension 1543H 2.5 lift kit is an great method to lift your Ford F250 / F350 to allow for use of up to 35 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS ProRide front coil springs lift the front end 2.5 inches while maintaining performance and ride quality. The front axle remains centered with the use a heavy duty adjustable track bar. Also included for the front suspension are a pair of sway bar relocation brackets.

In the rear the factory blocks are replaced by a pair of 4 inch lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts.

Top Features and Benefits

  • 2.5 inch ProRide Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • Adjustable front track bar to center axle
  • High clearance radius arms for maxium clearance
  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 35 inch tires
  • Average Install Time: 5 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • 35" x 12.50" w/17 x 9 and 4.5"-5" back spacing
  • 35" x 12.50" w/18 x 9 and 4.5"-5" back spacing
  • 35" x 12.50" w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Installation Instructions

1543H Instructions

Important Notes 1. Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
2. Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
3. Track bar mounting hardware requires torque spec of 405 ft-lbs .
Manufacturer BDS Suspension
Manufacturer Part Number 1543H
Item Number bds_1543h
Make Ford
Model F250, F350
Year Spans 2017,2018,2019
Lift Height 2 inch
Product Type Suspension Lift Kit
Engine Diesel, Gas
