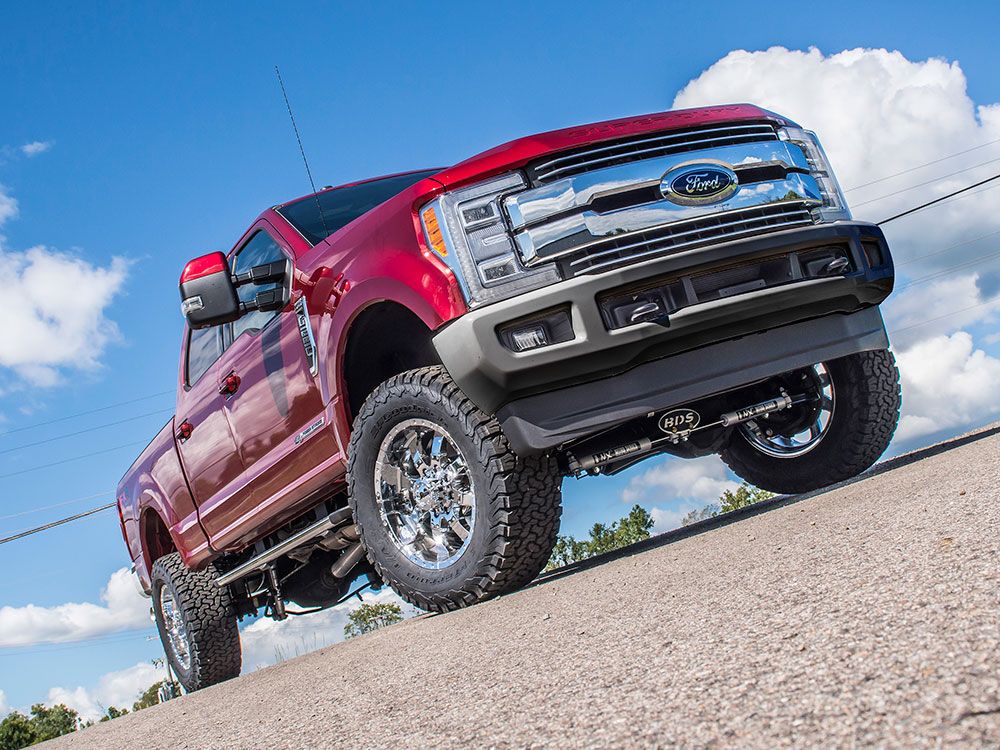

5" 2020-2022 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

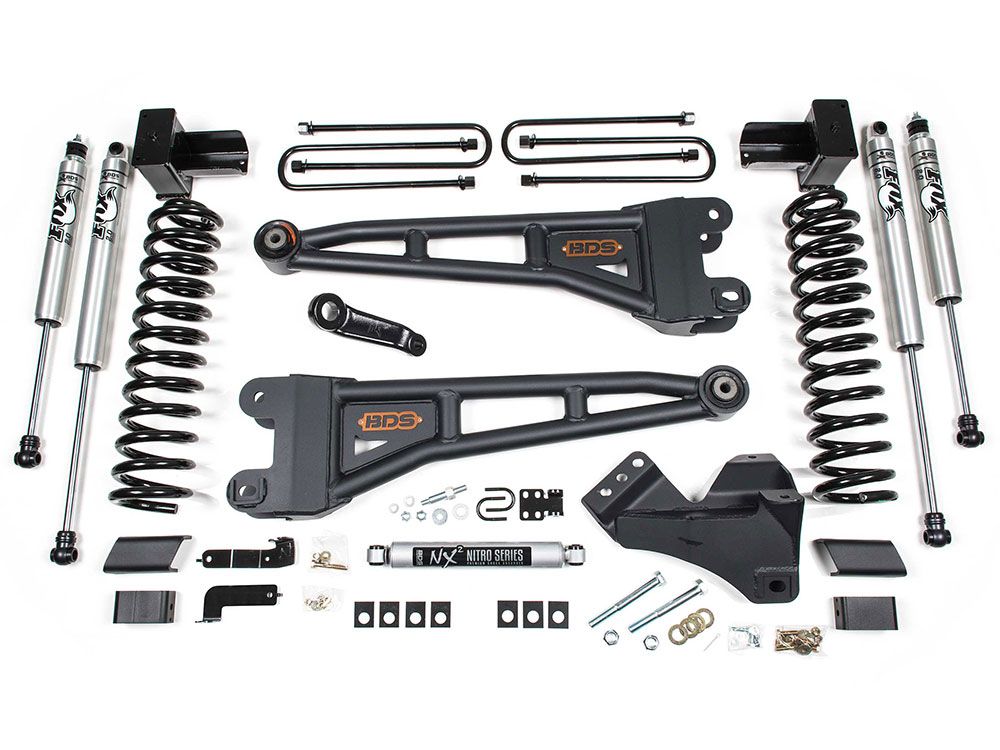

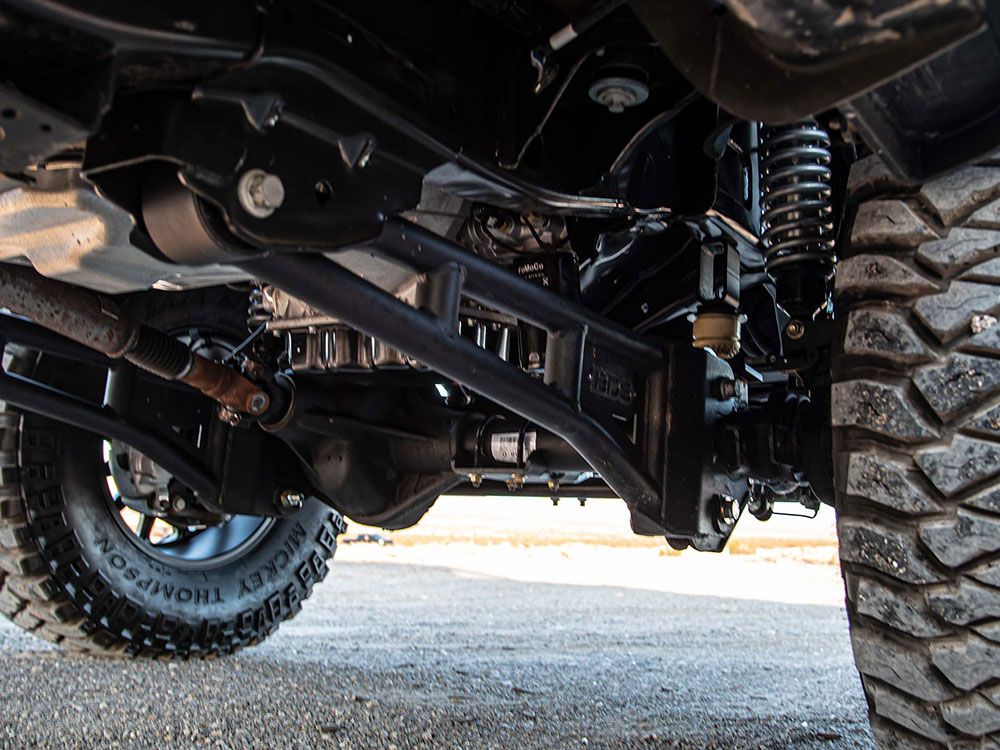

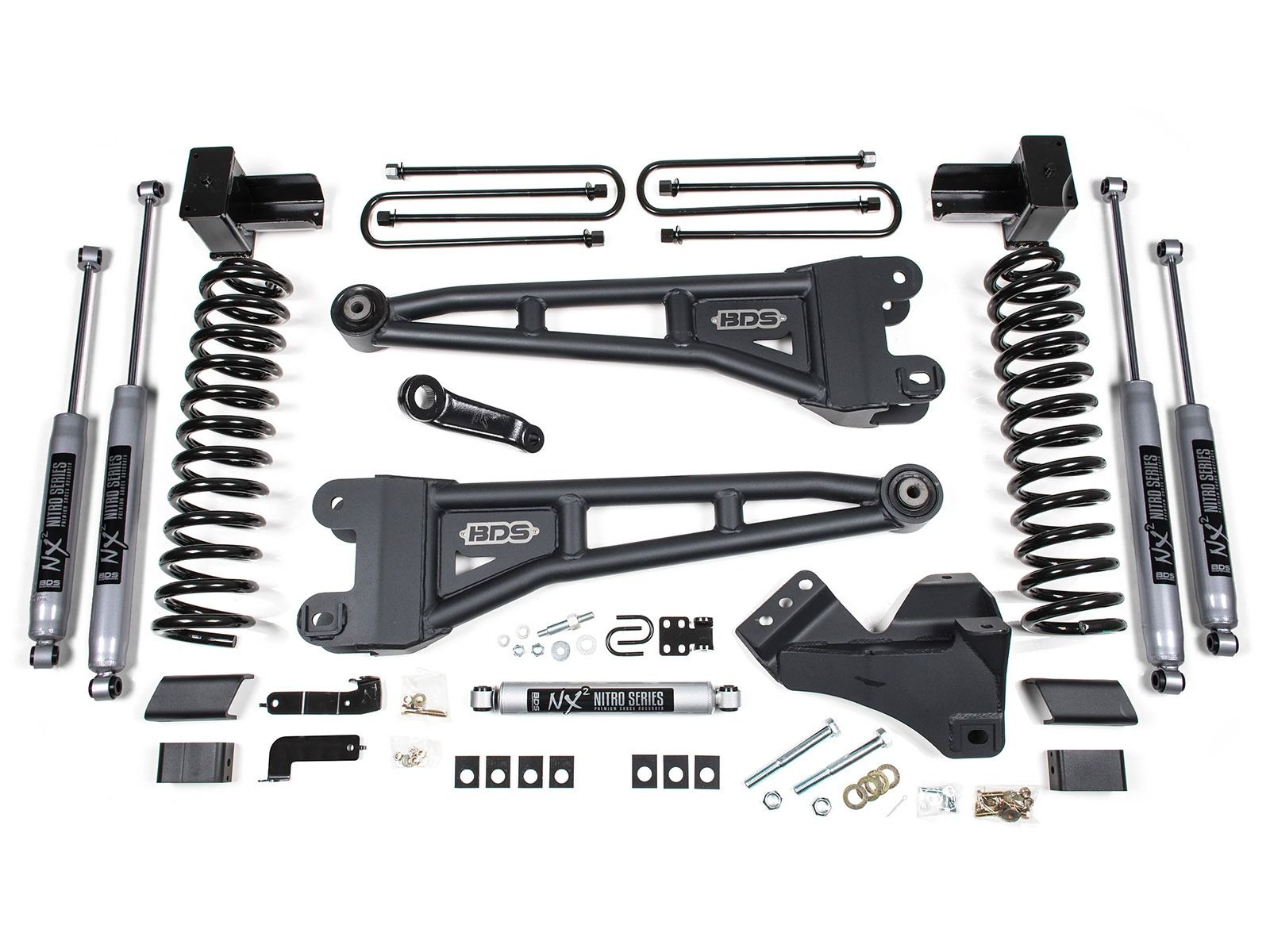

The BDS Suspension BDS1551H 5-inch lift kit is a great way to lift your Ford F250 / F350 to allow up to 37-inch diameter tires. These replacement arms are far superior to the factory-stamped steel units, built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. Featuring a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

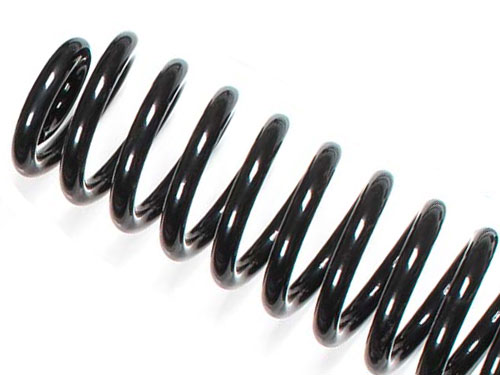

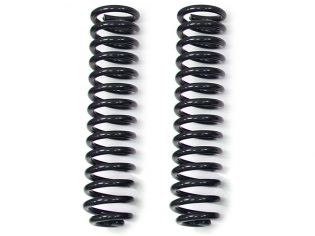

BDS Pro-Ride front coil springs lift the front end 5 inches while maintaining performance and ride quality. A forged drop pitman arm corrects steering angles, along with a supplied integrated drag link flip. The front axle remains centered with the use of a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by a pair of 4.5-inch lift blocks that feature integrated bump-stop wings and e-coated extended U-bolts.

You can choose BDS NX2 gas shocks (2-inch steel body), Fox 2.0 Performance Series IFP gas shocks (2-inch aluminum body), or 2.5 Performance Elite remote reservoir adjustable shocks (2.5-inch aluminum body) to improve ride quality and performance. Performance Elite shocks feature an aluminum 2.5-inch body and DSC adjusters to fine-tune from a soft to firm ride.

Features and Benefits:

• 5-inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose from BDS NX2 Nitro Gas (2-inch steel body), Fox 2.0 Performance (2-inch Aluminum body) or Fox 2.5 Performance Elite Shocks (2.5-inch Aluminum body, adjustable)
• Allows use of up to 37-inch tires
• Average Install Time: 6 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 37" x 12.50" tires w/17 x 9 and 4.5"-5" back spacing
• Fits 37" x 12.50" tires w/18 x 9 and 4.5"-5" back spacing
• Fits 37" x 12.50" tires w/20 x 9 and 4.5"-5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
