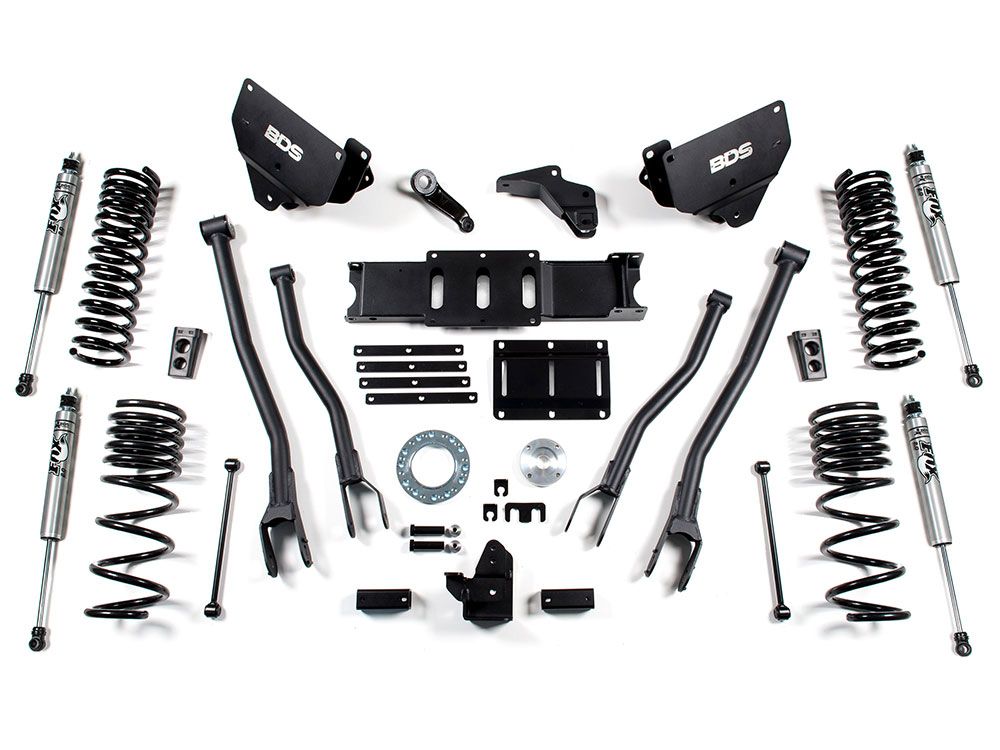

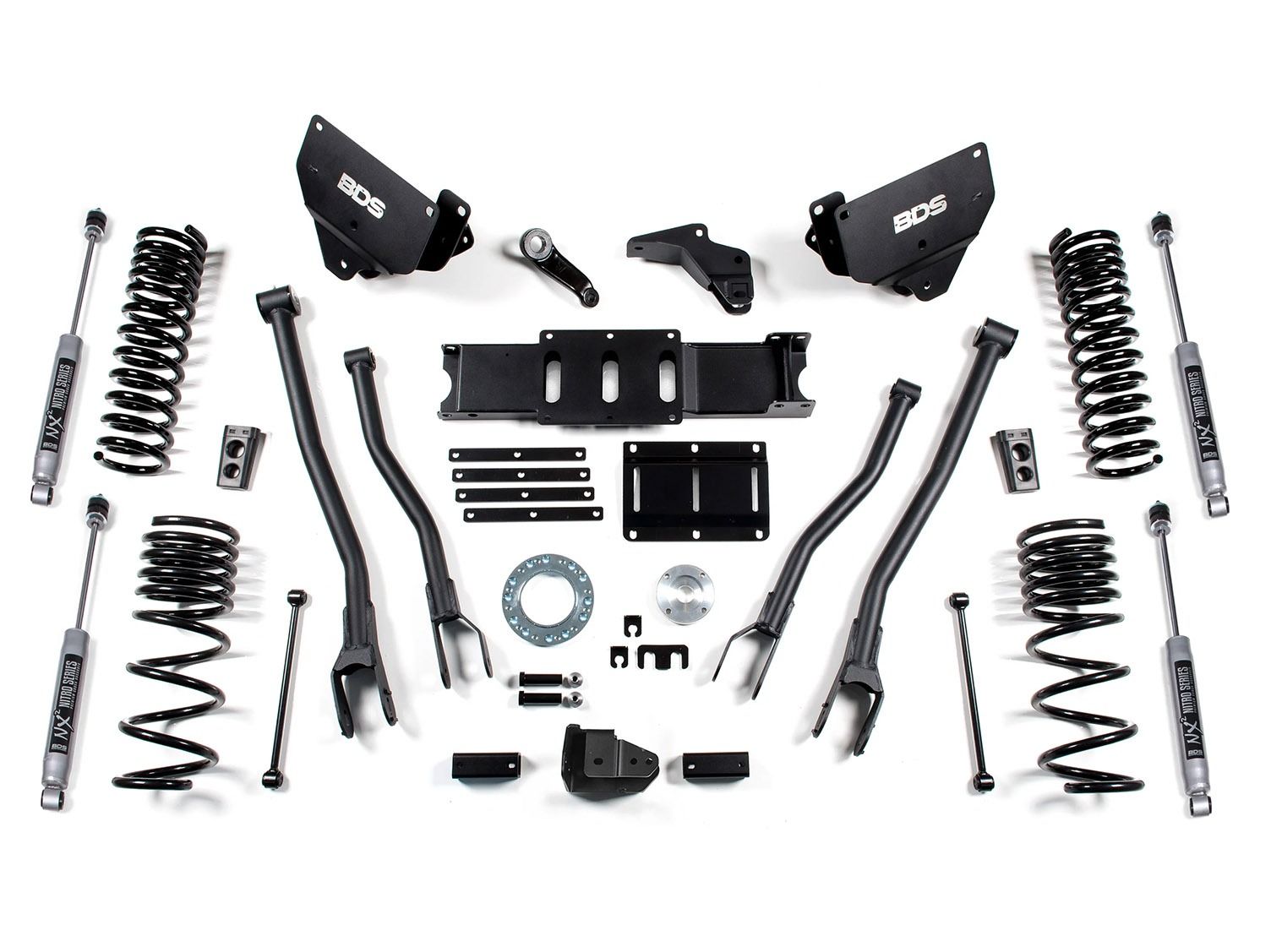

6" 2014-2018 Dodge Ram 2500 4WD (w/diesel engine) 4-Link Lift Kit by BDS Suspension

This BDS Suspension BDS1604H / BDS1604FS 6-inch 4-link lift kit for the 2014 through 2018 Dodge Ram 2500 is a premium lift kit that allows the use of up to 37-inch tires. The design starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required.

The new 4-Link brackets mount similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. As with our radius arm brackets, a minor amount of welding is required to install the threaded frame insert (1 per side). This insert is necessary to provide the most robust possible mount. The new control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and more controlled steering 'feel', especially in rough terrain when the suspension can travel and articulate.

The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders.

The rear lift is accomplished with new progressive rate coil springs. These new springs provide an amazing ride and are designed to stand up to any load the new 3/4 ton trucks were built to handle.

An axle mounted track bar relocation bracket repositions the rear track bar and centers the axle. Extended sway bar links keep the rear sway bar at the optimum operating angle. Replacement rear shocks round out the rear lift and provide that desired level stance.

Features and Benefits:

• Lifts vehicle 6 inch front / 5 inch rear
• Allows use of up to 37 inch diameter tires
• 4-Link upgrade improves handling
• Progressive Rate Front and Rear Coil Springs
• Forged Drop Pitman Arm
• Front and Rear Track Bar Relocation Brackets
• Average install time: 6 to 8 hours
• Choose from BDS NX2 or Fox 2.0 Performance Shocks
• Made in the USA using Premium Components
• No Fine Print Lifetime Warranty
• Fits 37 inch x 13.5 inch w/ 17 inch, 18 inch, 20 inch x 9 and 5.625 inch backspacing
• Fits 37 inch x 12.5 inch w/ 17 inch, 18 inch, 20 inch x 9 and 4.5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
