4" 2014-2018 Dodge Ram 2500 4WD (w/gas engine) Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1609H
$1421.64
- +
1421.64

4" 2014-2018 Dodge Ram 2500 4WD (w/gas engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1609H
From $1,421.64 Regular Price $1,450.65

4" 2014-2018 Dodge Ram 2500 4WD (w/gas engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1609H
From $1,421.64 Regular Price $1,450.65


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1609H / BDS1609FS 4-inch lift kit for the 2014 through 2018 Dodge Ram 2500 is a great solution to fit larger diameter tires and give your truck a great new look. In this kit, the radius arms are relocated with a uniquely designed bracket that mixes the ease of installation with an adapter-type bracket with the strength and durability of a full replacement radius arm mount bracket.

The new relocation bracket ties into both the factory radius arm frame mount and the side of the frame rail. At the frame, the new mount is fastened with specially machined sleeves and threaded inserts.

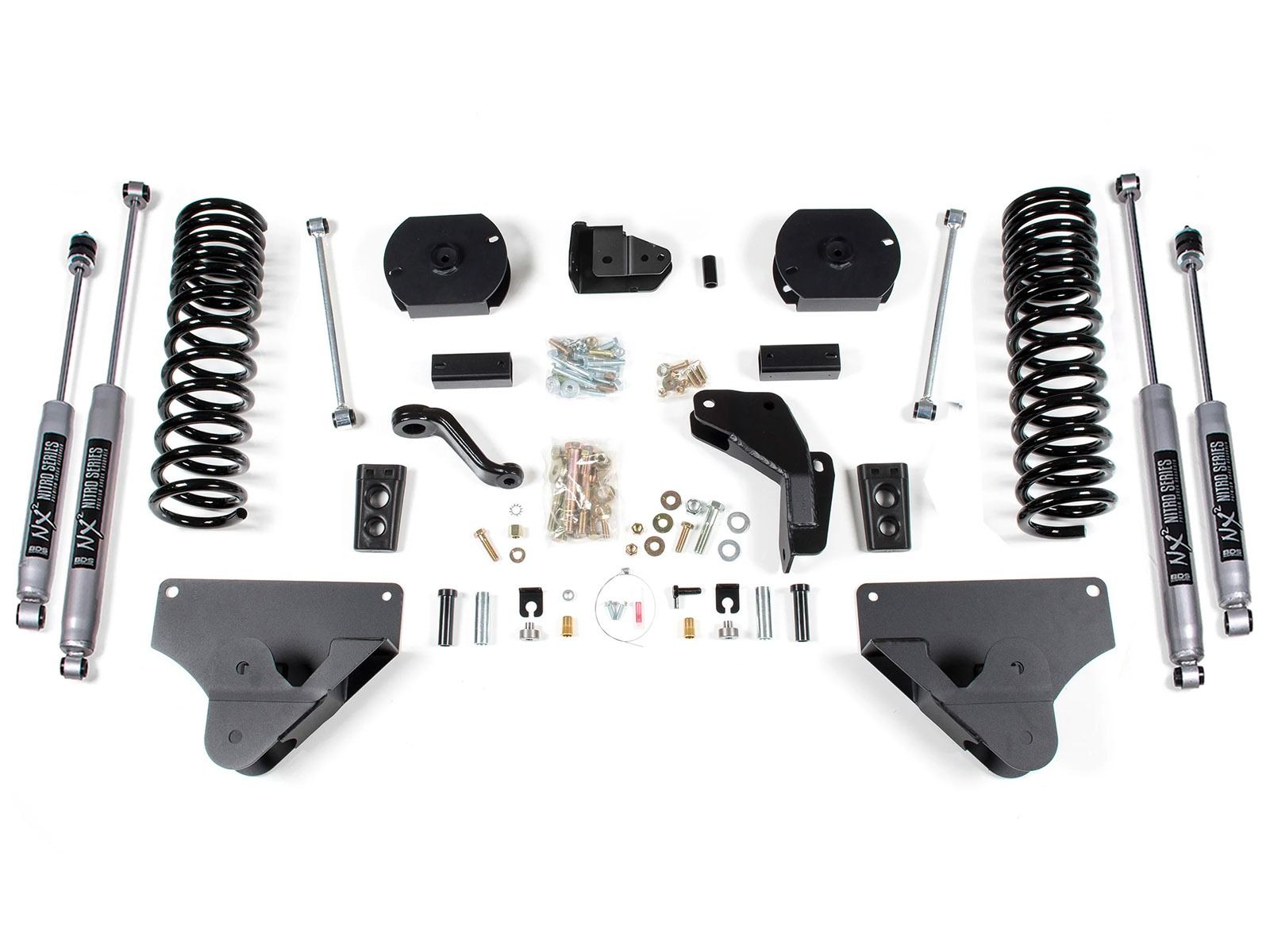

In addition to the radius arm relocation, the kit includes everything else to lift the Ram 2500s properly. Track bar relocation, dropped pitman arm, and brake line relocation hardware position all the steering and brake components properly to work with the added ride height provided by the new progressive rate, full replacement coil springs. Extra design time was spent developing coils that would ride great, handle the rigors of supporting a 3/4 ton truck, and work properly with the unique factory coil mounts at the frame and axle.

The rear lift is accomplished with rear heavy-duty fabricated coil spring spacers or optional progressive rate coil springs. An axle-mounted track bar relocation bracket repositions the rear track bar and centers the axle. Extended sway bar links keep the rear sway bar at the optimum operating angle.

Choose from BDS NX2 Nitro shocks or Fox 2.0 Performance Series shocks.

All possible SKUs based on options selected: BDS1609H  BDS1609FS BDS1610H BDS1610FS

Features and Benefits:

  • 4 inch front lift / 2.5 inch rear lift
  • Allows use of up to 37 inch diameter tires
  • Heavy Duty Radius Arm Relocation Brackets
  • Progressive Rate Front Coil Springs,
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation
  • Average install time: 5 hours
  • Choose from BDS NX2 or Fox 2.0 Performance IFS Shocks
  • Made in the USA using Premium Components
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 13.5 inch w/ 17 x 9 tires and 5.625 inch backspacing
  • Fits a 35 inch x 12.5 inch w/ 18 x 9 tires and 4.5 inch backspacing
  • Fits a 35 inch x 12.5 inch w/ 17 x 9 tires and 4.5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle coul have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order bds_122813.
  • Not for use with factory rear airbag suspensions.
  • Will not fit RAM 2500 Power Wagon models.
  • Fits gas motor vehicles only.
  • Will not fit Cab and Chassis models
  • Vehicle Fitment
    MakeDodge
    ModelRam 2500
    Year Fitment2018, 2017, 2016, 2015, 2014
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1609H
    Item Numberbds_bds1609h
    Product LineLift Kits
    Lift Height4 inch
    EngineGas
