3" 2014-2018 Dodge Ram 2500 4WD (w/diesel engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1624H / BDS1624FS
From $1,857.82 Regular Price $1,955.60


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

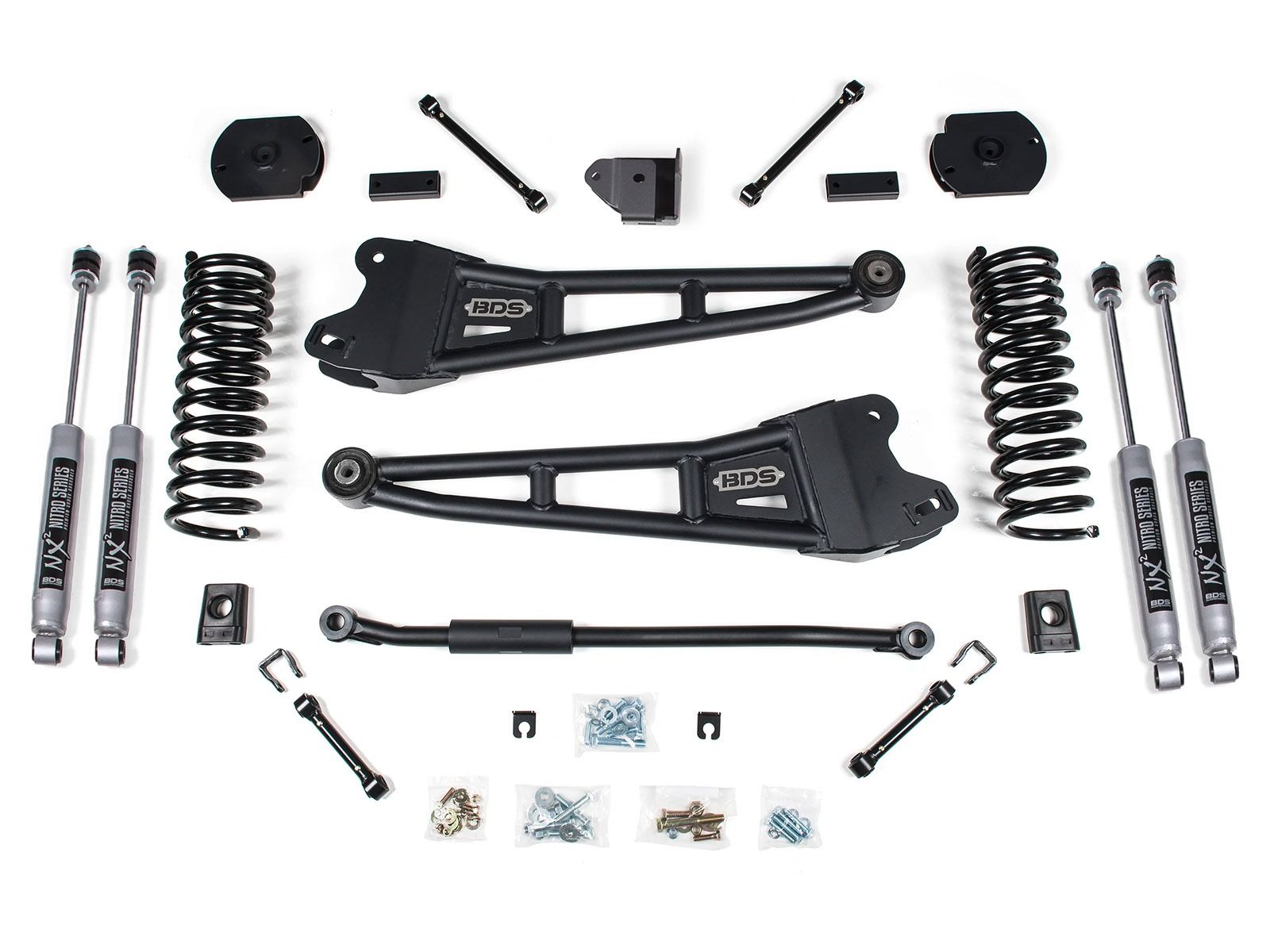

This BDS Suspension BDS1624H 3 inch lift kit for the 2014 thru 2018 Ram 2500 is built around massive tubular replacement radius arms. These arms are built to handle far more than the factory parts they are replacing. The design incorporates a factory style rubber bushing mount at the frame to keep the NVH levels in check. The 3-1/4" diameter bushings are huge and have a long, maintenance-free service life. The new radius arms mount right into the factory locations so installation is simple and clean. Factory alignment adjustability is maintained using the OE eccentric adjusters. The arm geometry is set to keep the axle angle in the factory specs while compensating for the 3" of lift. A copper-anodized aluminum BDS name plate is mounted each arm.

3 inch lift front coil springs improve the ride and handling for both on and off road conditions. A heavy-duty turnbuckle style adjustable track bar is included to center the axle. BDS greaseable front sway bar links reset the sway bar to the optimum angle and round out the main front components. Add in the front brake line relocation brackets and a choice of BDS NX2 or FOX 2.0 Performance Series shocks and this system is set to handle any terrain.

The rear is lifted using 1.25 inch fabricated steel coil spring spacers. A track bar relocation bracket keeps the rear axle centered. Extended bump stops and sway bar end links complete the rear components.

Features and Benefits:

  • Lifts vehicle 3 inch front / 2 inch rear
  • Allows use of up to 35 inch diameter tires
  • Heavy Duty Tubular Replacement Radius Arms
  • Progressive Rate Front Coil Springs
  • Front Turnbuckle Adjustable Track Bar
  • Rear Fabricated Coil Spring Spacers
  • Average install time: 5 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • Fits a 35" x 12.50 w/17" x 9" tire and 5" back spacing
  • Fits a 35" x 12.50" w/18" x 9" tire and 4.5 back spacing
  • Fits a 35" x 12.50" w/20" x 9" tire and 4.5 back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Not compatible with factory rear air ride vehicles!
  • Vehicle Fitment
    MakeDodge
    ModelRam 2500
    Year Fitment2018, 2017, 2016, 2015, 2014
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1624H / BDS1624FS
    Item Numberbds_bds1624h
    MPN(UPC)840416405491
    Product LineLift Kits
    Lift Height3 inch
    EngineDiesel
