5.5" 2014-2018 Dodge Ram 2500 (w/gas engine & factory air ride) 4WD Lift Kit by BDS Suspension
5.5" 2014-2018 Dodge Ram 2500 (w/gas engine & factory air ride) 4WD Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!
888-452-2548

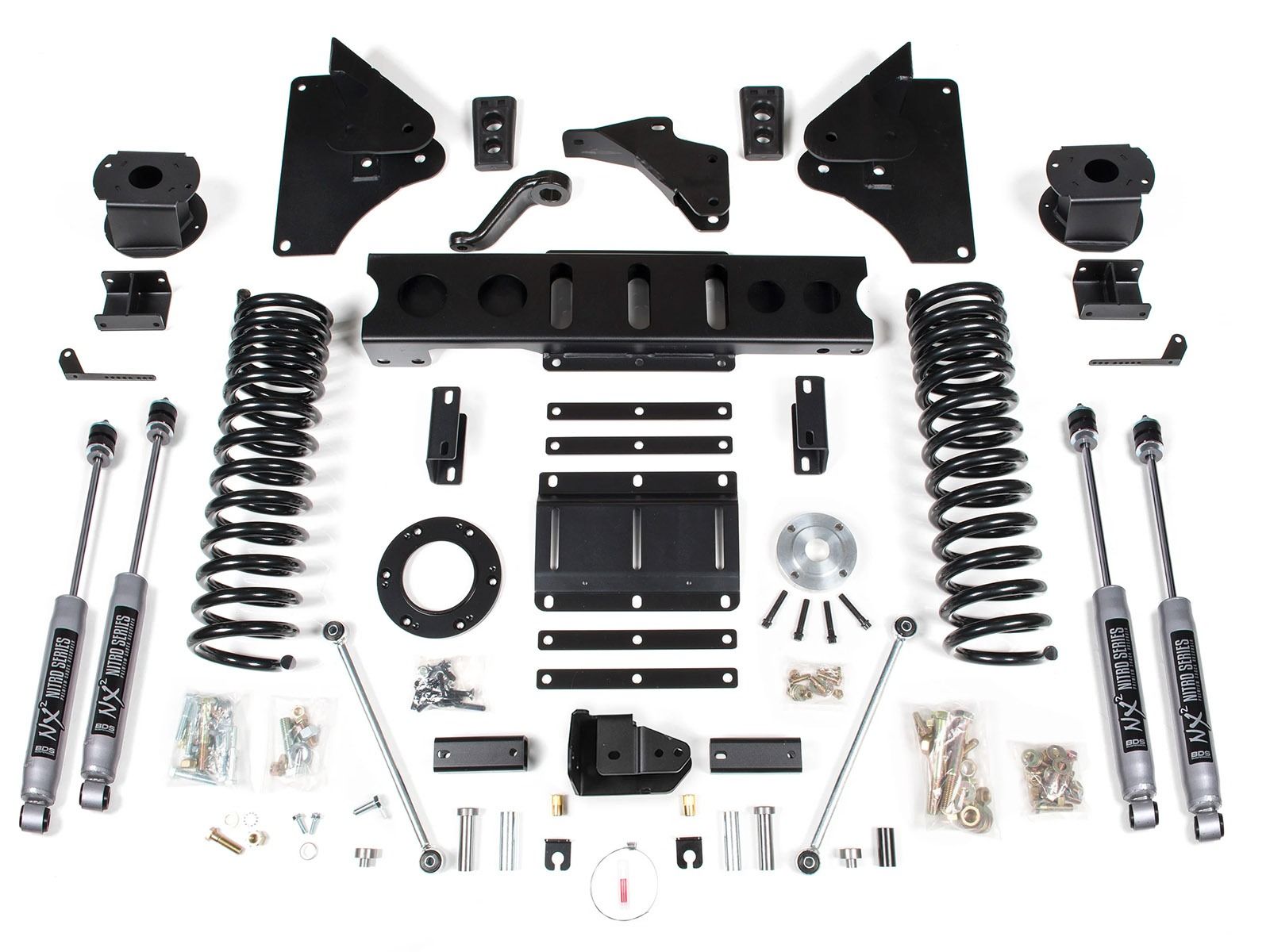

This BDS Suspension BDS1629H / BDS1629FS 5.5 inch Radius Arm Drop Kit for the Dodge Ram 2500 uses a pair of 1/4" thick steel radius arm relocation brackets in order to reposition the factory radius arm and correct suspension geometry and caster. Designed for quick installation this kit uses both the factory radius arm frame mounts and the side of the frame rails. Additional height is achieved by progressive rate Pro Ride Coil Springs. The 5.5" coils were engineered and tested to improve the ride quality and performance on and off-road. A heavy duty track bar relocation bracket is included in this kit, in order to recenter the front axle once lifted. Sway bar relocation brackets are used in order to reposition the front sway bar assembly and the supplied brake line brackets provide easy adjustment. Due to the redesigned suspension on the 2014 and up 2500 trucks this kit requires transmission / transfer case relocation components in order for the front driveshaft to run properly. Laser cut transmission crossmembers and adjustable transmission mounting plates increase clearance. The transfer case is repositioned by the indexing ring kit included in the kit. 1/4" steel and 5" tall gusseted air bag spacers are used along with the rear track bar bracket, correcting axle positioning. New air ride leveling sensor brackets position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like factory ride Height, maintaining full air bag range of motion. Features and Benefits:
BDS Suspension Lift Kit Warranty |
Important Notes |
Make | Dodge |
---|---|
Model | Ram 2500 |
Year Fitment | 2018, 2017, 2016, 2015, 2014 |
2WD/4WD | 4WD |
Manufacturer | BDS Suspension |
---|---|
Manufacturer Part Number | BDS1629H |
Item Number | bds_bds1629h |
Product Line | Lift Kits |
Lift Height | 5.5 inch |
Engine | Gas |
