|Manufacturer Part Number||1636H|

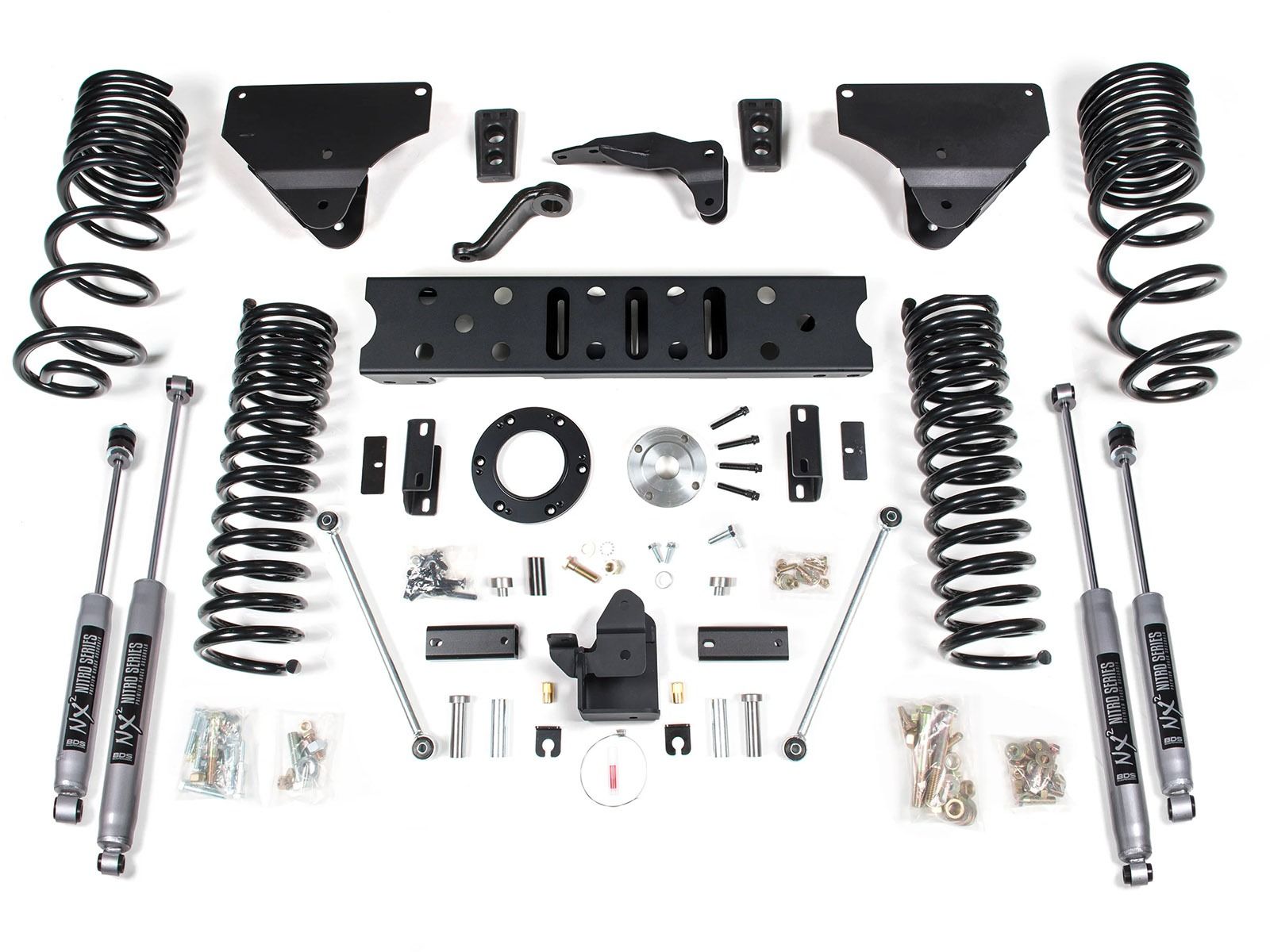

Designed to maintain on-road handling while improving offroad capability with room for 37" tires. At the heart of these new systems are dual rate coil springs designed for a full 4" of lift on the power wagon along with your choice of NX2 gas or FOX 2.0 performance gas shocks for impressive ride quality and performance. The factory radius arms are repositioned using a pair of specially designed 1/4" thick drop brackets that key off the factory mounts for strength and rigidity. Steering correction comes from a forged drop pitman arm that is used in combination with a heavy duty track bar drop bracket to keep the steering in phase for predictable handling. Also supplied for the front are replacement bump stops, sway bar relocation to retain functionality of the factory electronic sway bar disconnect and brake line relocation brackets.
At 4" of lift the transfer case is indexed to allow the front driveshaft to function properly. BDS supplies a high strength indexing ring with ARP studs along with a replacement high clearance transmission crossmember and billet driveshaft extension to allow the factory driveshafts to be reinstalled with the kit. In the rear a pair of replacement HD dual rate coil springs are supplied to level the stance while providing a great ride and maintain tow capacity. These springs paired your choice of NX2 gas or FOX 2.0 performance gas shocks along with extended sway bar links, a heavy duty rear track bar bracket and all the necessary hardware rounds out this 4" lift system for the late model Power Wagon. Additionally BDS offers several accessories for this kit, click the "customize this kit" button to further enhance your kit.
Tire & Wheel Combinations
- Est. Installation: 6-8 hours
BDS Suspension Lift Kit Warranty
|Important Notes||Not for use with factory rear airbag suspensions
Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle coul have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order 122813.
Will not fit Cab and Chassis models
Additional wheel/tire sizes can be used, however may require additional trimming.
Requires exhaust modification to clear front driveshaft at full suspension droop, steps oulined in instructions.
Compatible with factory rear power hop damper.
|Model||Ram 2500 Power Wagon, 3/4 ton Ram Power Wagon|
|Lift Height||4 inch|
