4" 2019-2023 Dodge Ram 2500 (w/Diesel Engine) 4WD 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1674H
As low as $2,509.05 Regular Price $2,544.55

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

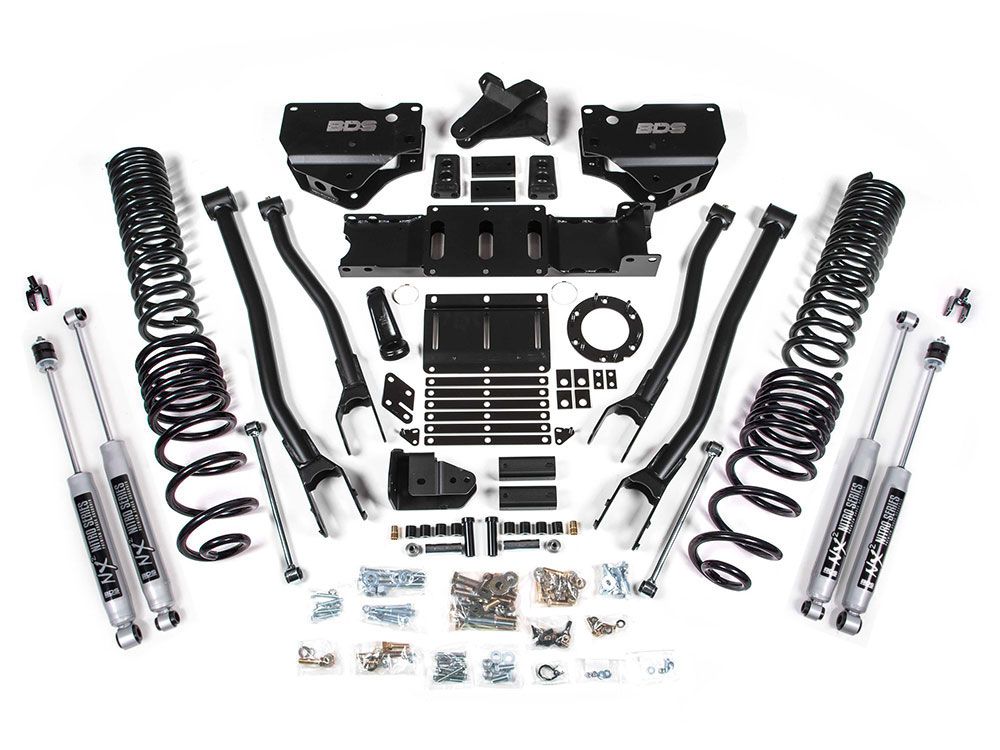

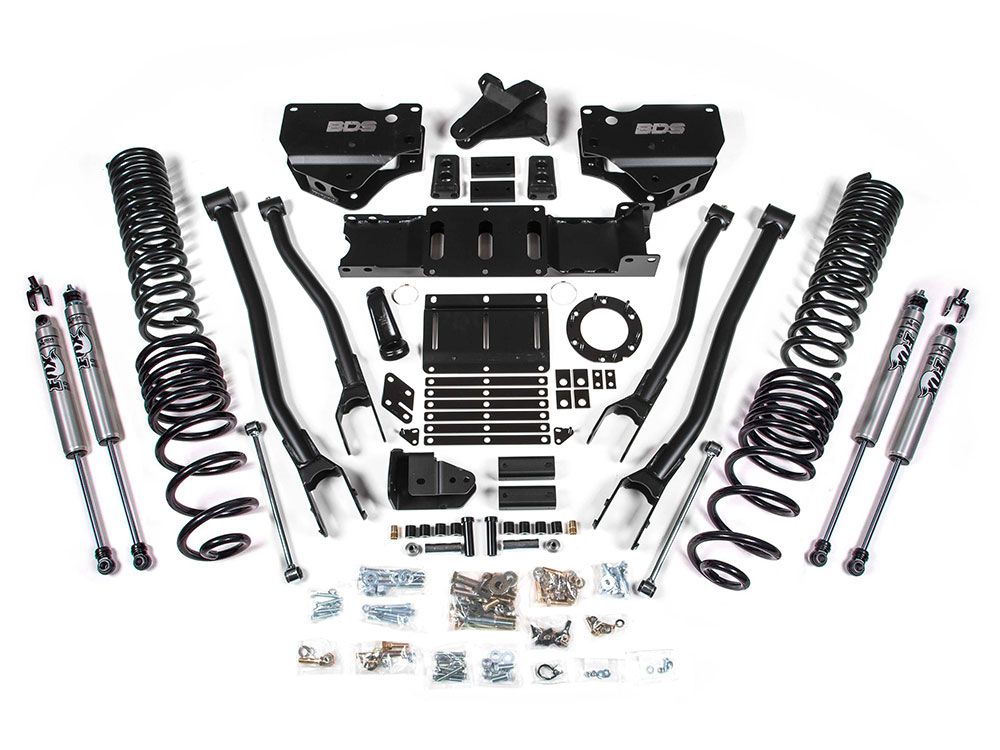

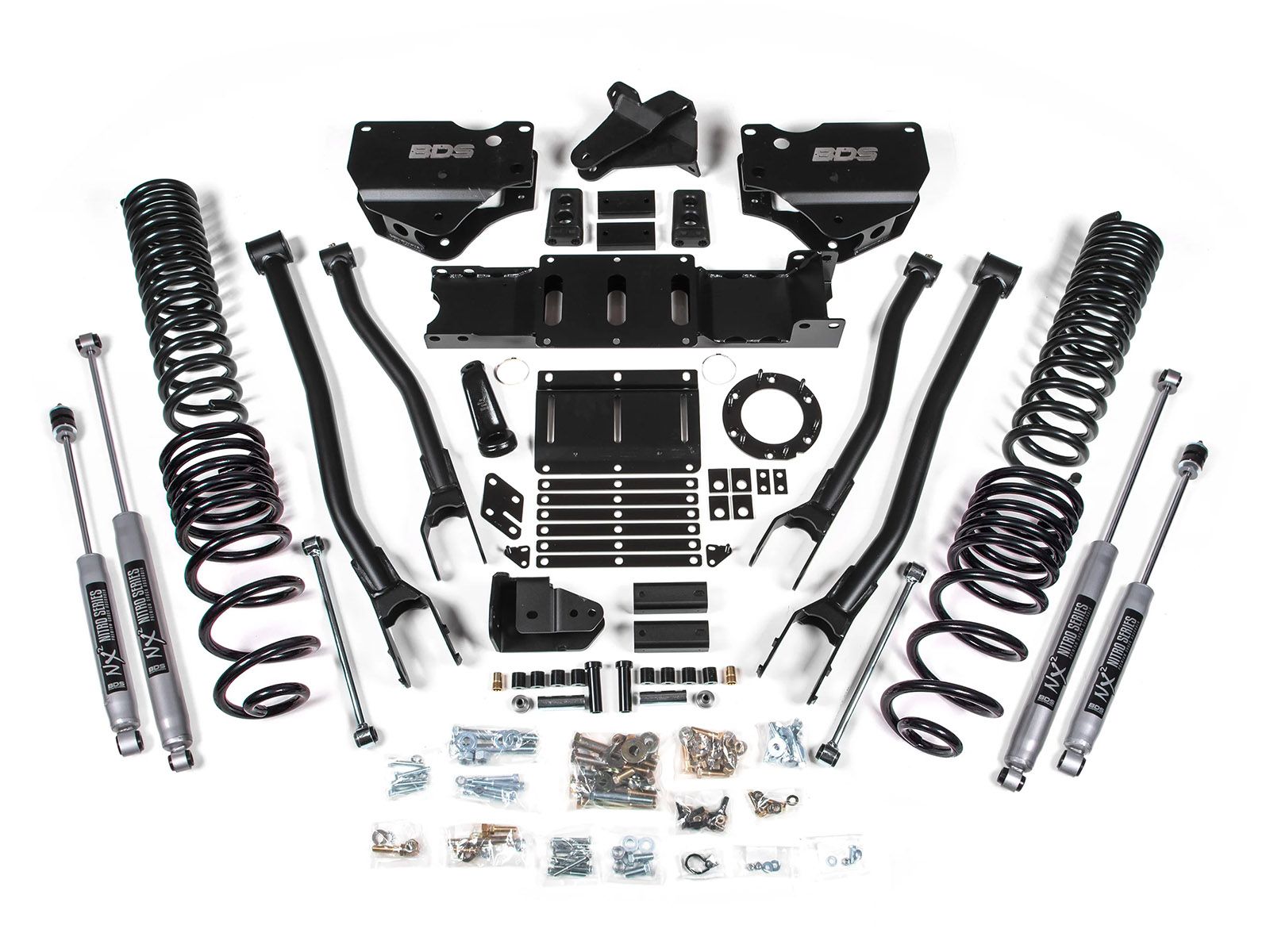

The BDS 1674H 4 inch 4-Link lift kit for the Dodge Ram 2500 is an awesome way to upgrade your suspension and fit up to 37 inch tires. The factory stamped steel radius arms are converted over to 4-link using a pair of 1/4" steel brackets and high strength upper and lower control arms designed to limit caster control throughout suspension travel for more predictable handling characteristics. Up front this system utilizes a pair of progressive rate 4" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop.

In the rear 2.5 inch progressive rate coil springs lift and level the rear of the Ram 2500.

Your choice of BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

At 4" of suspension lift it is critical to correct the front driveline angle in order to maintain the use of the 4WD capabilities. To achieve this BDS suspension provides replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output, allowing use of the factory drivelines.

Features and Benefits:

  • Allows use of up to 37 inch diameter tires
  • 4-Link upgrade improves handling
  • Premium quality components¬†
  • Progressive Rate Front and Rear Coil Springs
  • Forged Drop Pitman Arm
  • Front Track Bar Relocation Brackets
  • Average install time: 7-9 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 37 inch x 13.5 inch tires w/20 inch x 9 and 5.625 inch backspacing
  • Fits a 37 inch x 12.50 inch tires w/20 inch x 9 and 4.5-5.625 inch backspacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Will NOT fit air-ride equipped models
  • Diesel models only
  • Does not work with manual shift transfer cases
  • Vehicle Fitment
    ModelRam 2500
    Year Fitment2023, 2022, 2021, 2020, 2019
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1674H
    Item Numberbds_1674h
    Product LineLift Kits
    Lift Height4 inch
