6" 2019-2020 Dodge Ram 2500 4WD (w/Diesel Engine) Lift Kit by BDS Suspension

$2,260.98

Brand: BDS | SKU: 1680H



free shipping truck  FREE SHIPPING !!
on orders +$99, exclusions apply

- +
paypal
expert
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
icon
icon
icon
icon
icon
icon
Product Overview
More Information
Description

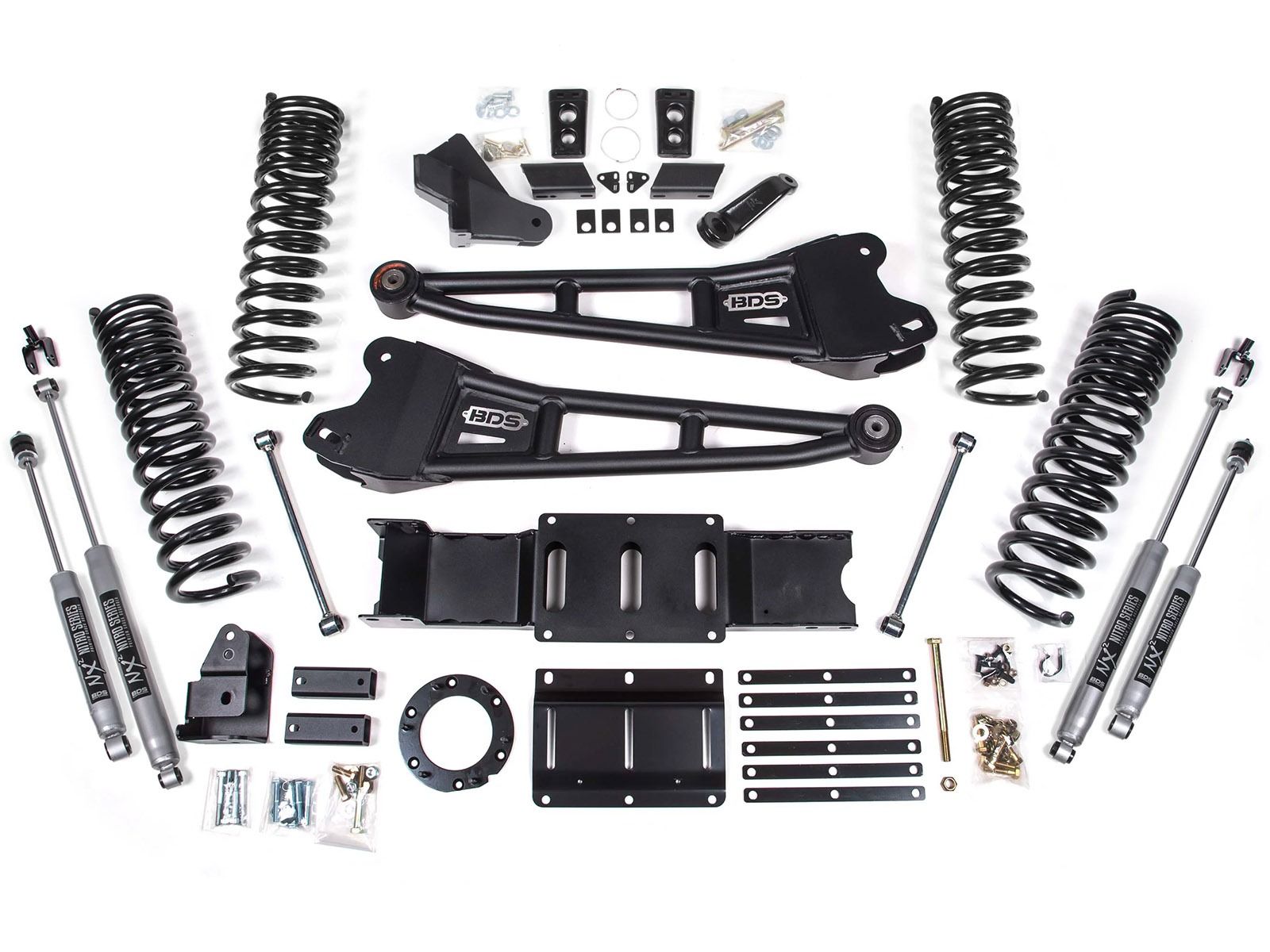

BDS Suspension's 1680H Radius Arm Lift Kit for the 2019-2020 Dodge Ram 2500 4wd will raise your vehicle 6 inches which will allow use of 37 inch tires to improve off-roading performance while keeping great handling and ride quality.

This premium quality suspension lift kit is built around a set of heavy duty radius arms, front and rear progressive rate coil springs and your choice of BDS or Fox gas shocks.  The coil springs are designed to maintain a comfortable ride while also being able to handle the most harsh off-road conditions. To maintain the front suspension's geometry massive tubular radius arms are used that bolt-in the factory mounts.  A forged drop pitman arm keep steering angles in check while a track bar relocation bracket centers the front axle.  Proper front driveline angles are kept by the use of a heavy duty transmission crossmember along with a transfer case indexing ring. Also included are front sway bar drop brackets and extended bump stops.

The rear of the vehicle uses 4.5 lift height coil springs designed to give the Ram a level stance.  Extended rear sway bar endlinks and a rear track bar bracket are also inclued.

Top Features

  • Lifts vehicle 6 inch front / 4.5 inch rear
  • Allows use of up to 37 inch diameter tires
  • Massive Replacement Tubular Radius Arms
  • Progressive Rate Front & Rear Coil Springs
  • Forged Drop Pitman Arm
  • Front and Rear Track Bar Relocation Brackets
  • Extended Bump Stops
  • Front driveline angles maitained with new tranmission crossmember & reindexing ring
  • Average Install Time: 8 hours
  • Choose from BSD NX2 or Fox 2.0 Performance IFP Shocks
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • Tires: 37 x 13.50, Wheels: 20x9, Backspacing: 5.625 inch
  • Tires: 37 x 12.50, Wheels: 20x9, Backspacing: 4.5 - 5.625 inch
  • Tires: 37 x 13.50, Wheels: 18x9, Backspacing: 5.625 inch

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase.  Click here for more info

Installation Instructions

1680H Instructions

Important Notes
  • Fits diesel models only
  • Image shown with Fox 2.0 Performance Shocks
  • Will not fit models equipped with rear air-ride suspension
  • Will not fit Power Wagon models
Manufacturer BDS Suspension
Manufacturer Part Number 1680H
Item Number bds_1680h
Make Dodge
Model Ram 2500
Year Spans 2019,2020
Lift Height 6 inch
2WD/4WD 4WD
Type Suspension Lift Kit
Engine Diesel
