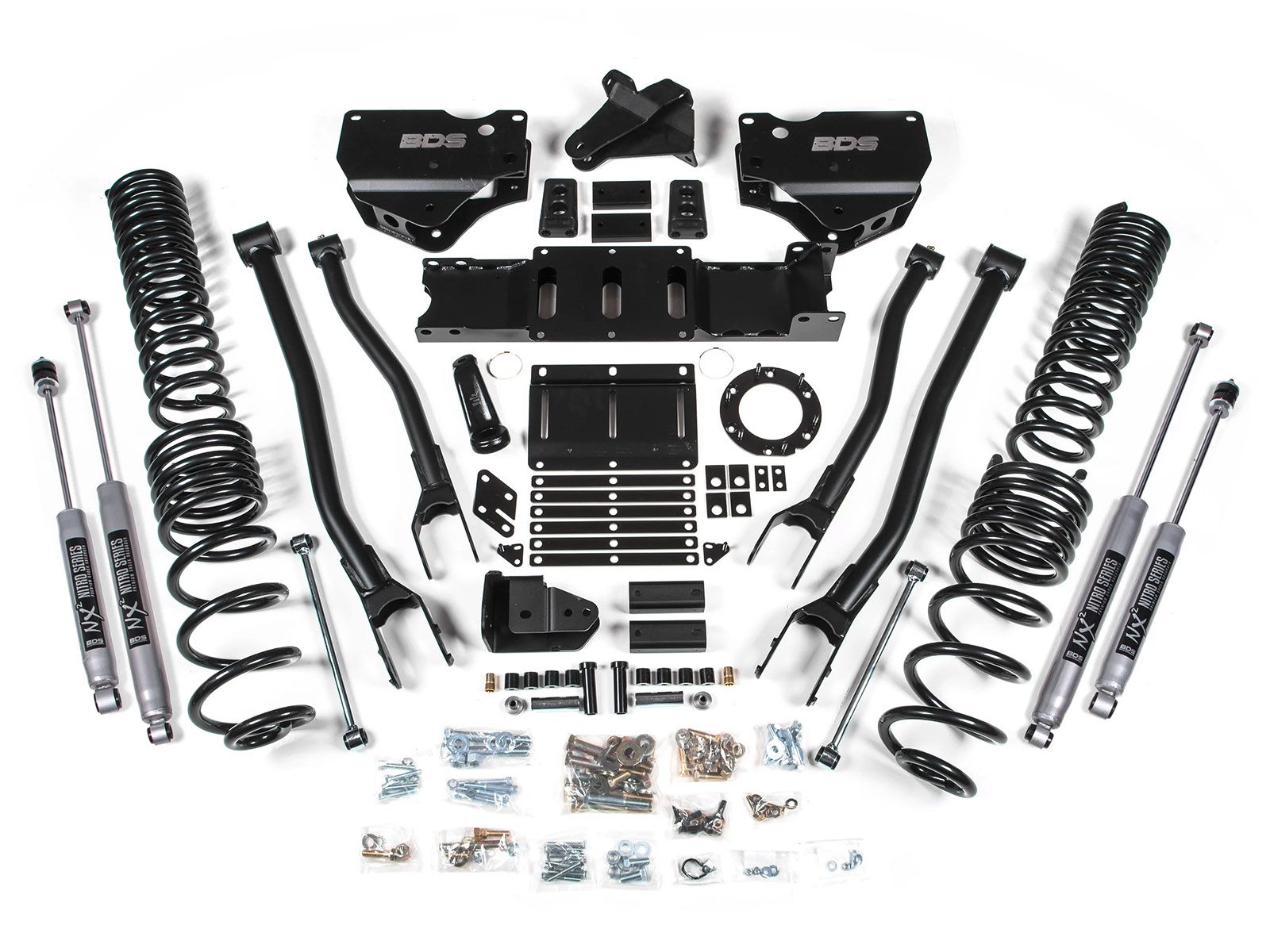

The BDS Suspension BDS1689H 5.5-inch 4-Link lift kit for the Dodge Ram 2500 is an excellent way to upgrade your suspension and fit up to 37-inch tires. The factory-stamped steel radius arms are converted over to 4-link using a pair of 1/4" steel brackets and high-strength upper and lower control arms designed to limit caster control throughout suspension travel for more predictable handling characteristics. This system utilizes progressive rate 5.5" coil springs, providing extra ride height and smooth, controlled performance in the harshest terrains. A forged drop pitman arm is supplied to correct steering angles, and an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar and extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. In the rear 4, 4-inch progressive rate coil springs lift and level the rear of the Ram.

You choose BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

At 5.5" of suspension lift, it is critical to correct the front driveline angle to maintain the use of the 4WD capabilities. To achieve this, BDS suspension provides a replacement transmission cross member and a transfer case indexing ring to reposition the front driveline output, allowing the use of the factory drivelines.

Features and Benefits:

• 5.5" front lift, 4" rear lift for level ride
• Allows use of up to 37-inch diameter tires
• 4-Link upgrade improves handling
• Premium quality components
• Progressive Rate Front and Rear Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 8-10 hours
• Choose from BDS NX2 or Fox 2.0 Performance Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.5 inch tires w/20 inch x 9 and 5.625 inch backspacing
• Fits a 37 inch x 12.50 inch tires w/20 inch x 9 and 4.5-5.625 inch backspacing

  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. They guarantee all products are free from material defects and workmanship to the original retail purchaser. If you break it, they replace it...period.
