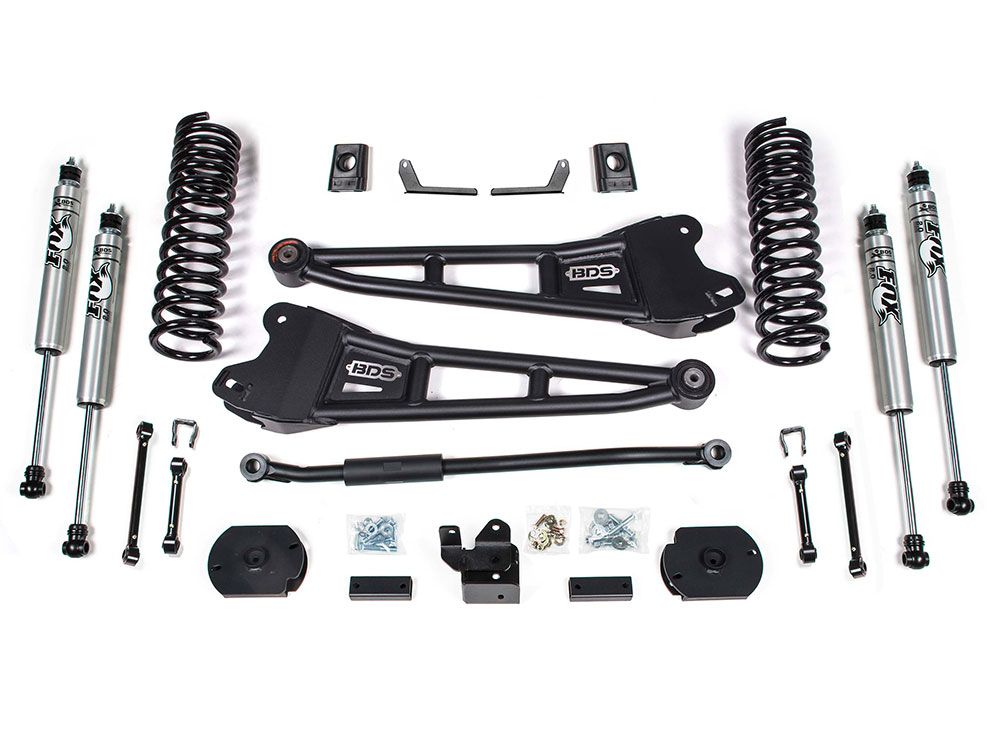

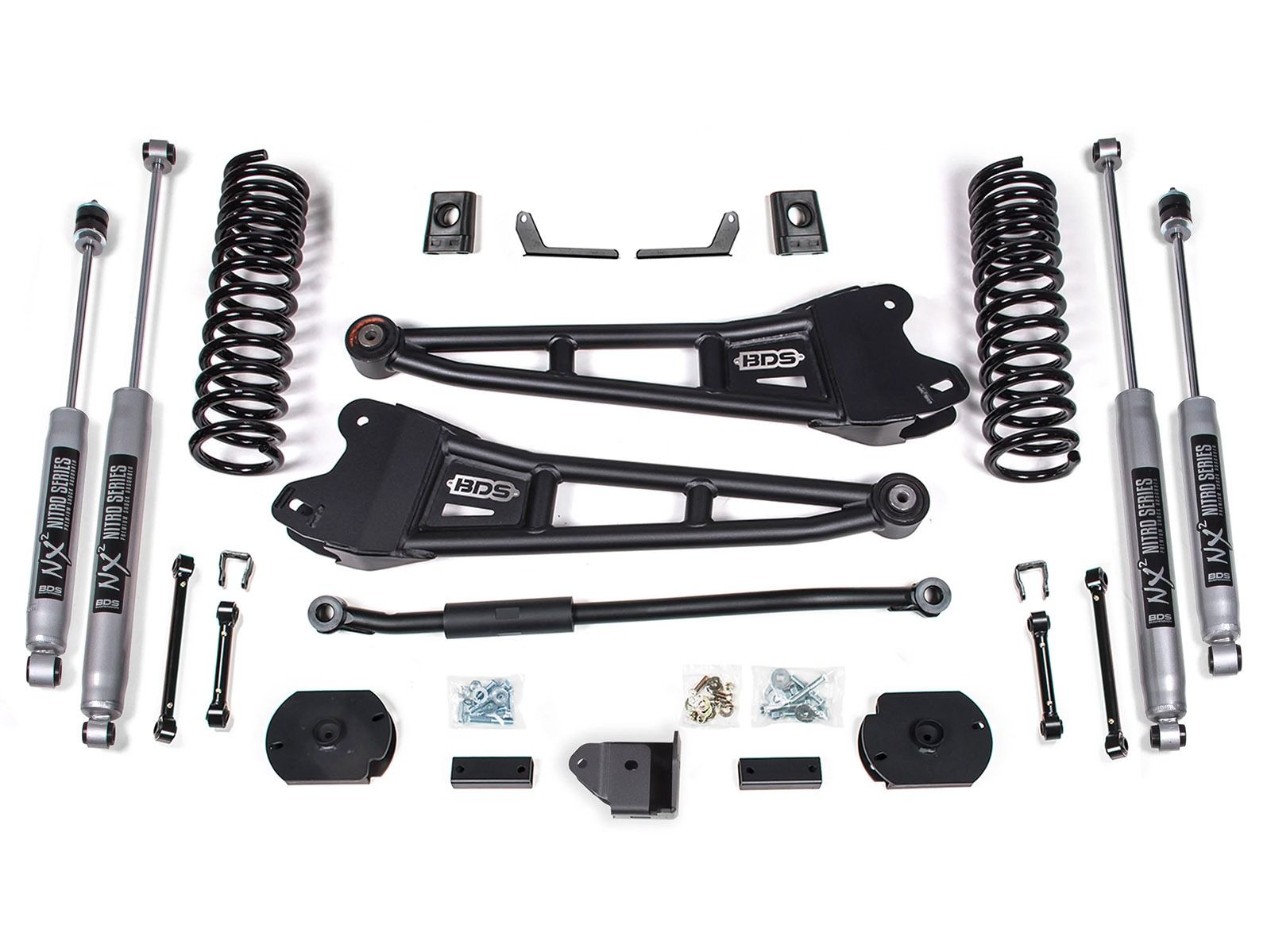

3" 2019-2022 Dodge Ram 2500 (w/Diesel Engine & Factory Rear Air-Ride) 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1713H / 1713FS
As low as $1,996.60


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS 1713H / 1713FS 3 inch Radius Arm lift kit for the Dodge Ram 2500 is an awesome way to upgrade your suspension and fit up to 35 inch tires, while retaining full functionality of the factory rear air-ride and on-road comfort while improving the off-road capability of your truck.

This kit retains full functionality of the factory rear air-ride and on-road comfort while improving the off-road capability of your truck. Up front this system utilizes a pair of progressive rate 3" coil springs, providing extra ride height and smooth controlled performance in the harshest of terrains. An adjustable heavy duty track bar re-centers the front axle. A pair of extended sway bar end links correct sway bar angles, along with extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

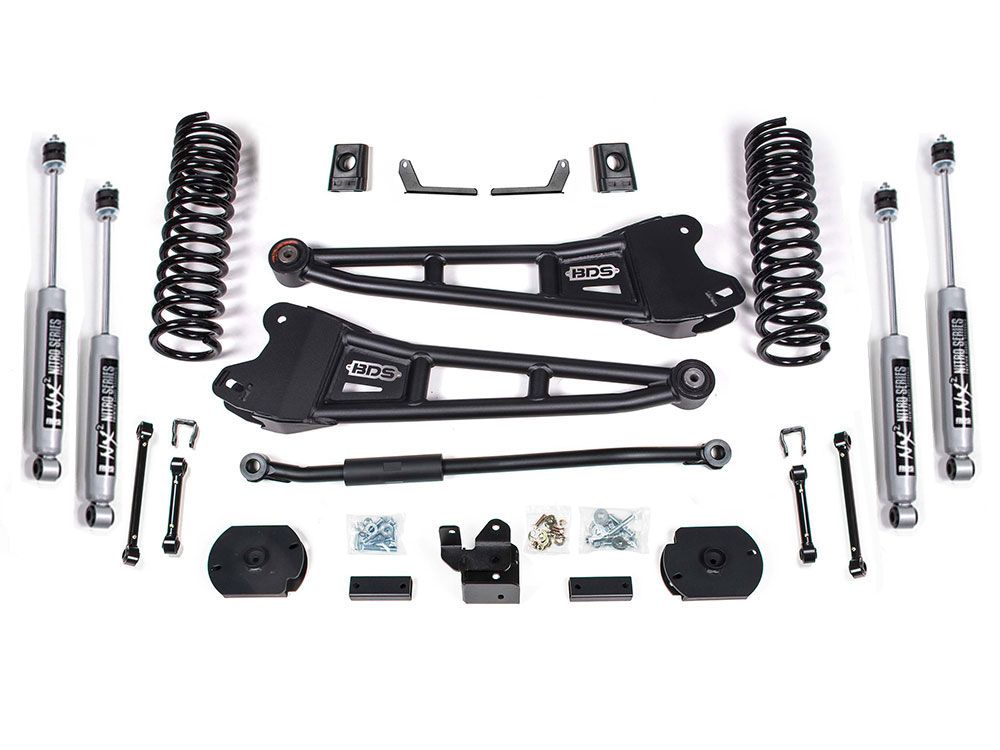

Your choice of BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

In the rear, air bag spacers are supplied to lift and level the stance, keep functionality of the factory air-ride suspension. A rear track bar bracket centers the rear axle and extended length sway bar links are included to eliminate binding. In the rear, 2.5" air bag spacers are supplied to lift and level the stance, keep functionality of the factory air-ride suspension. A rear track bar bracket centers the rear axle and extended length sway bar links are included to eliminate binding.

Features and Benefits:

  • Allows use of up to 35 inch diameter tires
  • Radius Arm upgrade improves handling
  • Premium quality components¬†
  • Progressive Rate Front Coil Springs
  • Front Adjustable Track Bar centers axle
  • Retains full functionality of the factory rear air-ride
  • Average install time: 5 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA
  • No Fine Print Lifetime Warranty
  • Fits a 35 inch x 12.50 inch tires w/17/20 inch x 9 and 4.5-5 inch backspacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Not for use with factory rear coil spring suspensions
  • Will not fit RAM 2500 Power wagon models
  • Models equipped with a 2 piece rear driveshaft may require carrier bearing drop kit # 122406
  • Does not fit Vehicles with a Manual Shift Transfer Case
  • Fits Diesel engine models only
  • Vehicle Fitment
    MakeDodge
    ModelRam 2500
    Year Fitment2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1713H / 1713FS
    Item Numberbds_1713h-1713fs
    Product LineLift Kits
    Lift Height3 inch
    EngineDiesel
