The BDS Suspension BDS1737H / 1737FS 5.5 inch Radius Arm lift kit for the Dodge Ram 2500 is an awesome way to upgrade your suspension and fit up to 37-inch tires, while retaining full functionality of the factory rear air-ride and on-road comfort while improving the off-road capability of your truck.

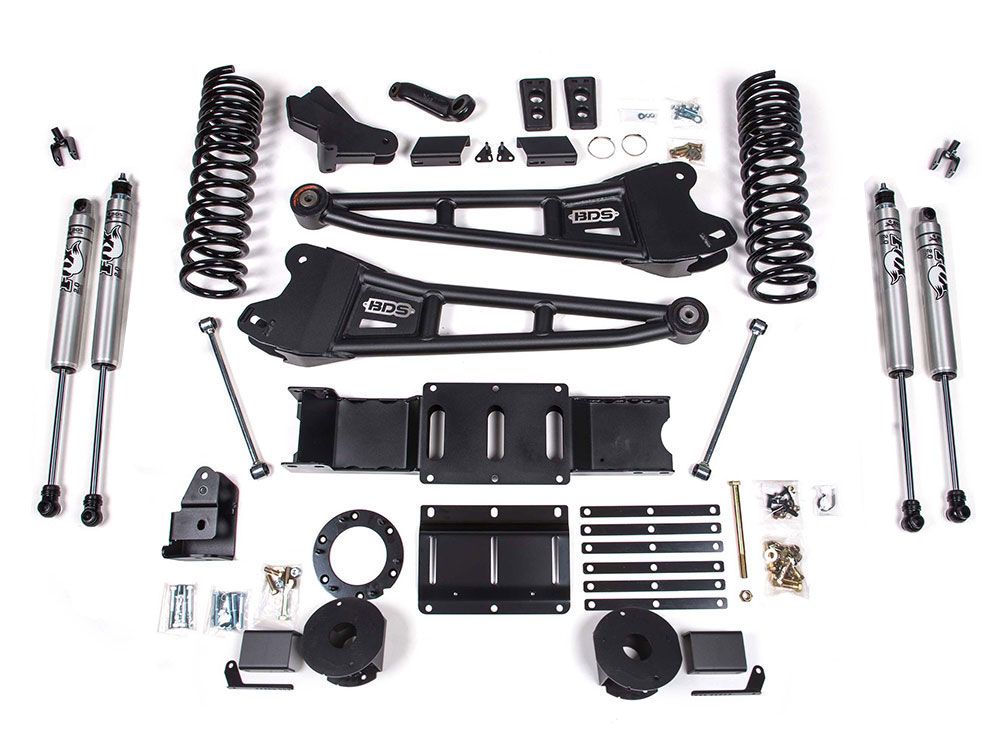

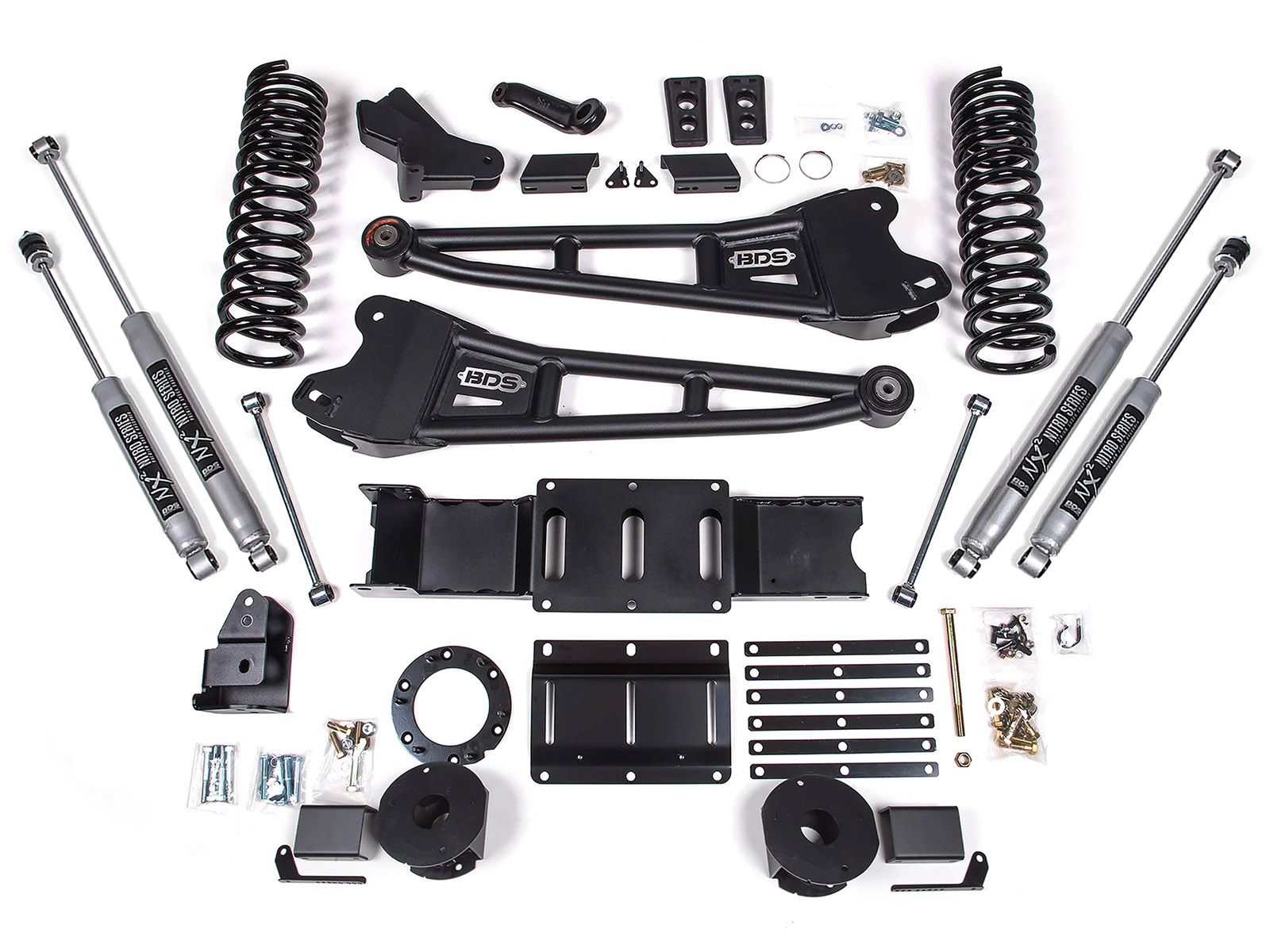

This system utilizes a pair of progressive rate 5.5" coil springs in the front, providing extra ride height and smooth, controlled performance in the harshest terrains. A forged drop pitman arm is supplied to correct steering angles, and an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar and extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop. Heavy-duty replacement radius arms are supplied to correct front suspension geometry at the new lift height.

You choose BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

At 5.5" of suspension lift, it is critical to correct the front driveline angle to maintain the use of the 4WD capabilities. To achieve this BDS suspension provides a replacement transmission cross member and a transfer case indexing ring to reposition the front driveline output, allowing the use of the factory drivelines.

In the rear, 5-inch airbag spacers are supplied to lift and level the stance, keeping the functionality of the factory air-ride suspension. A rear track bar bracket centers the rear axle, and extended-length sway bar links are included to eliminate binding.

In the rear, 5" airbag spacers are supplied to lift and level the stance, keeping the functionality of the factory air-ride suspension. A rear track bar bracket centers the rear axle, and extended-length sway bar links are included to eliminate binding.

Features and Benefits:

• Allows use of up to 37-inch diameter tires
• Radius Arm upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 8-10 hours
• Choose from BDS NX2 or Fox 2.0 Performance Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.50 inch tires w/20 inch x 9 and 5.625 inch backspacing
• Fits a 37 inch x 13.50 inch tires w/20 inch x 9 and 4.5 inch backspacing
• Fits a 37 inch x 12.50 inch tires w/17 inch x 9 and 4.5 inch backspacing

  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
