6" 2019-2024 Dodge Ram 2500 (w/Diesel Engine & Factory Rear Air-Ride) 4WD 4-Link Lift Kit by BDS Suspension

The BDS Suspension BDS1738H / BDS1738FS 6-inch 4-Link lift kit for the Dodge Ram 2500 is an excellent way to upgrade your suspension and fit up to 37-inch tires. It retains the full functionality of the factory rear air ride and on-road comfort while improving your truck's off-road capability.

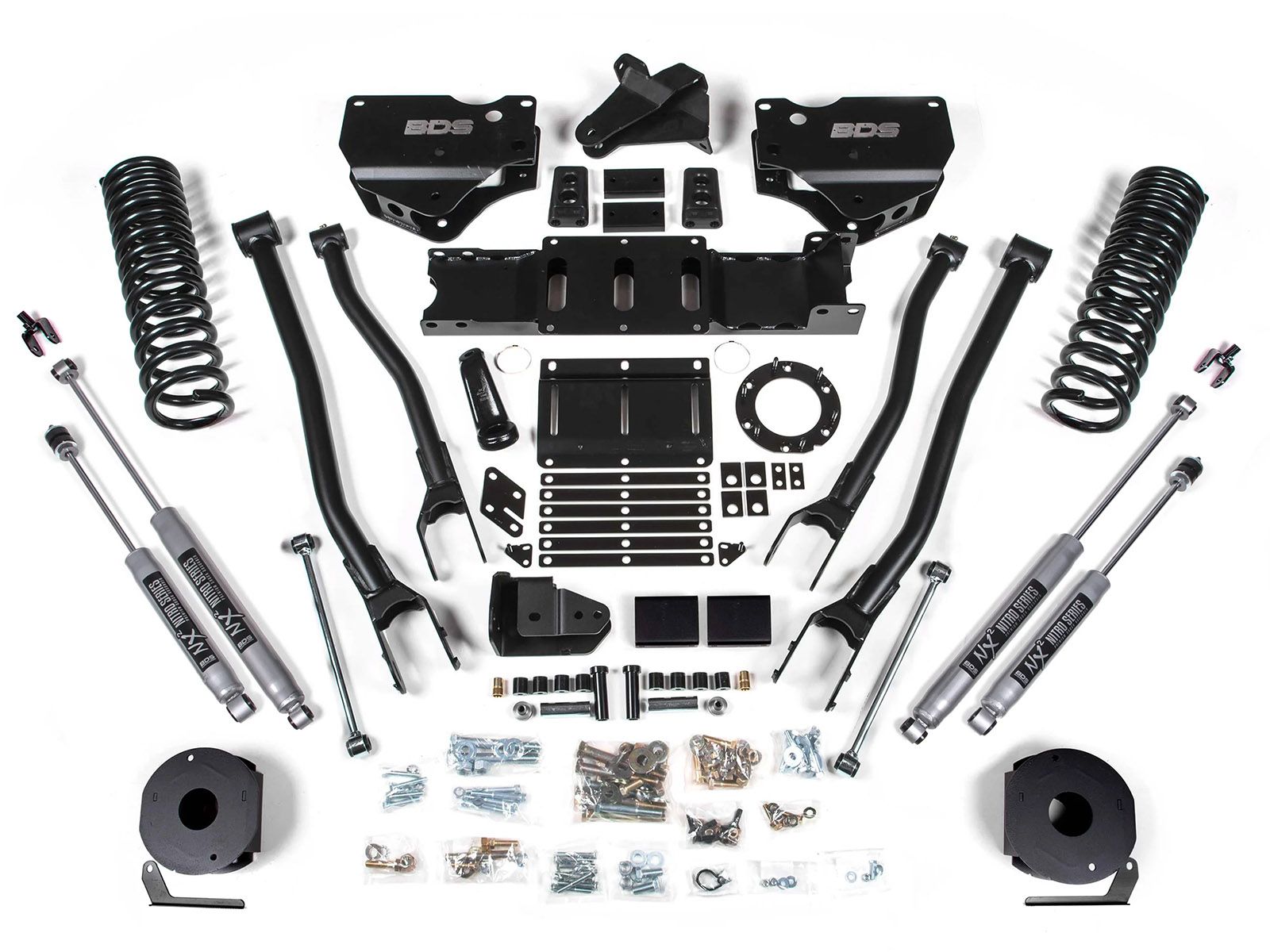

In this kit, the factory-stamped steel radius arms are converted over to 4-link using a pair of 1/4" steel brackets and high-strength upper and lower control arms designed to limit caster control throughout suspension travel for more predictable handling characteristics. A pair of progressive rate 6" coil springs are included, providing extra ride height and smooth, controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles, and an HD drop bar bracket re-centers the front axle. A pair of sway bar drop brackets reposition the OE sway bar and extended polyurethane bump stops to correctly limit up travel and brake line brackets, allowing full droop.

You have your choice of BDS NX2 gas shocks or Fox 2.0 Performance Series IFP gas shocks to improve ride quality and performance.

At 6" of suspension lift, it is critical to correct the front driveline angle to maintain the 4WD capabilities. To achieve this, BDS suspension provides a replacement transmission cross member as well as a transfer case indexing ring to restore the front driveline output, allowing the use of the factory drivelines.

In the rear, 5" air bag spacers are supplied to lift and level the stance while keeping the functionality of the factory air-ride suspension. A rear track bar bracket centers the rear axle, and extended-length sway bar links are included to eliminate binding.

Features and Benefits:

• Allows use of up to 37 inch diameter tires
• 4-Link upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front Track Bar Relocation Brackets
• Average install time: 7-8 hours
• Choose from BDS NX2 or Fox 2.0 Performance Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 13.5 inch tires w/20 inch x 9 and 5.625 inch backspacing
• Fits a 37 inch x 12.50 inch tires w/17/20 inch x 9 and 4.5 inch backspacing

  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
