4" 2019-2024 Chevy Silverado 1500 Trail Boss 4WD (with gas engine) Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1805H / BDS1805FS
$2114.99
- +
2114.99

4" 2019-2024 Chevy Silverado 1500 Trail Boss 4WD (with gas engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1805H / BDS1805FS
From $2,114.99 Regular Price $2,226.31

4" 2019-2024 Chevy Silverado 1500 Trail Boss 4WD (with gas engine) Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1805H / BDS1805FS
From $2,114.99 Regular Price $2,226.31


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

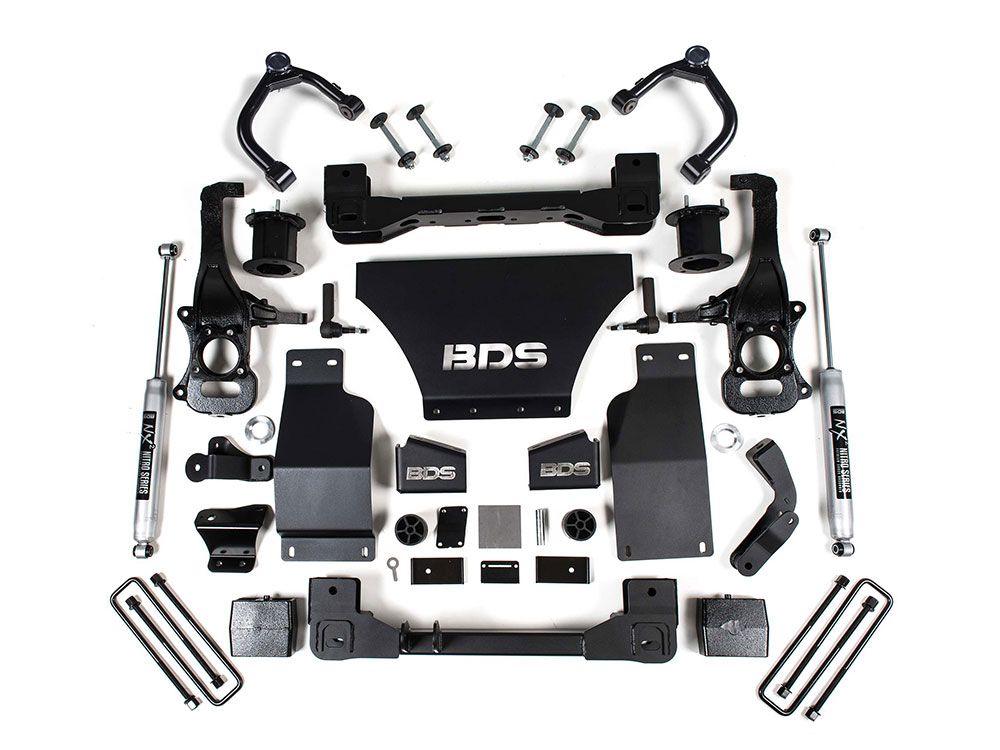

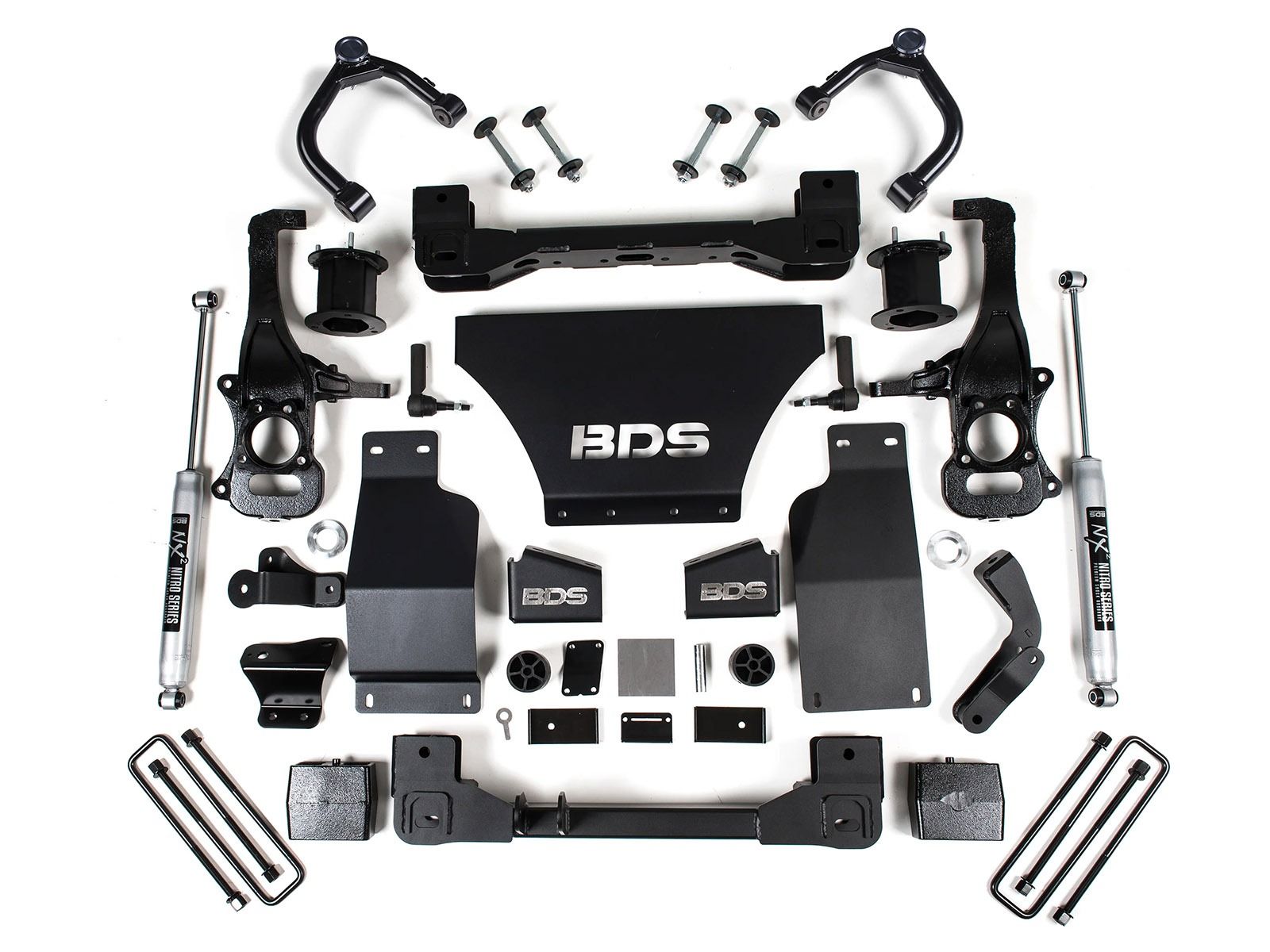

The BDS Suspension BDS1805FS / BDS1805H 4 inch suspension lift kit for the Chevy Trail Boss Silverado 1500 truck will allow for fitment of up to 37 inch diameter tires for a great off-road look. This is done without sacrificing ride quality and handling while being fully FMWSS 126 complaint.This premium quality suspension lift kit is built around a set of 1/4 inch thick steel laser cut high clearance crossmembers that are designed to get maximum clearance and provide a rock solid mounting point for the factory lower control arms. Front strut spacer give additional height to the vehicle. 3 piece heavy duty front skid plates connects the cross members while protect steering and driveline components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility along with tubular upper control arms. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 4 inch tall axle blocks with extended U-bolts.

Features and Benefits:

  • Lifts vehicle 4 inch front / 4 inch rear
  • 1/4 Inch Steel High Clearance Crossmembers
  • 3 Piece Heavy Duty Front Skid Plate
  • High Clearance design max clearance
  • Tubular upper control arms with rubber bushings and indexed ball joints
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Allows use of up 37 inch tires
  • Average Install Time: 8 hours

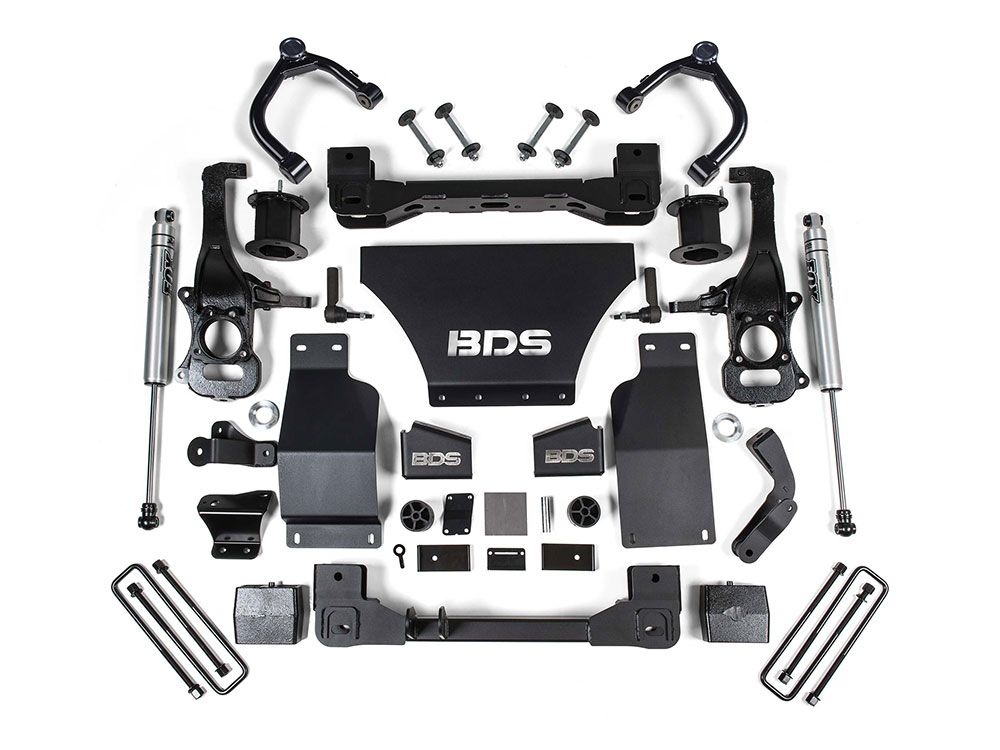

  • Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • FMVSS No. 126 (ESC System) Compliant
  • Factory Protection Plus
  • Fits a 37" x 12.50" tire w/20 x 9 / 22 x 9 (Chevy) and 5.5" back spacing
  • Fits a 35" x 12.50" tire w/20x9 / 22 x 9 (GMC) and 5.5" - 6.25" back spacing
  • Fits a 34" x 12.50" tire w/17x8 / 17x9 / 18x9 and 4.5" back spacing
    • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Important Notes
  • Does not fit diesel models
  • Requires frame bracket modification
  • Will not fit Adaptive Ride Control (ARC) equipped models
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
  • 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
  • Front skid plate with NOT work with 2.7L Turbo Engines
  • Vehicle Fitment
    MakeChevy
    ModelSilverado 1500 Trail Boss
    Year Fitment2024, 2023, 2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1805H / BDS1805FS
    Item Numberbds_bds1805h
    Product LineLift Kits
    Lift Height4 inch
