4" 2019-2026 GMC Sierra 1500 AT4 4WD (with diesel engine) Lift Kit by BDS Suspension

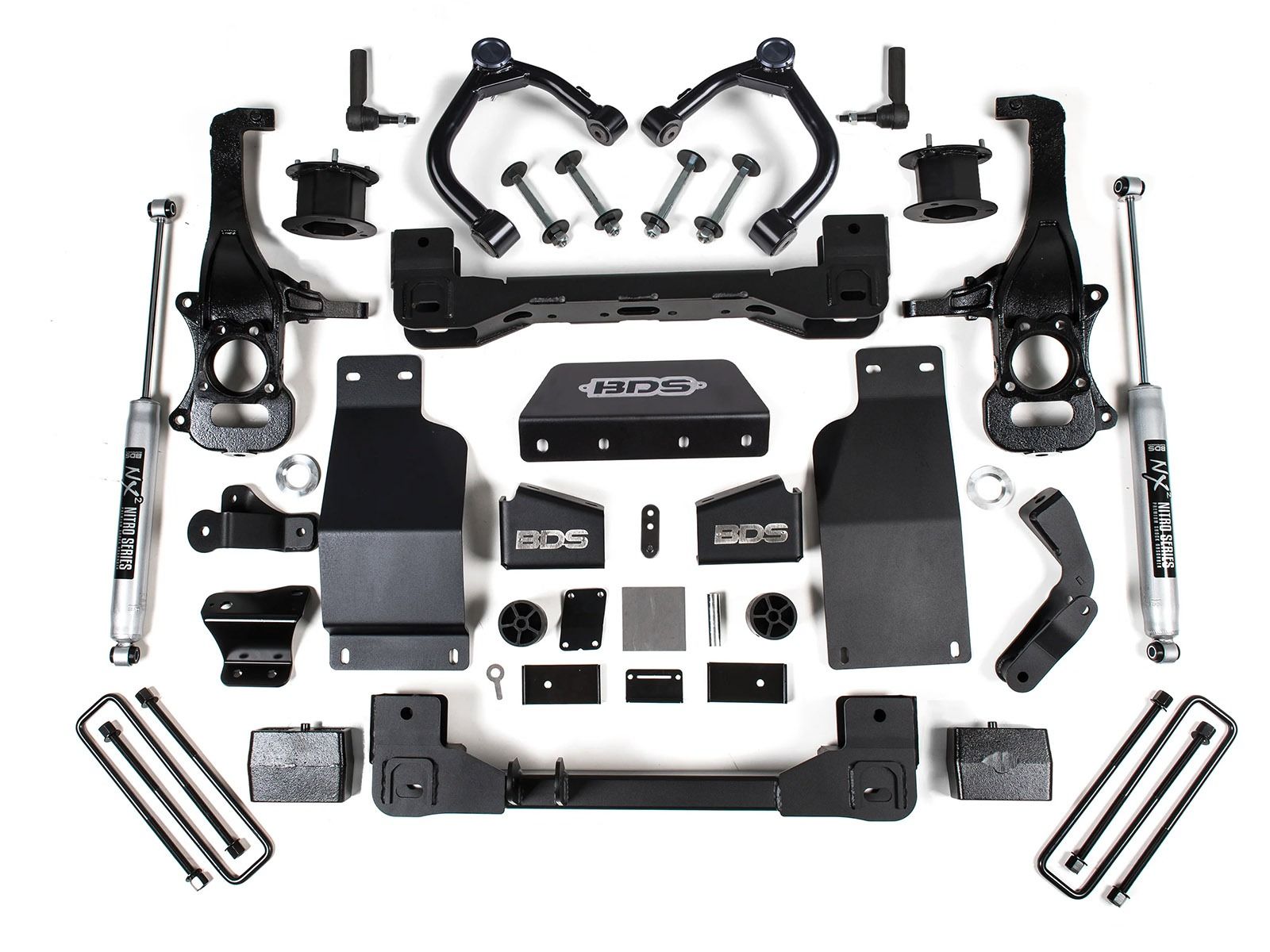

The BDS Suspension BDS1807H/BDS1807FS 4-inch suspension lift kit for the GMC Sierra 1500 AT4 1500 diesel truck allows for the fitment of up to 37-inch diameter tires, providing a great off-road appearance. This is achieved without compromising ride quality and handling, while remaining fully FMWSS 126 compliant. This premium-quality suspension lift kit is built around a set of 1/4-inch-thick steel, laser-cut, high-clearance crossmembers designed to provide maximum clearance and a rock-solid mounting point for the factory lower control arms. The front strut spacer gives additional height to the vehicle. Three-piece heavy-duty front skid plates connect the cross members, protecting steering and driveline components. Correct steering geometry is maintained using new ductile iron steering knuckles that keep the ESC system compatibility, along with tubular upper control arms. CV axle angles are minimized using a multi-point front differential relocation system. The rear end is lifted using 4-inch-tall axle blocks with extended U-bolts.

Features and Benefits:

• Lifts vehicle 4 inch front / 4 inch rear
• 1/4 Inch Steel High Clearance Crossmembers
• 3 Piece Heavy Duty Front Skid Plate
• High Clearance design max clearance
• Tubular upper control arms with rubber bushings and indexed ball joints
• Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
• Multi-Point Front Differential Relocation System
• Allows use of up to 37-inch tires
• Average Install Time: 8 hours
• Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
• Proudly made in the USA, using only premium quality components
• No Fine Print Lifetime Warranty
• FMVSS No. 126 (ESC System) Compliant
• Factory Protection Plus
• Fits a 37" x 12.50" tire w/20 x 9 / 22 x 9 (Chevy) and 5.5" back spacing
• Fits a 35" x 12.50" tire w/20x9 / 22 x 9 (GMC) and 5.5" - 6.25" back spacing
• Fits a 34" x 12.50" tire w/17x8 / 17x9 / 18x9 and 4.5" back spacing
  • *Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
