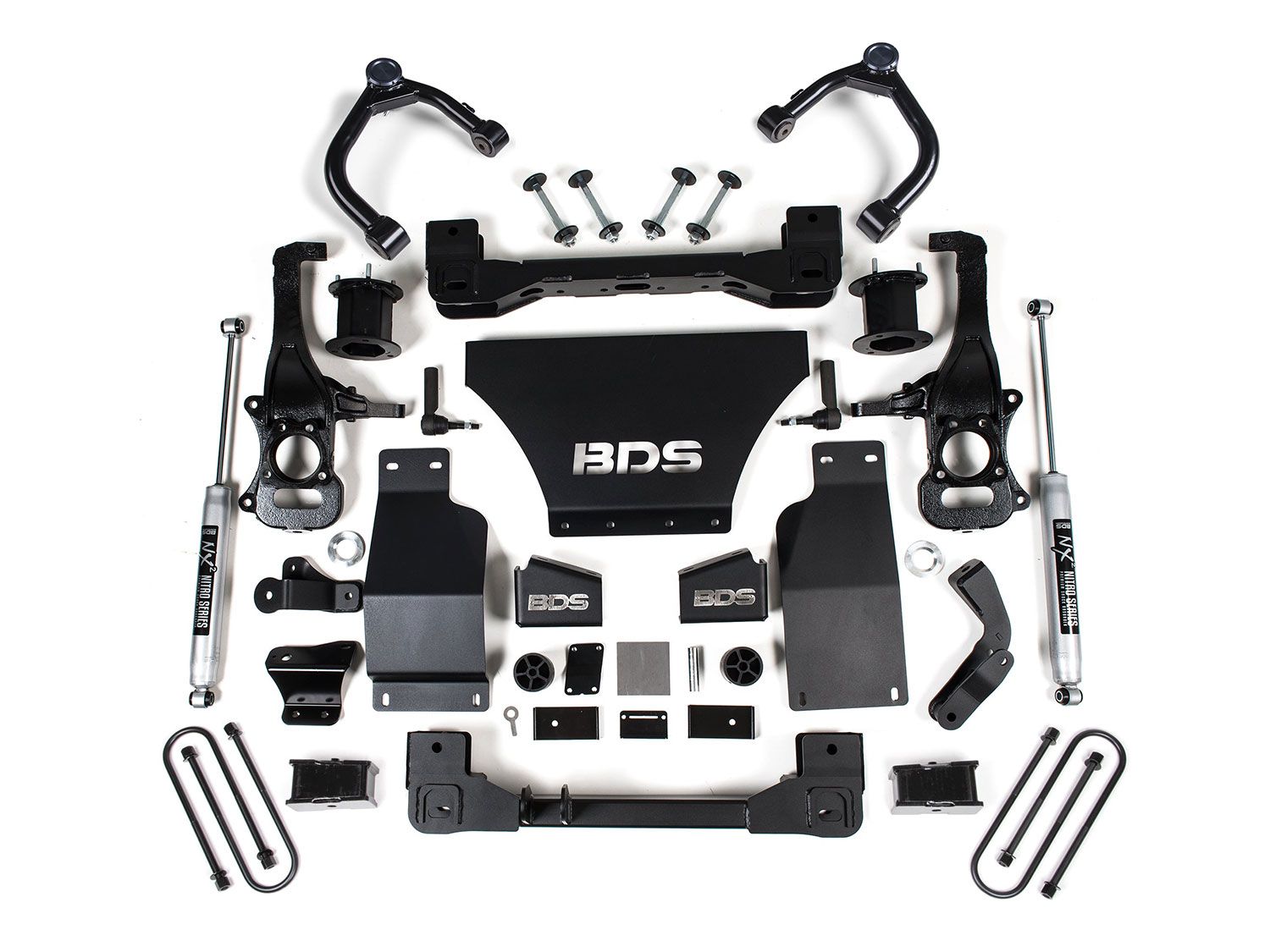

4" 2025-2026 GMC Sierra 1500 4WD Lift Kit by BDS Suspension

Enhance the performance, style, and off-road capability of your GMC Sierra 1500 with the BDS1851H/FS/FSR 4-Inch Suspension Lift Kit. Designed to deliver a leveled, aggressive stance and clearance for up to 33-inch tires, this kit is engineered to handle everything from rugged trails to daily driving with confidence and control.

The front end is outfitted with top-mounted strut spacers (or can be upgraded to Fox snap-ring coilovers), heavy-duty 1/4-inch thick high-clearance crossmembers, CNC-machined ductile iron steering knuckles, and a multi-piece differential relocation system. When combined with sway bar drops, bump stop extensions, CV spacers, brake line brackets, and a skid plate system, this lift kit provides maximum ground clearance and superior protection while maintaining factory steering geometry and ESC system compatibility.

At the rear, a heavy-duty lift block and precision-tuned shocks—either the robust NX2 Nitro Series or premium FOX 2.0 Performance Series—ensure balanced performance, ride comfort, and full load capacity. Choose between strut spacer or FOX 2.0 Performance Series front shock options for tailored ride quality and performance gains. Whether you’re cruising the highway or heading off the beaten path, BDS Suspension’s proven high-clearance design delivers strength, reliability, and the stance your truck deserves.

Features and Benefits:

• 4-inch lift allows clearance for up to 33-inch tires
• High-clearance design improves ground clearance and off-road capability
• Heavy-duty 1/4-inch laser-cut crossmembers paired with a bolt-on skid plate system
• CNC-machined ductile iron steering knuckles maintain ESC system compatibility
• Multi-piece differential relocation brackets improve CV angles and drivability
• Includes sway bar drops, bump stop extensions, brake line brackets, CV spacers, and hardware
• Rear lift block maintains factory ride quality and load capacity
• Factory Protection Plus drivetrain warranty included
• Estimated install time: 8 Hours

Front Shock / Lift Options:

• Strut Spacer: Heavy-duty steel, easy to install, retains factory ride
• FOX 2.0 Performance Series Snap Ring: 2" aluminum body, IFP monotube, race-developed valving, uses factory coil springs

Rear Shock Options:

• NX2 Nitro Series: Twin-tube, nitrogen-charged, 10-stage valving, silver powder coat
• FOX 2.0 Performance Series: IFP monotube, high-flow piston, 5/8" chrome-plated shaft

Recommended tire/wheel fitments (trimming may be required):

• 33 x 12.5 with 17 x 9 and 4.5" backspace
• 33 x 12.5 with 20 x 9 and 5" backspace
• 33 x 12.5 with 20 x 9 and 6.25" backspace

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
