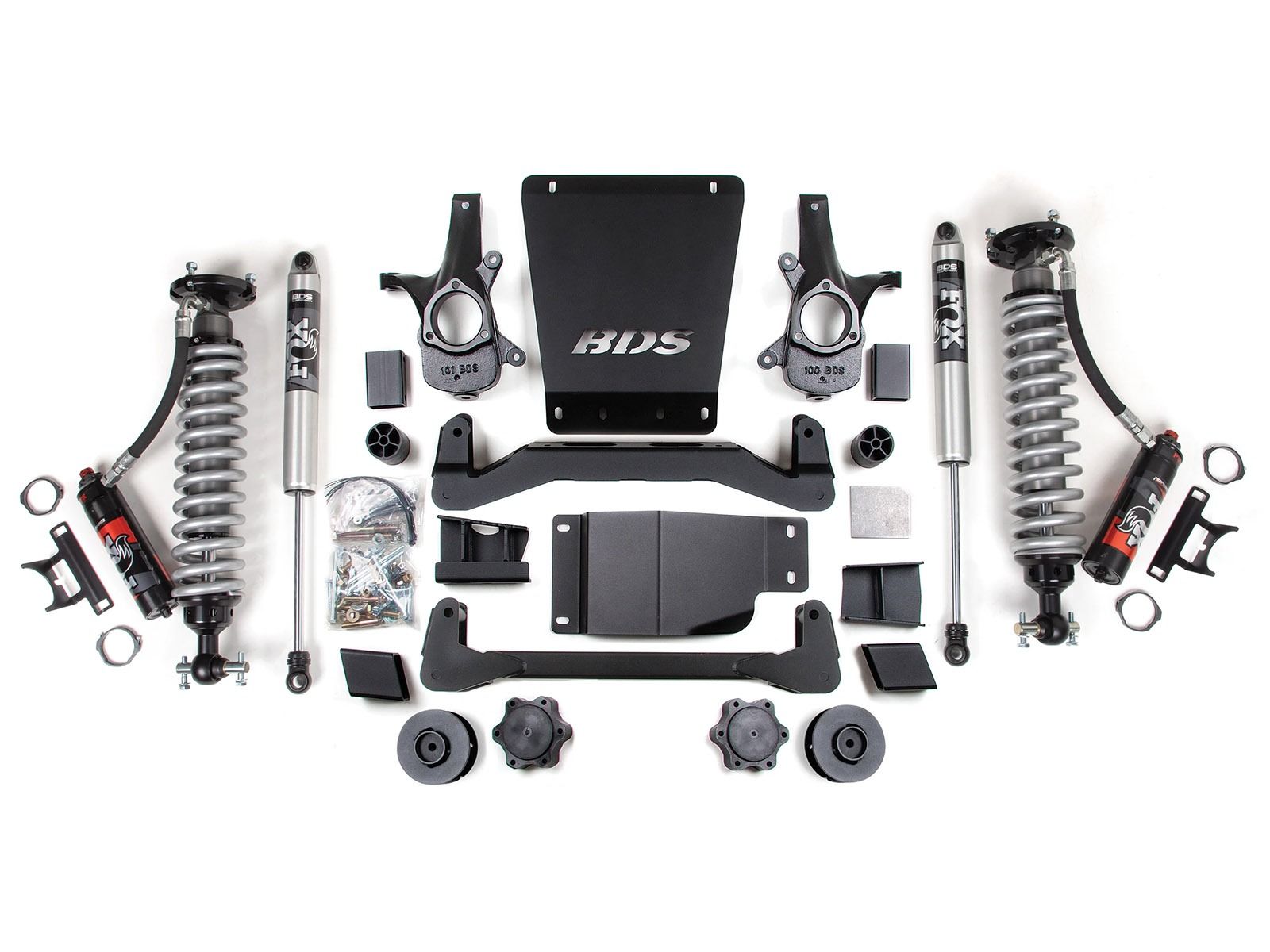

4" 2007-2013 Chevy Avlanche 1500 4WD Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension

Elevate your 2007–2014 Chevy Avalanche 1500 with the BDS188PSS / 900PSS 4-inch premium lift kit, designed to deliver the perfect balance of performance, strength, ride quality, and off-road capability. Built on BDS's proven high-clearance platform, this kit allows up to 33" tires while correcting suspension and steering geometry for smooth, predictable on-road handling and rugged off-road durability.

Featuring FOX Performance Elite 2.5 front coil-overs, engineered to improve stance, capability, and ride quality.  The front suspension setup also includes heavy-duty 1/4-inch steel high-arched crossmembers, multi-piece differential relocation brackets, and a robust skid plate system to shield vital components during off-road adventures. CNC-machined ductile iron steering knuckles ensure precise geometry and are ESC-compatible, maintaining factory handling standards at an elevated ride height.

To complete the transformation, the rear lift features your choice of rear 2-inch lift spacers or 3-inch lift spacers that maintain a factory ride.

The FOX 2.0 Performance Series rear shocks are built with a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum ends, and a large 5/8-inch chrome-plated alloy steel shaft.

Features and Benefits:

• Allows for the use of 33-inch tires
• 4-inch front lift / 2-inch or 3-inch rear lift
• Premium Quality Components
• Fox 2.5 Remote Reservoir Coil-Overs with DSC (Dual Speed Compression) adjuster knobs
• DSC allows for fine-tuning of ride quality (from smooth to firm) depending on road conditions
• FOX 2.0 Performance Series Rear Shocks: 2" impact extruded aluminum body and IFP monotube design, 5/8" chrome-plated alloy steel shaft, Race-developed high-flow piston design with application-specific valving
• High Clearance Crossmembers for Maximum Clearance
• Heavy-Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Best Quality and Engineering in the Industry
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 8 Hours

Tire and Wheel Combinations:

• 32 inch x 11.5 inch w/ 17 x 8 and 4.5 inch back spacing
• 33 inch x 12.5 inch w/ 18 x 9 and 5 inch back spacing
• 33 inch x 12.5 inch w/ 20 x 9 and 5.75 inch back spacing

Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
