3-4" 2021-2024 Ford Bronco (4-door) Fox 3.0 Bypass Factory Race Series Coilover Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1905FRS
$7878.21
- +
7878.210000

3-4" 2021-2024 Ford Bronco (4-door) Fox 3.0 Bypass Factory Race Series Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1905FRS
Special Price $7,878.21 Regular Price $8,292.85

3-4" 2021-2024 Ford Bronco (4-door) Fox 3.0 Bypass Factory Race Series Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1905FRS
Special Price $7,878.21 Regular Price $8,292.85


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

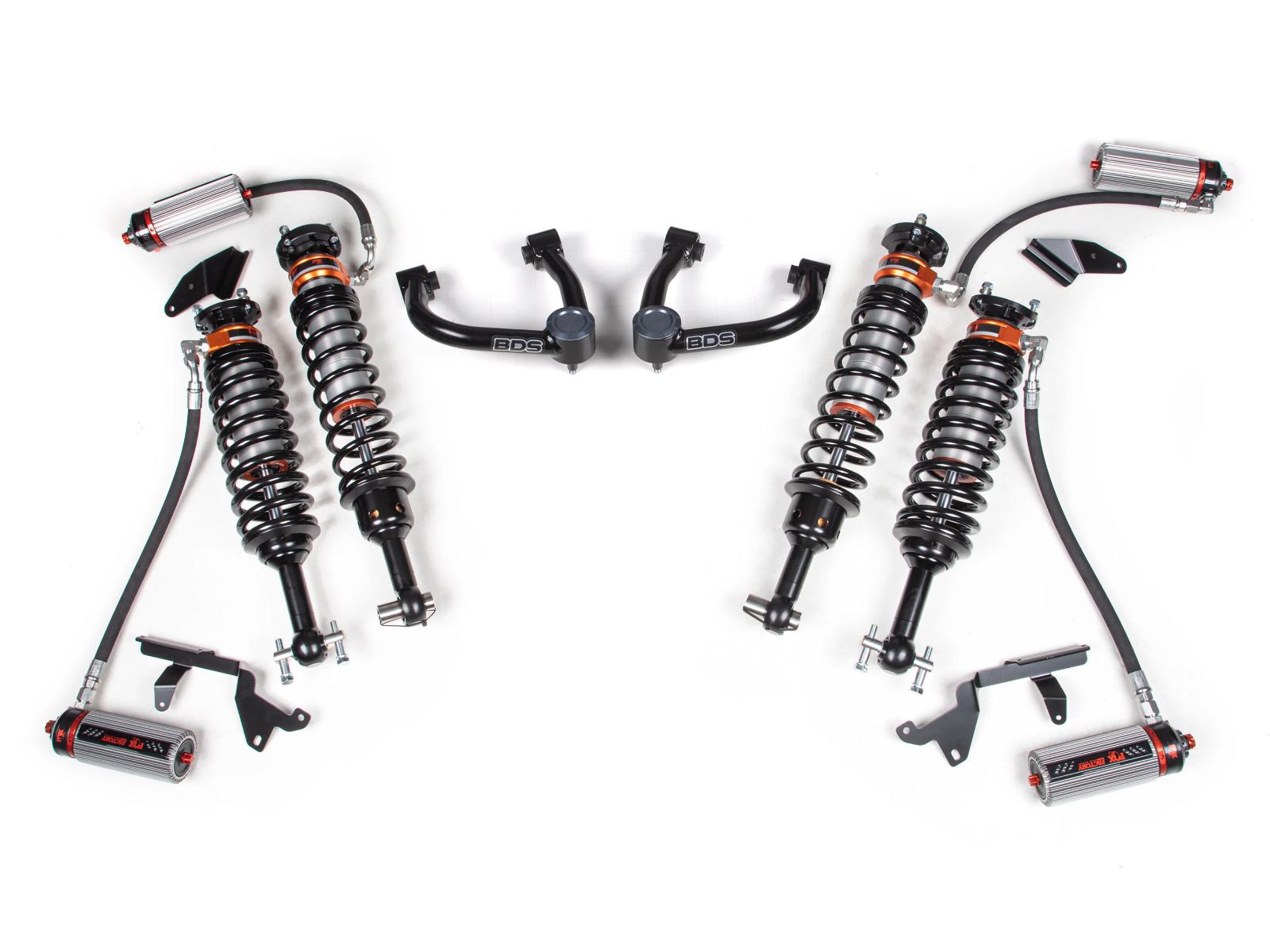

Enhance the look and performance of your Ford Bronco 4-Door with the 1905FRS Lift Kit, BDS's premium 3 to 4-inch lift kit featuring FOX Factory Race Series 3.0 coil-over shocks from BDS Suspension. Made to elevate stance, optimize performance, and boost capability, this comprehensive kit equips your Bronco with clearance for up to 37" tires.

The lift kit boasts FOX Factory Race Series 3.0 coil-over shocks at the front alongside heavy-duty tubular upper control arms, ensuring enhanced strength and durability. In the rear, BDS pairs these with FOX 3.0 Factory Race Series coil-over shocks for unmatched ride quality. The actual lift height achieved depends on the factory suspension configuration: 4-Door Sasquatch-equipped models receive a net lift of 3", 4-Door Badlands see a net lift of 3.5", and 4-Door Broncos with the base suspension achieve a net lift of 4".

Fox Factory Race Series 3.0 Internal Bypass Shocks:

The FOX Factory Race Series 3.0 Internal Bypass shocks included in this kit for the Ford Bronco are engineered with position-sensitive damping technology and Dual Speed Compression (DSC) adjustment, ensuring optimal performance in various driving conditions. Patented Internal Bypass technology allows for precise damping control across multiple zones, resulting in a smooth and confident ride over rough terrain. These shocks maintain cooler fluid temperatures for consistent performance with finned external reservoirs and aluminum shock bodies. The DSC adjuster enables customization to suit your load, environment, and driving preferences.

Tubular Upper Control Arms:

Constructed for durability and increased travel, the HD Upper Control Arms (UCA) feature 1.5" OD x .120-wall tubular construction and indexed ball joint cups, correcting ball joint positioning for enhanced down travel and camber adjustment. Durometer-specific rubber bushings at the frame mounting ends ensure maintenance-free operation, while quality greaseable ball joints at the other end offer smooth, quiet performance and exceptional durability. Finished in a resilient black powder coat with billet aluminum dust caps, these arms are ready for installation straight out of the box.

Lift Kit Features and Benefits:

  • Provides 2.5-inch front lift / 3-inch rear lift
  • Ultra-Premium Suspension System
  • Tubular upper control arms improve suspension travel
  • Allows for the use of 37" tires
  • Includes Fox 3.0 Bypass Factory Race Series Coilovers
  • Coilovers features DSC (dual speed compression) ride adjustments with a turn of a dial
  • Estimated Install Time: up to 3-4 hours
  • No Fine Print Lifetime Warranty
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA

Model Lift Heights (lift amount varies depending on model)

  • Sasquatch 4-Door - 3 Inches of Lift
  • Badlands 4-Door - 3.5 Inches of Lift
  • Standard Model 4-Door - 4 Inches of Lift

Fox 3.0 Bypass Factory Race Series Coilover Features:

  • 3.0 inch CNC Machined 6061-T6 Aluminum Body
  • Aluminum body dissipates heat three times faster than steel body
  • Excellent ride quality and off-road performance
  • Reservoirs include Dual Speed Compression (DSC) Adjusters to fine-tune ride firmness or softness at high and low speeds (10 low-speed settings, 12 high-speed settings)
  • Race-developed high-flow piston design
  • Clear Anodized Finish
  • Coil Springs are application-specific
  • 7/8" hard chrome-plated steel shafts
  • Application specific valving
  • Quiet nitrile rubber bushings

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium-quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty, guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Not compatible with Raptor models
  • Is compatible with HOSS 3.0 Bronco models
  • Lift height is based on the base suspension package. Badlands and Sasquatch models will net less lift; however, the final ride height is the same for all trims
  • TDo NOT hit the aluminum knuckle with a hammer to separate the ball joint; use the appropriate ball joint separation tool
  • Does NOT fit Bronco Sport models
  • NOT designed for 2-door models
  • Vehicle Fitment
    MakeFord
    ModelBronco
    Year Fitment2024, 2023, 2022, 2021
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1905FRS
    Item Numberbds_1905frs
    Product LineLift Kits
    Lift Height3 inch
