6" 1988-1998 Chevy 1500/2500 Pickup 6 lug 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 193H
As low as $2,172.60

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

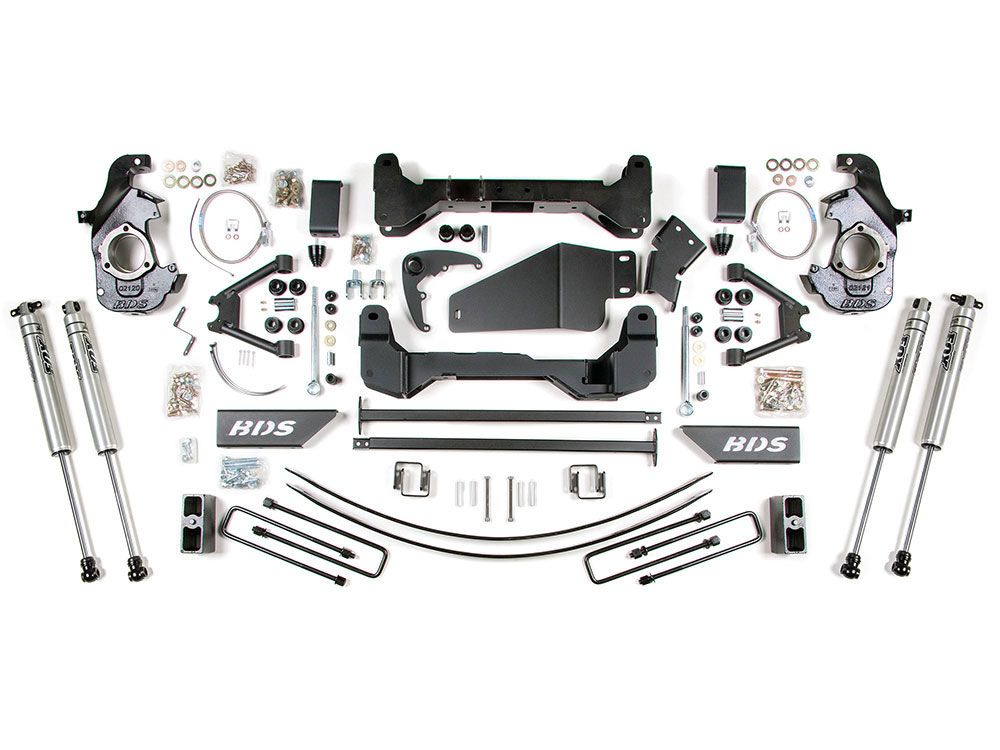

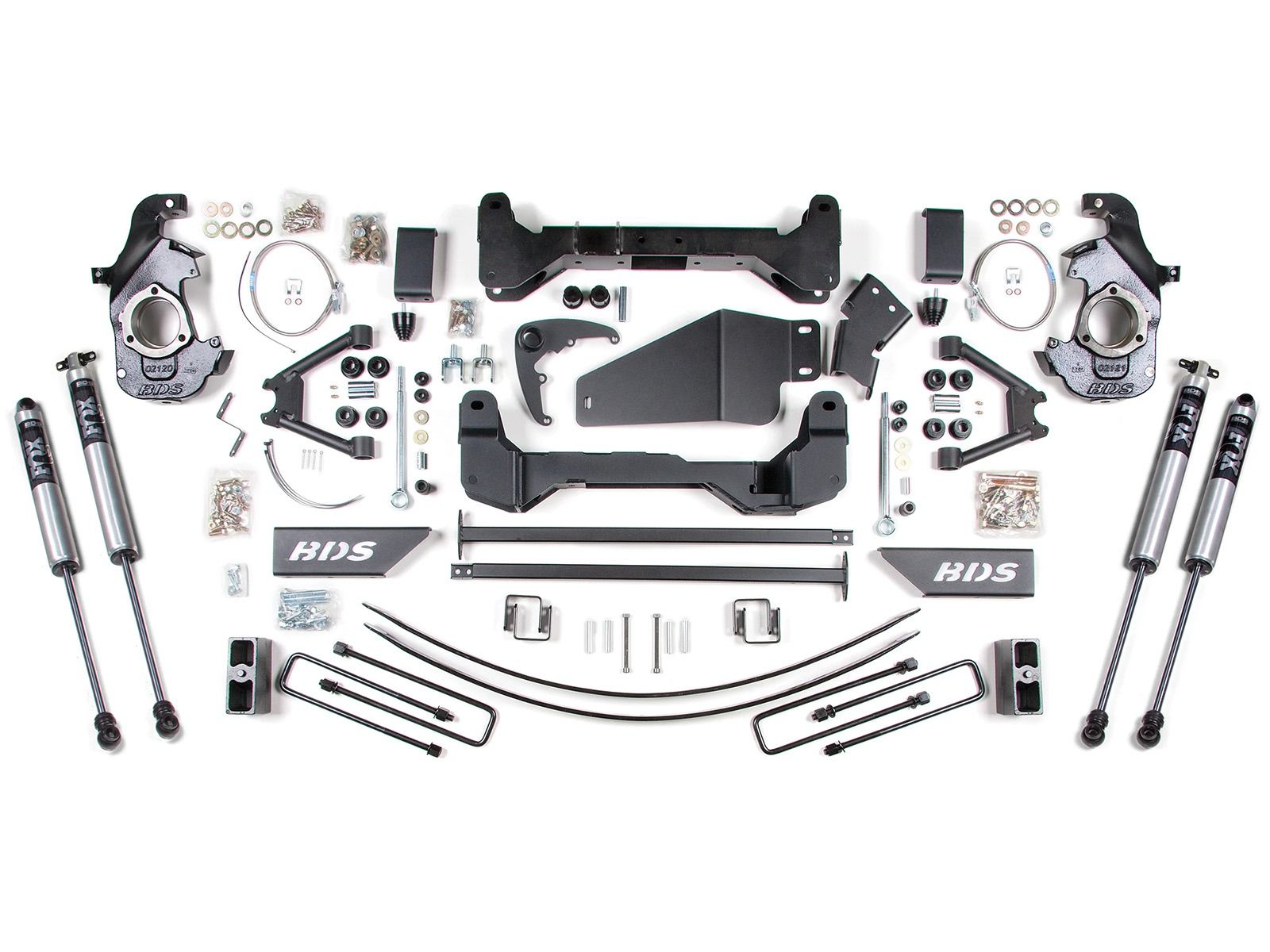

BDS 193H Suspension 6 inch Lift Kit for 1988-1998 Chevy 4WD K1500 1/2 ton and K2500 6 lug 3/4 ton pickup trucks is designed around two heavy duty upper A-arms, one-piece 1/4" laser cut high clearance crossmembers and replacement steering knuckles. This combination offers zero track width change unlike many knuckle kits on the market.

The high clearance crossmembers increase ground clearance for off road performance while compression struts support the crossmembers under impact. This lift kit also includes replacement steering knuckles to maintain proper steering angles and ball joint angles, front stainless steel braided brake lines for optimum performance and ease of installation, plus a differential skid plate is included for off road protection.

Features and Benefits:

  • BDS NX2 Nitro Gas Shocks or Optional Fox 2.0 Performance Shocks

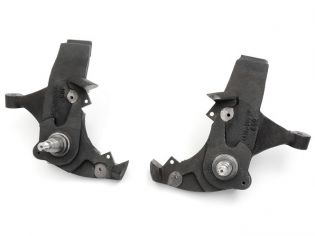

  • Cast Iron Steering Knuckles
  • Heavy Duty Upper A-Arms
  • One-Piece Front & Rear Crossmembers
  • Zero Track Width Change (unlike most kit on the market)

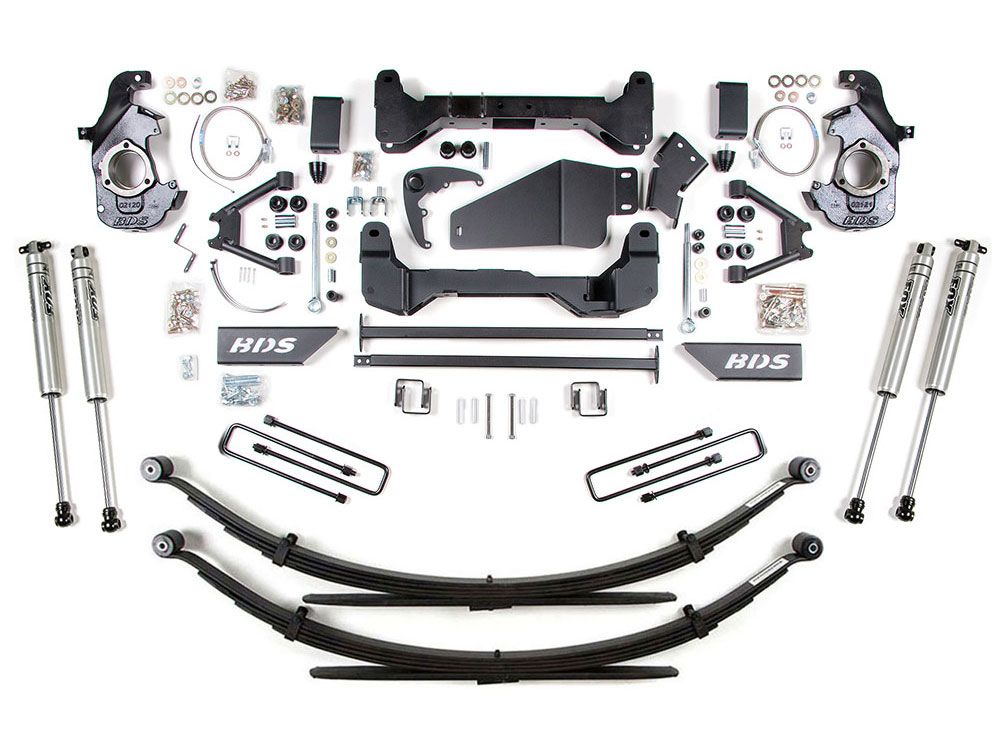

  • Rear Blocks and Extended U-bolts or Optional Glide Ride Rear Springs
  • Estimated Install Time: 8 hours
  • Difficulty Leve (easy 1-5- complicated): 4
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA
  • Fits a 35 inch x 12.50 inch w/18 x8 and 3-5/8 inch back spacing
  • Fits a 35 inch x 12.50 inch w/16 or 17 x 8 and 4.5 inch back spacing
  • 35 inch x 12.50 inch w/20 x 9 and 5.25 inch back spacing
  • Trimming may be required

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. They back their commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with the unique "No Fine Print Lifetime Warranty".
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Important Notes
  • Requires exhaust modification
  • Special tool (Kent Moore Tools Part #J-36202-A) required to unload/load torsion bars. Not available through BDS
  • Requires frame bracket modification and differential mount modification
  • Not recommended for long box extended cab models due to crossmember interference
  • All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac
  • Aftermarket wheels required. (see chart in back)
  • System will not work on some '88-'95 vehicles equipped with spindle mounted front ABS sensor
  • Traction bars will not work on regular cab, short box models
  • Vehicle Fitment
    ModelPickup 1500
    Year Fitment1998, 1997, 1996, 1995, 1994, 1993, 1992, 1991, 1990, 1989, 1988
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number193H
    Item Numberbds_193h
    Product LineLift Kits
    Lift Height6 inch
