5.5" 2014-2018 Dodge Ram 2500 4WD (w/gas engine) Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS2101H / BDS2101FS
From $2,207.41 Regular Price $2,323.59


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

BDS Suspension's BDS2101H Radius Arm Lift Kit for the 2014-2018 Dodge Ram 2500 4wd (with gas engine) will raise your vehicle 5.5 inches which will allow use of 37 inch tires to improve off-roading performance while keeping great handling and ride quality.

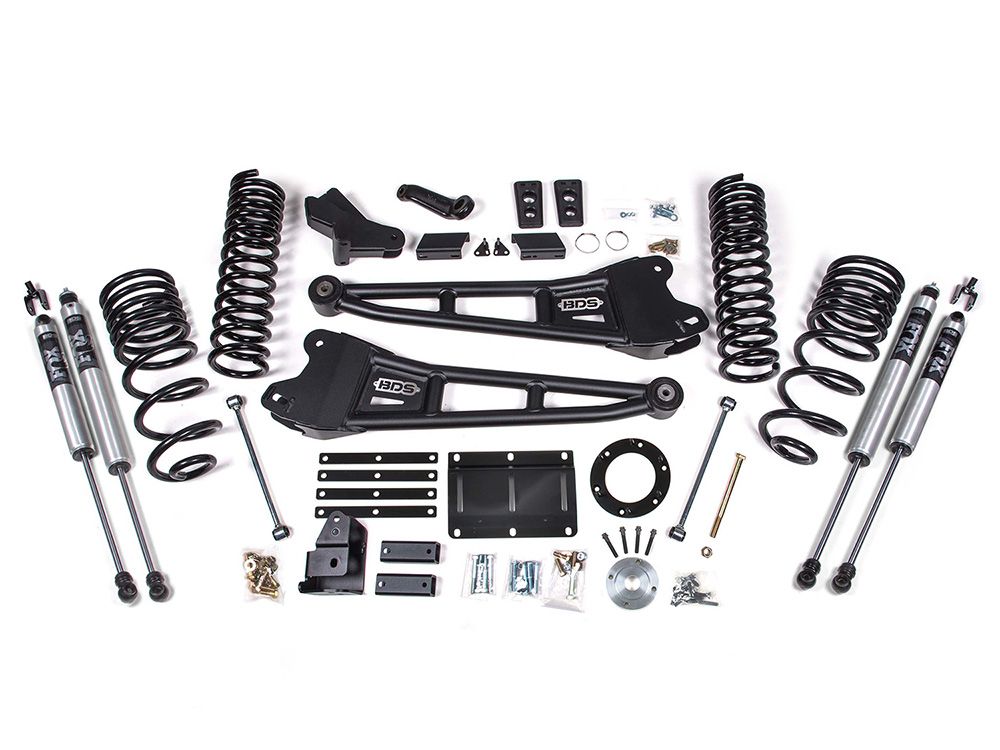

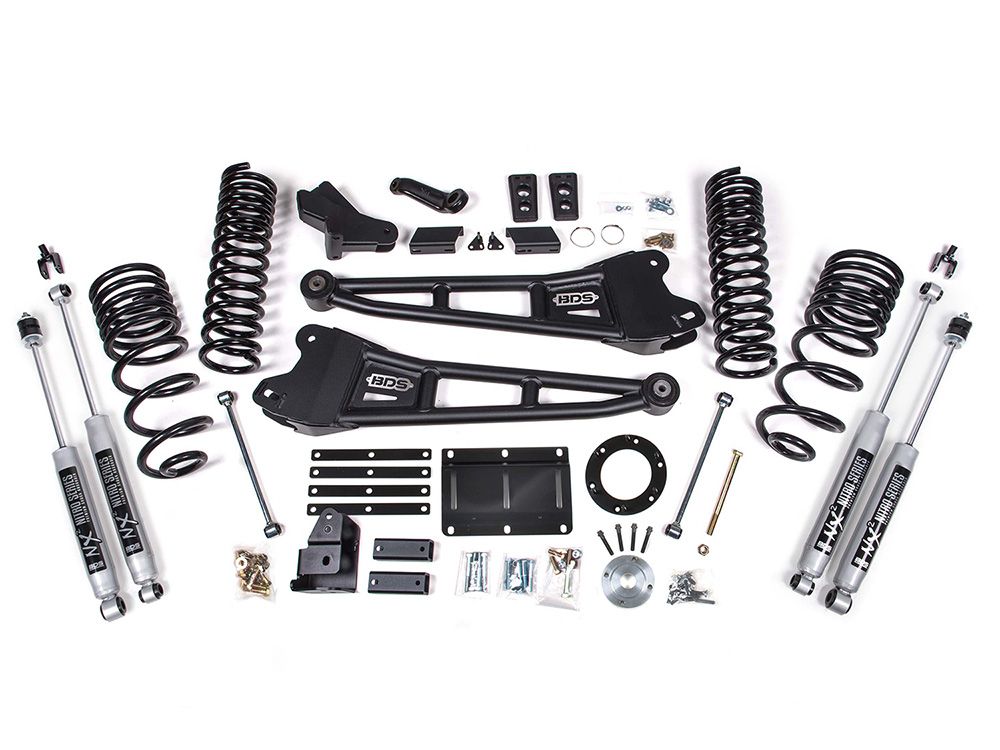

This premium quality suspension lift kit is built around a set of heavy duty radius arms, front and rear progressive rate coil springs and your choice of BDS or Fox gas shocks. The coil springs are designed to maintain a comfortable ride while also being able to handle the most harsh off-road conditions. To maintain the front suspension's geometry massive tubular radius arms are used that bolt-in the factory mounts. A forged drop pitman arm keep steering angles in check while a track bar relocation bracket centers the front axle. Also included are front sway bar drop brackets and extended bump stops. Lastly a heavy duty replacement transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines.

The rear of the vehicle uses 4 lift height coil springs designed to give the Ram a level stance. Extended rear sway bar end-links and a rear track bar bracket are also included.

Features and Benefits:

  • 5.5 inch front lift / 4 inch rear lift
  • Allows use of up to 37 inch diameter tires
  • Heavy Duty Tubular Replacement Radius Arms
  • Forged Drop Pitman Arm
  • Progressive Rate Front Coil Springs
  • Transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines
  • Front and Rear Track Bar Relocation Brackets (to keep axles centered)
  • Average install time: 6-8 hours
  • Choose from BDS NX2 or Fox 2.0 Performance Shocks
  • Made in the USA using only Premium Components
  • No Fine Print Lifetime Warranty
  • Fits a 37" x 12.50 w/20" x 9" tires and 4.5 - 5.625" backspacing
    • *Trimming may be required*

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.

Important Notes1. Not for use with factory rear airbag suspensions
2. Will not fit RAM 2500 Powerwagon models.
3. Will not fit Cab and Chassis models
4. Indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicle could have 8 bolt transfer cases
Vehicle Fitment
MakeDodge
ModelRam 2500
Year Fitment2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS2101H / BDS2101FS
Item Numberbds_bds2101h
MPN(UPC)840416413168
Product LineLift Kits
Lift Height6 inch
