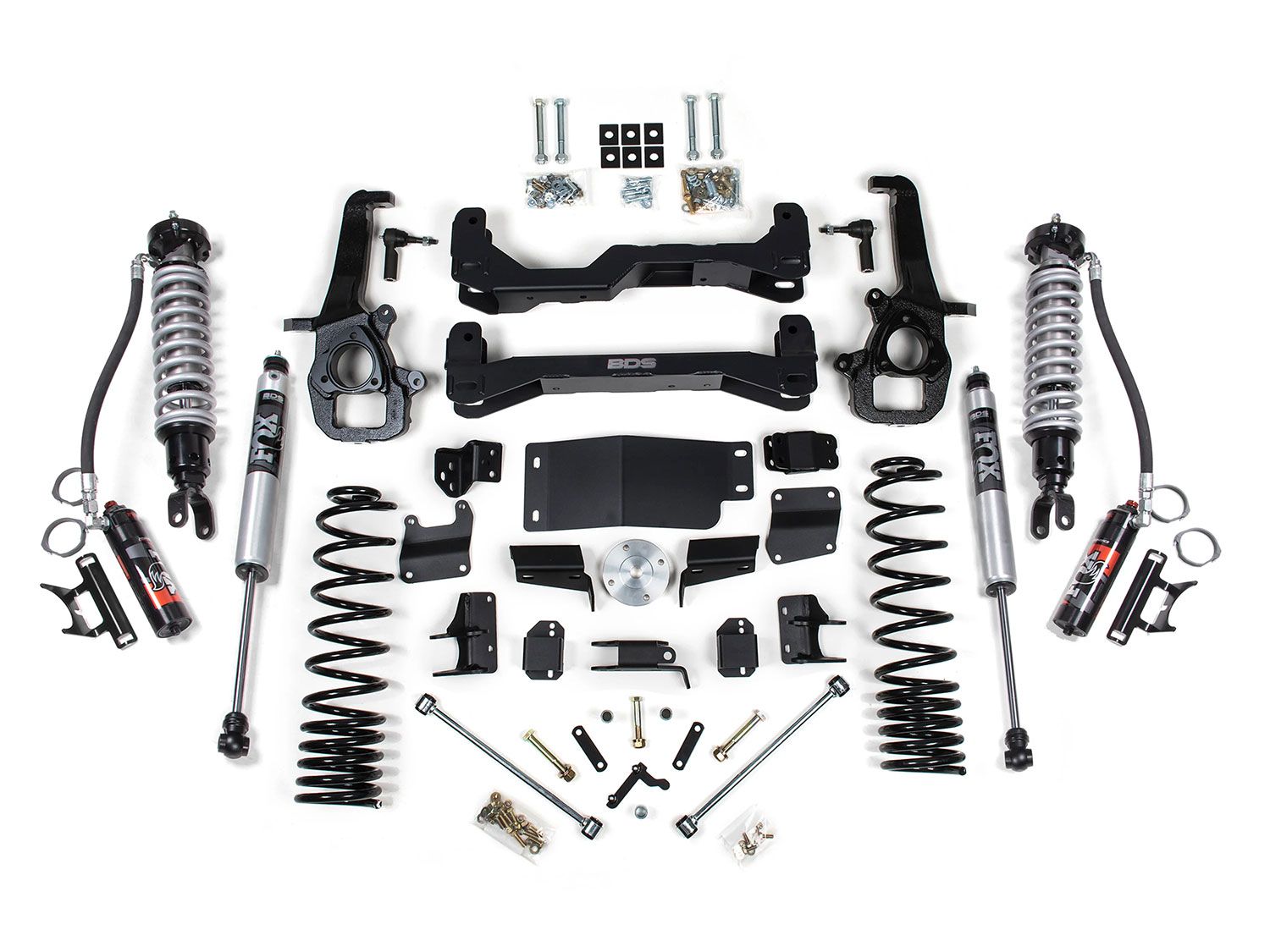

5" 2025-2026 Dodge Ram 1500 Rebel 4WD Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension

Equip your RAM 1500 Rebel with BDS's 2120PSS / 2120PES premium coil-over suspension 5-inch lift kit featuring the renowned FOX 2.5 Performance Elite Coil-over shocks, and get ready to conquer the trails. This kit enhances travel and exceptional off-road performance while maintaining smooth on-road comfort. Engineered for superior stance, performance, and capability, it provides all the necessary components to fit up to 37" tires with ease.

The BDS high-clearance design is a hallmark of this kit, offering improved ground clearance, increased strength, and robust off-road protection. The front setup features FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel cross-members, multipiece differential relocation brackets, and heavy-duty skid plates for unmatched durability. The suspension and steering geometry are expertly corrected with CNC-machined ductile iron steering knuckles and replacement tie rod ends, ensuring compatibility with the ESC system. Additional components, such as sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, and supplied hardware, make this front suspension lift a complete solution for any adventure.

In the rear, the kit features progressive-rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct the pinion angle, and a track bar relocation bracket for precise axle positioning. Bump stop extensions and sway bar links further enhance the rear setup, completed with your choice between FOX 2.0 IFP performance series gas shocks or FOX 2.5 Performance Elite shocks, delivering improved damping performance. With this comprehensive lift kit, your RAM 1500 will be equipped to tackle any terrain with confidence.

Features and Benefits:

• 5-inch front lift / 4-inch rear lift
• FOX 2.5 Shocks are engineered for enhanced travel and superior terrain absorption.
• DSC (Dual Speed Compression) adjuster offers versatile and precise tuning with easy knob adjustments.
• High-clearance crossmember design optimizes ground clearance.
• Robust steering knuckles ensure compliance with the ESC system.
• Estimated install time: 8-10 hours
• Heavy-duty skid plate system enhances off-road protection.
• Multipoint differential relocation brackets secure the front axle and improve CV angles.
• FOX Performance Series IFP rear shocks enhance ride quality and off-road performance.
• Includes Factory Protection Plus drivetrain warranty.
• Fits 37 x 12.5 tires with 18 x 9 wheels and 5 in. Backspace
• Fits 37 x 12.5 tires with 20 x 9 wheels and 5 in. Backspace

FOX 2.0 Performance Series Shocks

• 2-inch impact-extruded aluminum body with clear anodized finish
• IFP monotube design with a race-developed high-flow piston
• 5/8-inch hard chrome plated alloy steel shaft
• CNC machined 6061-T6 aluminum mounting ends
• Application-specific valving for optimized performance

FOX 2.5 Performance Elite Series Shocks

• 2.5-inch impact-extruded aluminum body with external reservoir
• 7/8-inch hard chrome-plated alloy steel shaft
• DSC - Dual Speed Compression Adjuster for customizable performance
• Enhanced off-road capabilities with adjustable settings for terrain, load, and speed
• Fully serviceable for long-term use
• 1-year Manufacturer's Warranty

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase.
