4" 2025-2026 Dodge Ram 3500 4WD (w/Diesel Engine) Fox 2.5 Performance Coilover Lift Kit (w/Radius Arms) by BDS Suspension

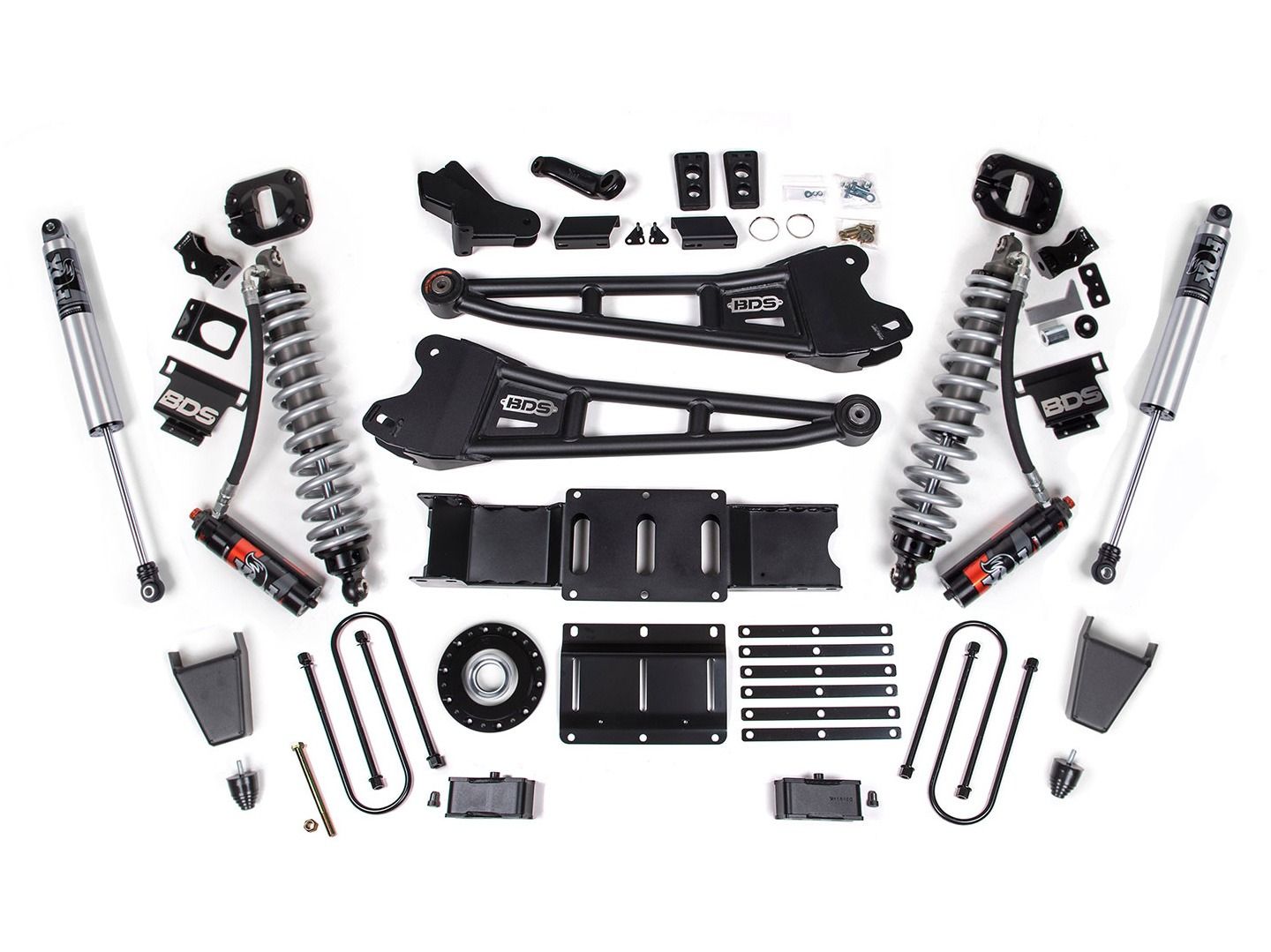

The BDS Suspension 2167PPS 4-Inch Extended Travel Radius Arm Coilover Lift Kit for diesel-powered Ram 3500 trucks combines premium FOX suspension performance with heavy-duty BDS components for improved ride quality, handling, and off-road capability. Designed to accommodate up to 37-inch tires, this system delivers a more aggressive stance while maintaining proper suspension geometry and excellent everyday drivability.

Up front, the factory coil springs and shocks are replaced with FOX 2.5 Performance Elite remote-reservoir coilovers, specifically tuned for the weight and ride height of the diesel Ram 3500. These premium coilovers feature DSC (Dual Speed Compression) adjustment, allowing independent tuning of high- and low-speed compression damping for changing terrain, loads, and driving conditions.

Heavy-duty tubular BDS radius arms properly position the front axle and restore caster at the new ride height, improving straight-line stability, steering return-to-center, braking control, and overall handling. A forged adjustable front track bar allows precise axle centering, while sway bar and brake line correction components maintain proper suspension operation throughout the increased travel.

This extended-travel system also includes a 10-bolt transfer case indexing ring that corrects driveline geometry and allows additional suspension droop. In the rear, lift is achieved using a high-strength fabricated lift block with longer U-bolts. Rear shock options include FOX 2.5 Performance Series HTO or FOX 2.5 Performance Elite shocks for balanced performance front to rear.

The kit can also be configured with factory-style rubber bump stops or upgraded FOX 2.0 Factory Race Series hydraulic bump stops for additional bottom-out control during aggressive off-road use.

Features & Benefits

• Provides 4 inches of lift for diesel-powered Ram 3500 trucks
• Clearance for up to 37-inch tires
• FOX 2.5 Performance Elite remote reservoir front coilovers with DSC adjustment
• Heavy-duty tubular radius arms improve strength, caster control, and handling
• Forged adjustable front track bar allows precise axle centering
• Transfer case indexing ring corrects driveline angles and increases suspension droop
• Front sway bar and brake line correction components included
• Fabricated rear lift block with longer U-bolts
• Choice of FOX 2.5 Performance Series HTO or FOX 2.5 Performance Elite rear shocks
• Choice of rubber or FOX 2.0 Factory Race Series hydraulic bump stops

Recommended Tires & Wheels

Trimming may be required.

• 37 x 12.5 with 20 x 9 wheels and 5.625" backspacing
• 35 x 12.5 with 20 x 9 wheels and 4.5" backspacing
• 35 x 12.5 with 18 x 9 wheels and 4.5" backspacing

Rear Shock Options

• FOX 2.5 Performance Series HTO: Position-sensitive Hydraulic Top Out technology provides additional rebound control near full extension.
• FOX 2.5 Performance Elite: Remote reservoir design with DSC compression adjustment for maximum tuning and off-road performance.
