4" 1980-1996 Ford F150 4WD Radius Arm Lift Kit by BDS Suspension

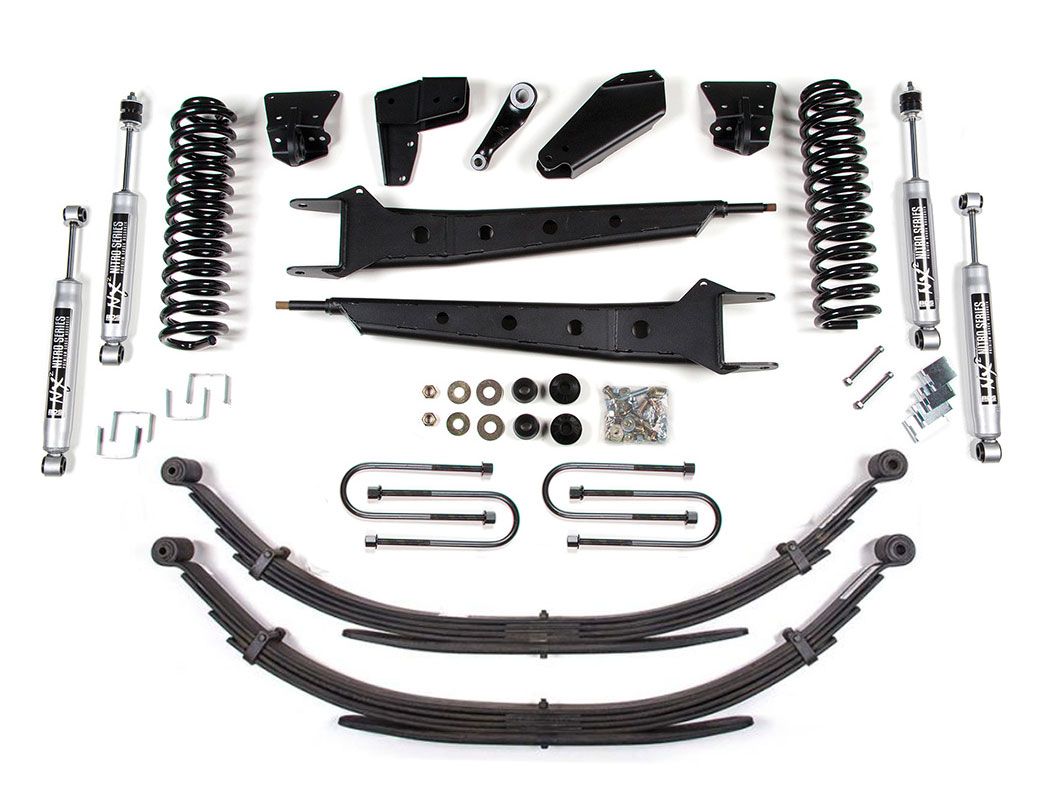

The BDS Suspension BDS502H 4 inch premium lift kit for the Ford F150 4WD truck will allow for fitment of up to 33 inch diameter tires for a great off-road look. Built around front Pro-Ride Coil Springs, a drop pitman arm for steering correction, heavy duty radius arms and axle pivot relocation brackets. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

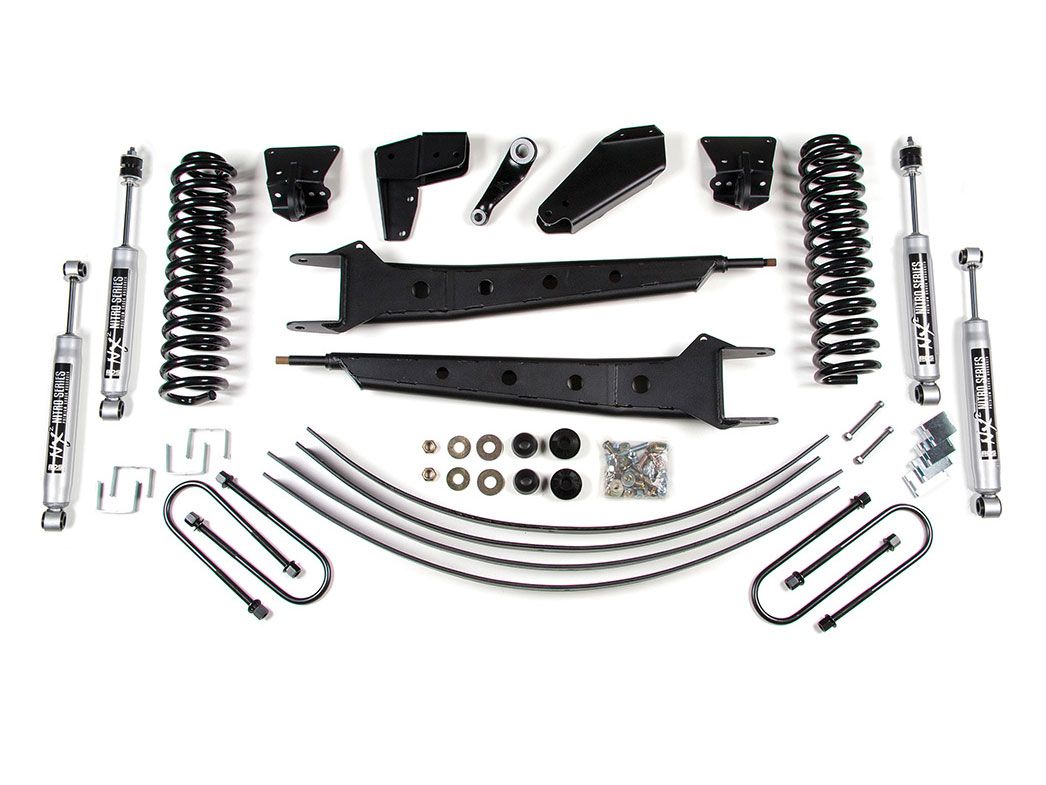

Rear lift kit comes with new custom valved NX2 series shocks and is lifted via 2" block and u-bolt kit for easy installation. Rear options include a dual add-a-leaf kit or complete new BDS Glide-Ride Leaf Springs.

Features and Benefits:

• Allows use of up to 33 inch diameter tires
• Premium quality components
• Heavy Duty Radius Arms included for better suspension handling and performance
• Drop axle pivot bracket keep proper suspension geometry
• Includes (4) BDS NX2 Nitro Gas Shocks
• Average install time: 8 hours
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 33 inch x 12.5 inch w/ 15 inch x 8 tires and 3.5 inch backspacing

  • *Trimming may be required*

All Possible SKUs Depending on Options Selected: BDS502H, BDS504H, BDS506H, BDS529H

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
