4" 2009-2013 Ford F150 4WD Lift Kit by BDS Suspension

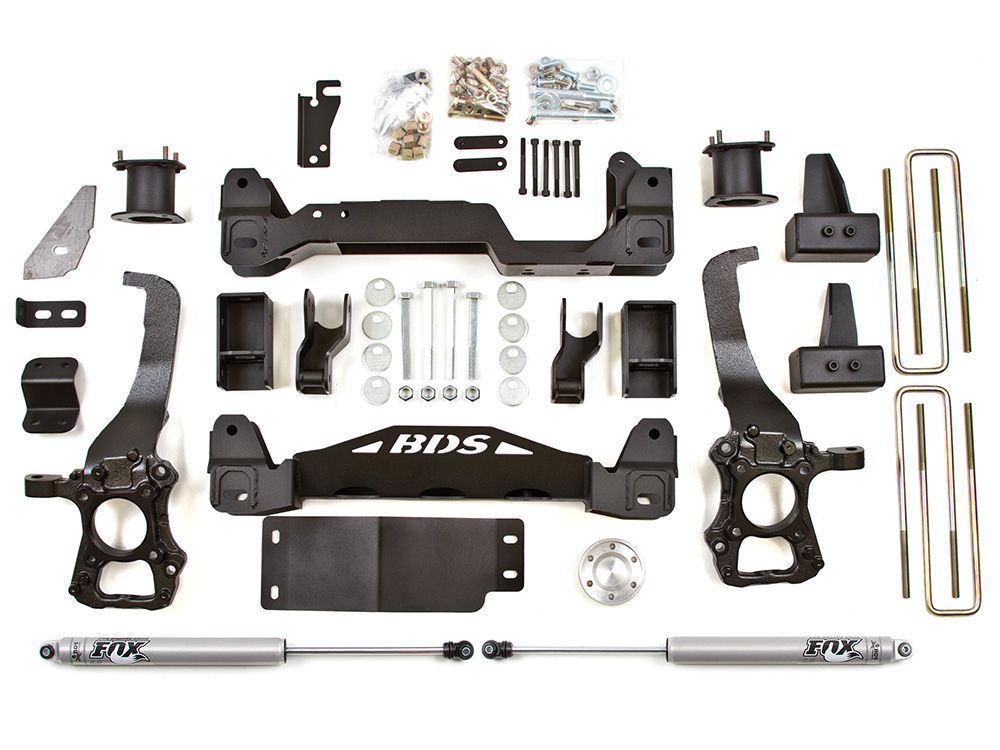

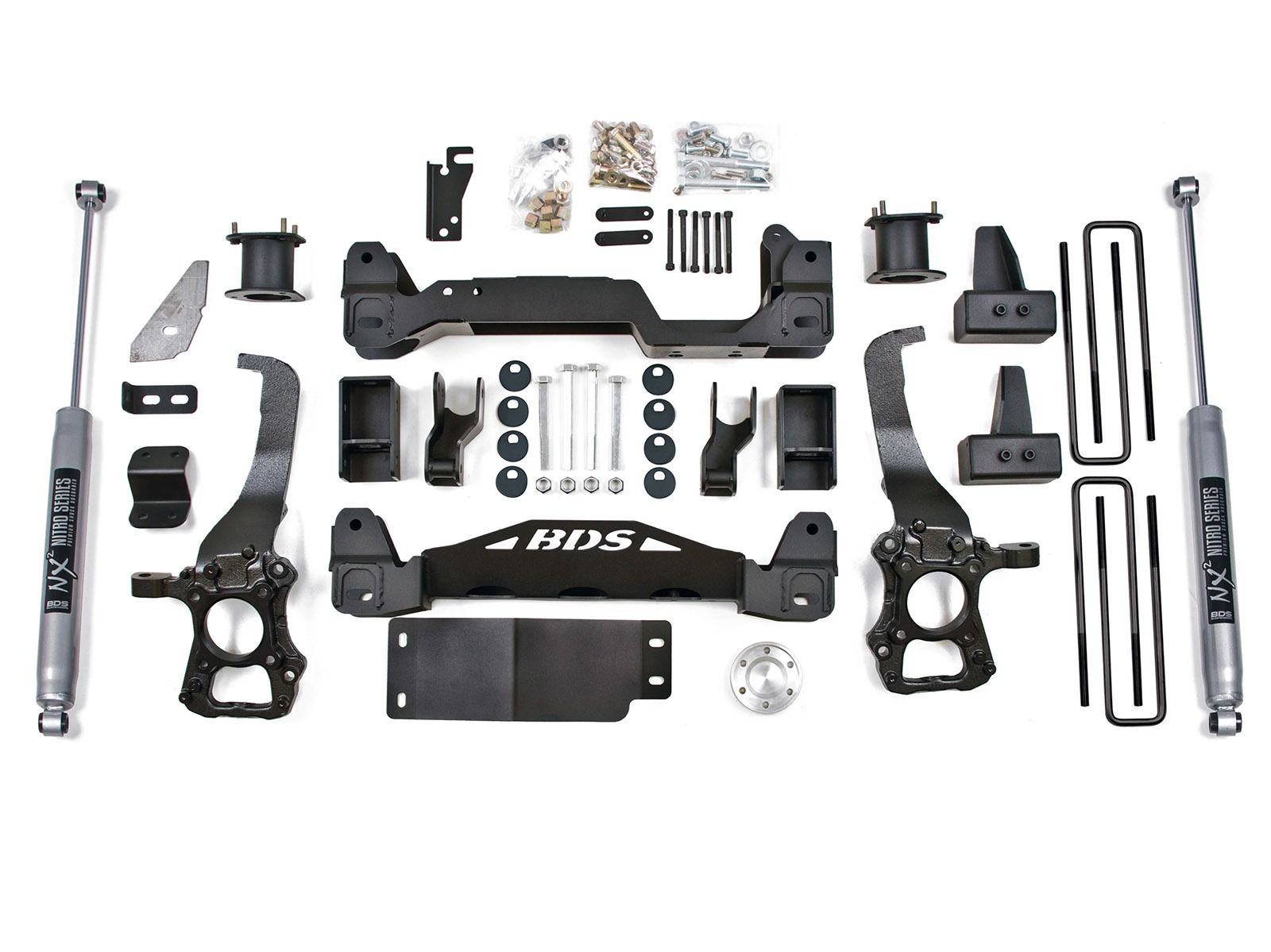

The BDS Suspension BDS598H 4 inch premium lift kit for the Ford F150 4WD truck will allow for fitment of up to 35 inch diameter tires for a great off-road look. This system includes CNC machined steering knuckles to return your vehicle's steering to factory geometry. One piece front & rear High Clearance crossmembers increase rigidity for long term performance as well as dramatically increase ground clearance and curb appeal. A 1/4" thick steel differential skid plate and is included to ensure off road protection. This system uses upper front strut spacers to ease installation.

The rear is lifted with a new offset 4" rear block that replaces the factory 1 1/4" block and centers the rear axle to clear up to 35's. Optional 2 inch blocks are available as an option for a slightly low rear stance.

Features and Benefits:

• Allows use 35 inch diameter tires
• Premium Quality Components
• Fox 2.0 Performance Rear Shocks or BDS NX2 Shocks
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Powder Coated for Durability
• Estimated Install Time: 8-10 hours
• No Fine Print Lifetime Warranty
• Fits a 35" x 12.50" tire w/18 x 9 and 5" back spacing
• Fits a 35" x 12.50" tire w/20 x 9 and 4.5-5.5" back spacing

  • *May require trimming*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
