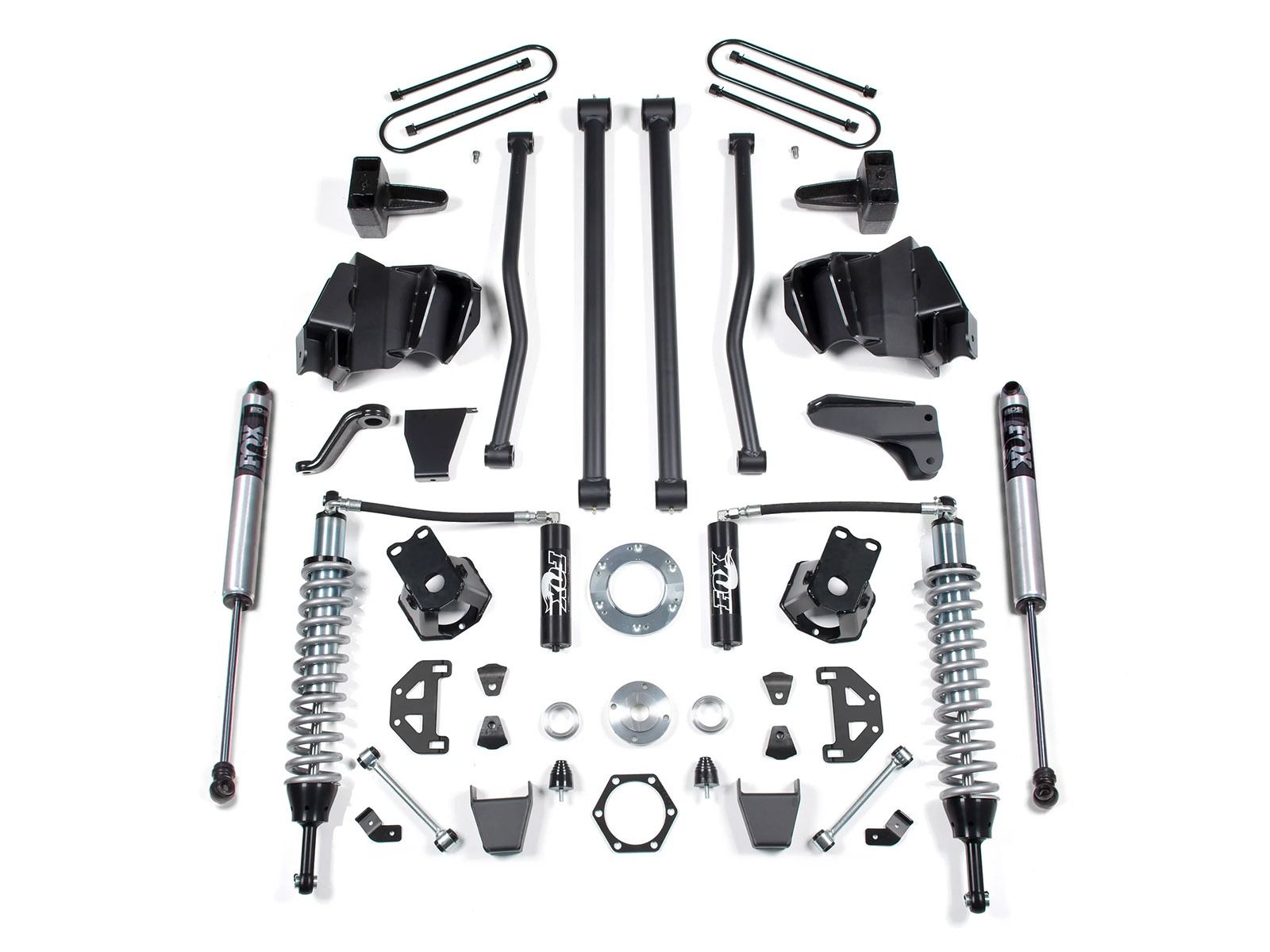

6" 2009-2012 Dodge Ram 3500 4WD Fox Coil-Over Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS629F
- +

6" 2009-2012 Dodge Ram 3500 4WD Fox Coil-Over Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS629F
From $4,191.72 Regular Price $4,277.27

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS629F 6 inch premium coilover suspension lift kit for the Dodge Ram 3500 will allow for fitment of up to 37 inch diameter tires for a great off-road look. BDS Performance Series Systems feature Fox 2.5 Reservoir Coilovers. These systems were designed specifically to combine the high-performance characteristics of the Fox 2.5 coilovers and BDS long arm suspension systems to create the ultimate 6" suspension system. The Fox coilovers are preset to achieve 6" of lift right out of the box and tuned for an amazing ride on and off road. In order to install the coilovers, BDS has developed a mounting system that bolts directly to the factory coil mounts with only minor trimming/drilling required. This new system not only creates a sturdy mount at the frame, it also includes weld in reinforcements at the axle - something other "bolt-on" mounting kits on the market do not address. The coilovers along with the mounting system can be purchased separately to retrofit any previously install BDS 6" long arm system.

The rear of the Dodge Ram can be lifted with your choice of an axle block kit or full replacement rear Glide Ride leaf springs.

Top Features

  • Fit up to 37 inch tires
  • Fox 2.0 Performance Shocks
  • Fox 2.5 Factory Series Reservoir Coilovers
  • Estimated Install Time: 8 hours
  • Difficulty Leve (easy 1-5 complicated): 3
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA

Wheel Combinations

  • 37" x 12.50" w/17 x 9 and 5" back spacing
  • Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Measure rear axle tube before ordering. Some 4" axle models with dual overloads will require 4068.
2. Rear lift options will not fit dually applications.
3. If driveline vibration occurs, order either transfer case drop or indexing kit available in optional accessories. NOTE: 122606 transfer case drop kit will only replace the OE bracket #52121938AA
4. 102009 Rear brake lines will not fit 2012-13 models.
5. Exhaust modification will be required for dual rear shock kit 122009.
6. Will not fit Cab and Chassis models
7. Fits models with 4 inch diameter rear axle only
Vehicle Fitment
ModelRam 3500
Year Fitment2012, 2011, 2010, 2009
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS629F
Item Numberbds_bds629f
Product LineLift Kits
Lift Height6 inch
