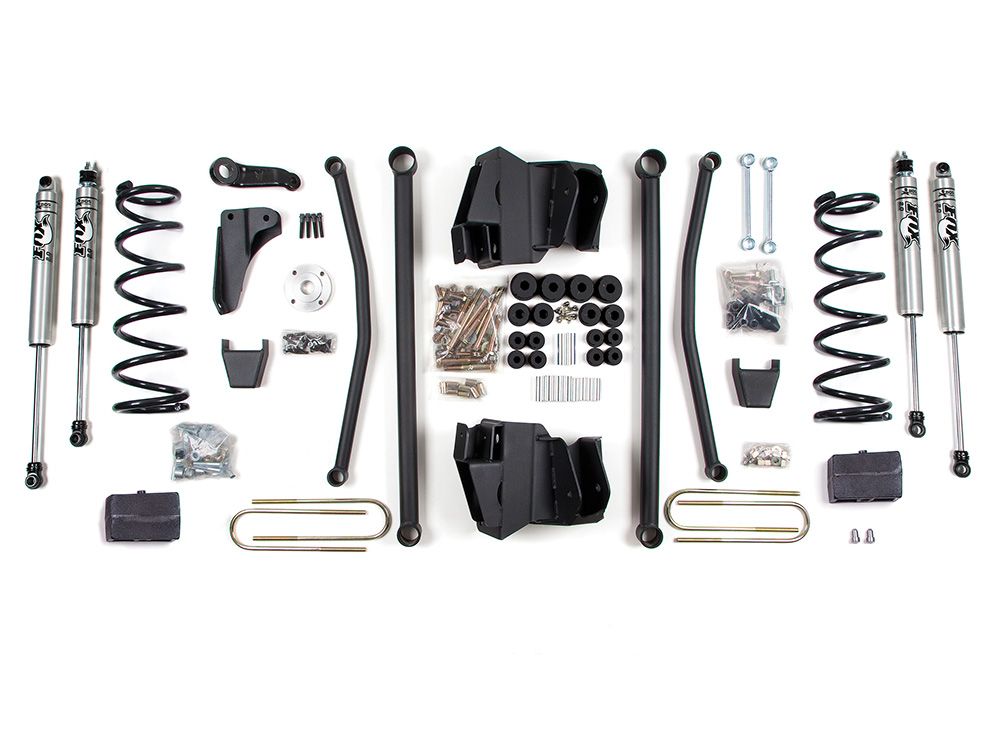

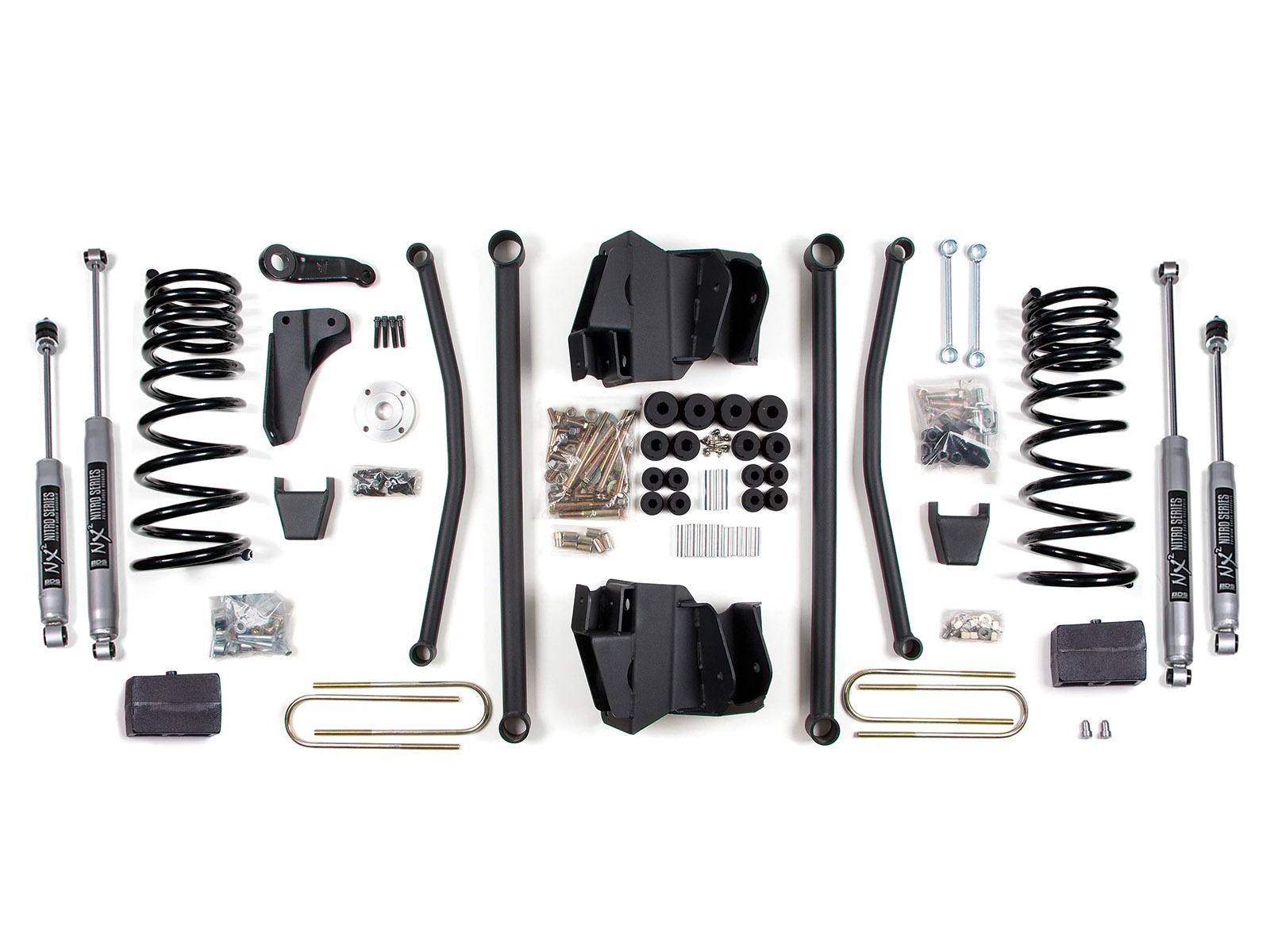

6" 2009-2012 Dodge Ram 3500 4WD Long Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: 629H
- +

6" 2009-2012 Dodge Ram 3500 4WD Long Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 629H
As low as $2,111.55

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS 629H 6 inch Long Arm lift kit to fit the Dodge Ram 3500 4wd in the year range 2009 thru 2012 models will greatly improve handling and steering. This kit features solid upper long arms and tubular lower long control arms. The long control arms reduce caster change through wheel travel creating a more controlled feeling in the steering wheel both on and off road. This 4-Link long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system. A dropped forged pitman arm is included to maintain the factory steering angles. A track bar relocation bracket is included to properly center the axle under the vehicle. Extended bump stops and sway bar links are included to maintain the OE characteristics. All four control arms are greaseable for long term performance. The extended length lower control arms reduce caster change through wheel travel.

Top Features

  • Long Arm control arms greatly improve handling and steering
  • Allows for use of 37 inch tires
  • Premium Quality Components
  • NX2 Nitro Shocks or Fox 2.0 Performance Rear Shocks
  • Pro-Ride Coil Springs
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8 Hours

Tire & Wheel Combinations

  • 37 inch x 12.50 inch w/17 x 9 and 5 inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes- Kit will also work on gas models. But will require coil springs (032601) and spacer (012201) in place of coil springs (032801).
- Measure rear axle tube before ordering. Some 4 inch axle models with dual overload springs will require 4068.
- If driveline vibration occurs, order either transfer case drop or indexing kit available in optional accessories.
- 122606 Transmission drop kit will only replace the OE bracket #52121938AA.
- Exhaust modification will be required for dual rear shock kit 122009.
- Additional front driveline modification may be required.
- 102009 Rear brake lines will not fit 2012 models.
- Rear lift options will not fit dually applications.
Vehicle Fitment
ModelRam 3500
Year Fitment2012, 2011, 2010, 2009
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number629H
Item Numberbds_629h
Product LineLift Kits
Lift Height6 inch
