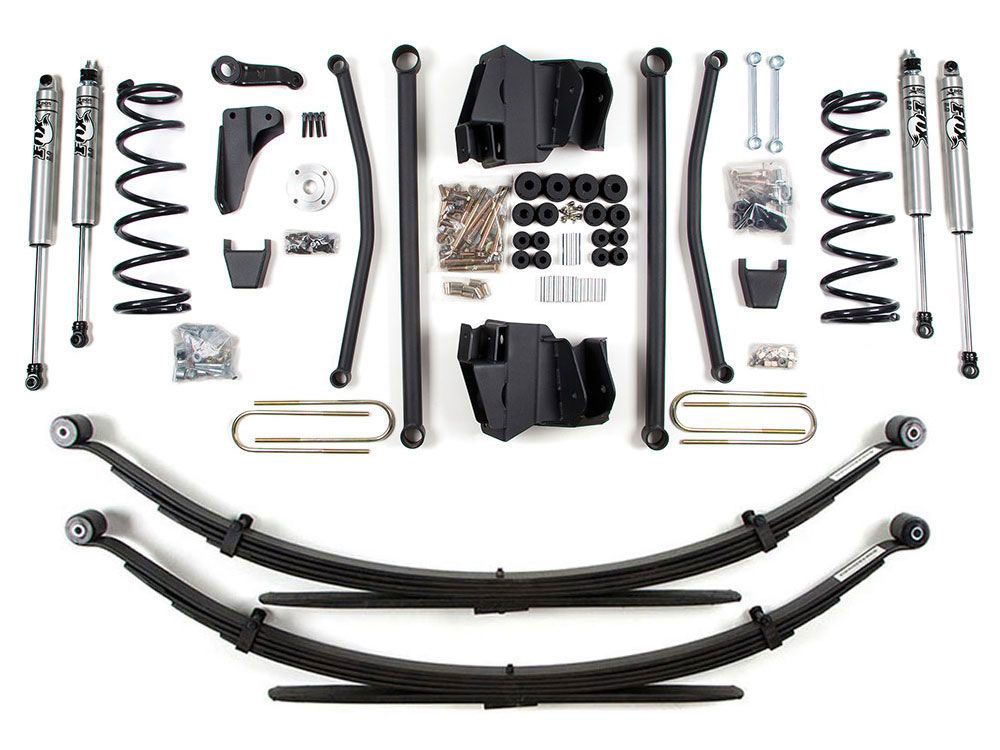

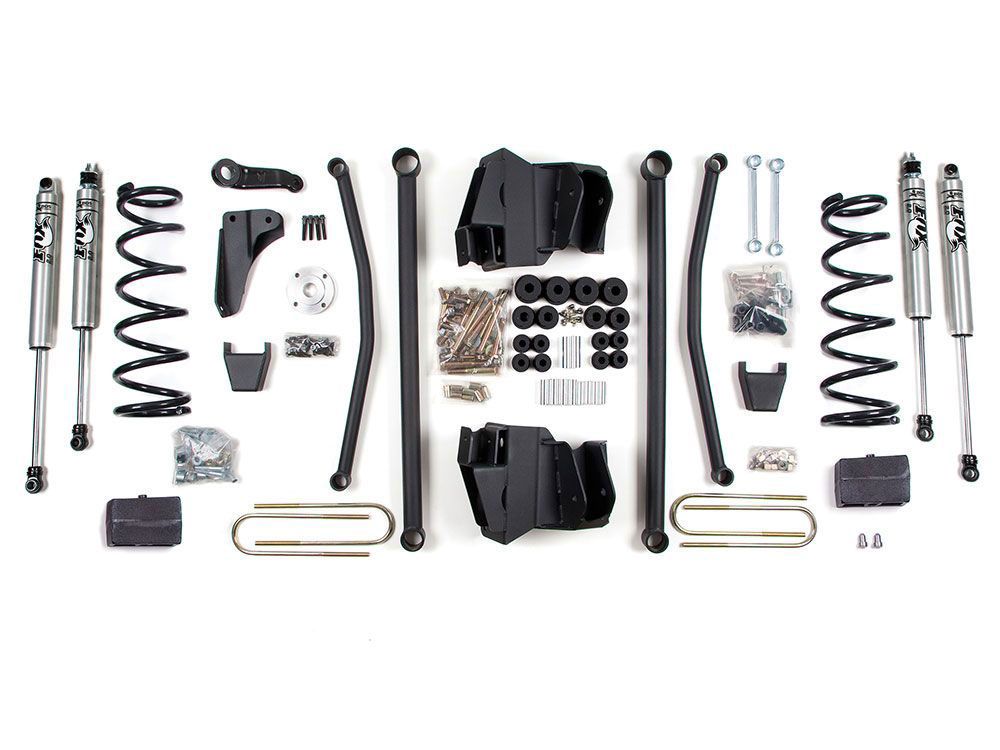

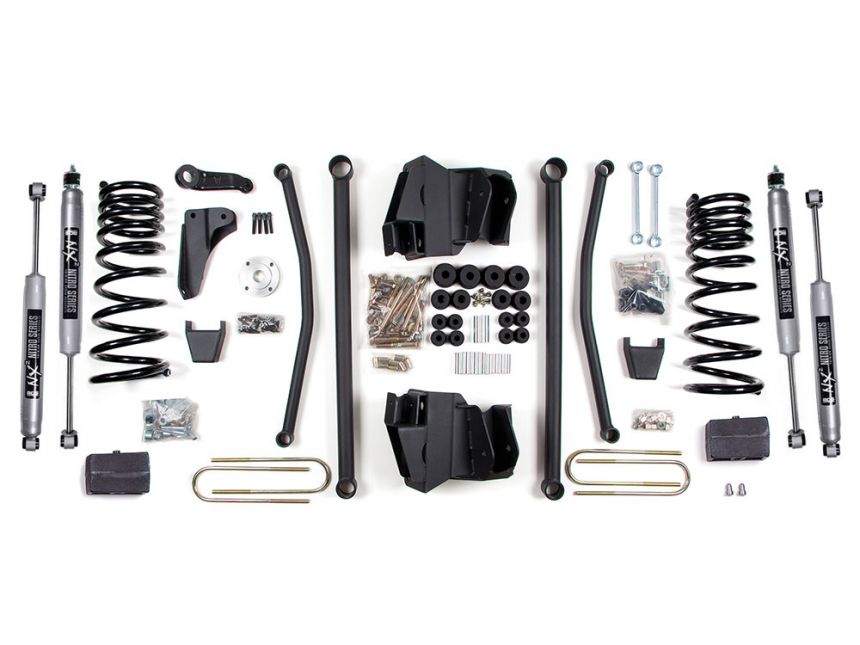

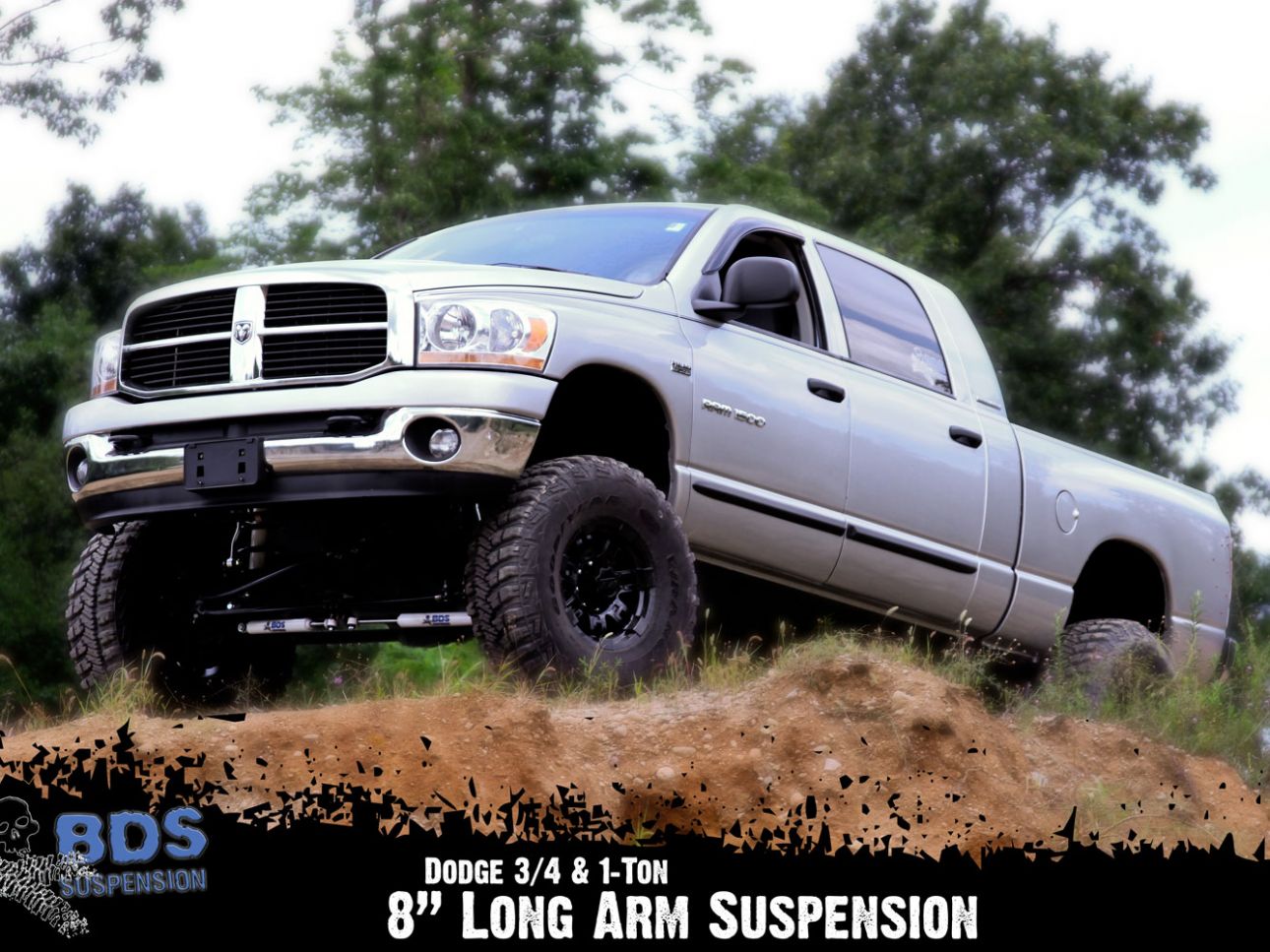

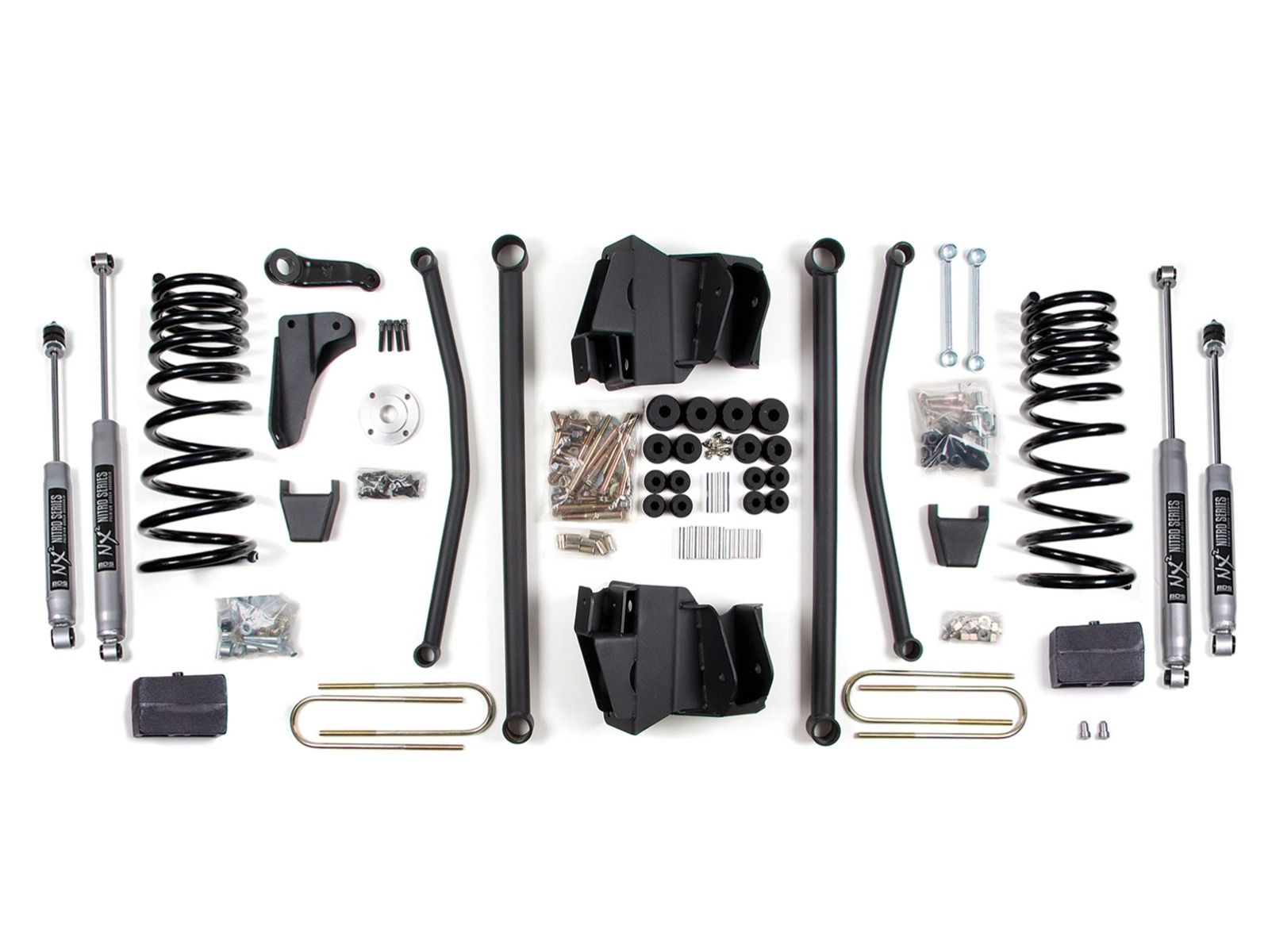

8" 2003-2007 Dodge Ram 2500/3500 4WD Long Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 653H
As low as $2,620.75

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

Choose an Option...
  • Choose an Option...
  • With BDS NX2 Shocks
  • With Fox 2.0 Performance Series Shocks
Choose an Option...
  • Choose an Option...
  • Rear Blocks
  • Rear Leaf Springs
Choose an Option...
  • Choose an Option...
  • Vehicle has 3.5 inch diameter rear axle
  • Vehicle has 4 inch diameter rear axle
Choose an Option...
  • Choose an Option...
  • Diesel Engine
  • Gas Engine
Choose an Option...
  • Choose an Option...
  • Vehicle has Automatic Transmission
  • Vehicle has Manual Transmission
- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

This BDS 653H 8 inch lift kit for the Dodge Ram 2500 features solid upper long arms and tubular lower long control arms for great performance and handling. The long control arm reduce caster change through wheel travel creating a more controlled feeling in the steering wheel both on and off road. All four control arms are greaseable for long term performance.

This 4-Link long arm lift kit retains the factory triangulation of the arms as well which adds to the stability of the suspension system. A dropped forged pitman arm is included to maintain the factory steering angles. A track bar relocation bracket is included to properly center the axle under the vehicle. Extended bump stops and sway bar links are included to maintain the OE characteristics.

The rear of the Dodge Ram is lifted via 5 inch block kit or Pro-Glide rear leaf springs.

Top Features

  • Long Arm Control Arms for better control and handling
  • 8 inch Pro-Ride Coil Springs for a great ride
  • Forged drop pitman arm
  • Front track bar bracket to keep axle centered
  • Extended bump stops
  • Rear lift blocks or Pro-Glide rear leaf springs
  • Made in the USA
  • Premium quality components

Tire and Wheel Combinations

  • 38 inch x 14.0 inch w/17 x 9 and 4.5 inch back spacing
  • Est. Installation: 8 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Installation Instructions

Important Notes- This system is designed for diesel applications, but will work on gas models with 6" coils and 2" coil spacers.
- Rear U-bolts will not fit dually applications.
- You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
- May require additional driveline modification.
- 2500 Gas models will require modification to the front exhaust crossover pipe on driver side for proper clearance when a transfer case indexing ring kit is installed.
Vehicle Fitment
MakeDodge
ModelRam 2500, Ram 3500
Year Fitment2007, 2006, 2005, 2004, 2003
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number653H
Item Numberbds_653h
Product LineSuspension Lift Kit
Lift Height8 inch
