6.5" 2014-2018 GMC Sierra 1500 4WD Lift Kit by BDS Suspension

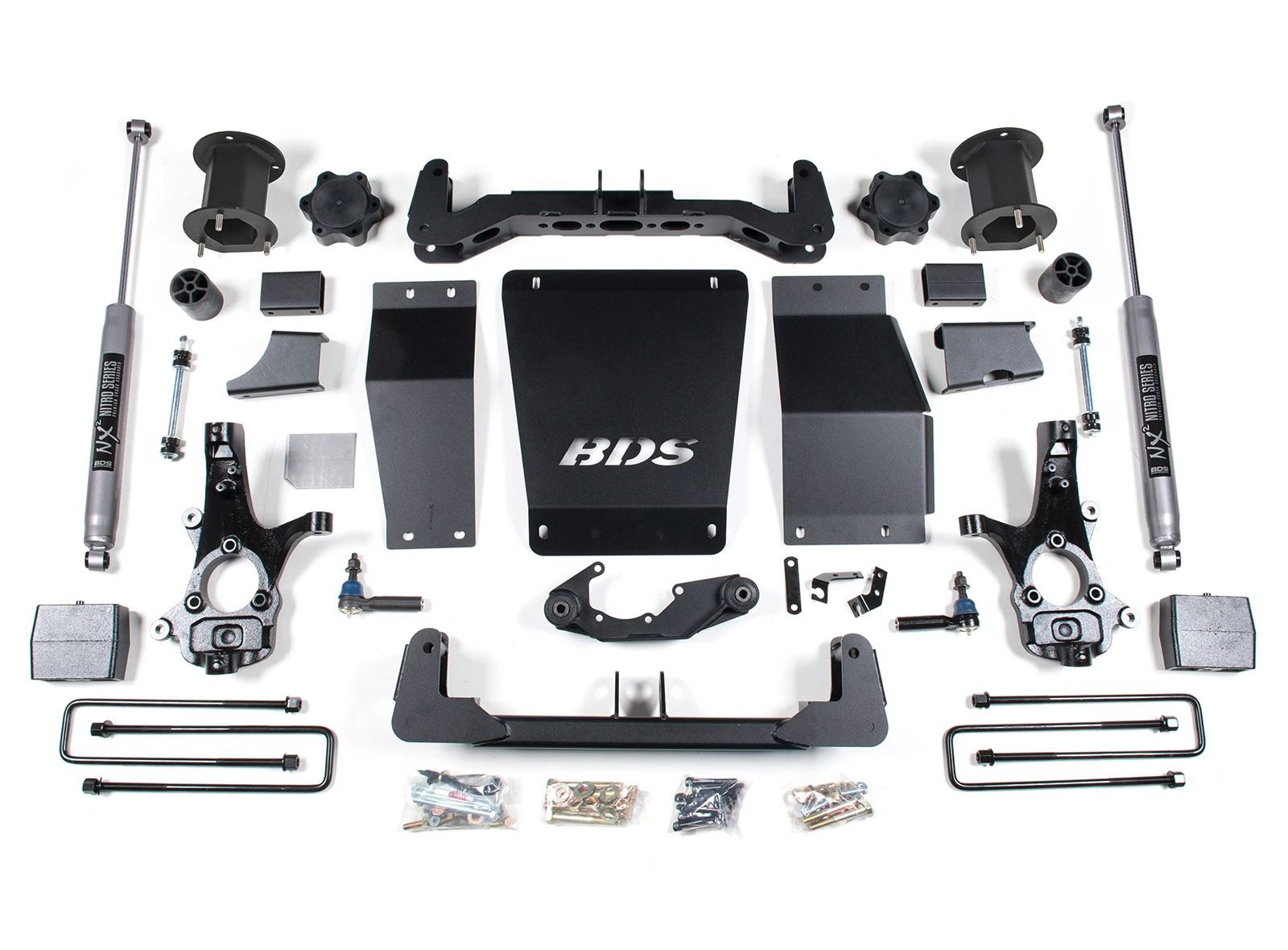

This BDS Suspension BDS708 / BDS708FS 6.5-inch lift kit for the GMC Sierra 1500 4WD provides additional fender clearance to accommodate larger-diameter tires (up to 35 inches) and delivers a fresh new look. This lift kit includes the ductile cast-iron replacement steering knuckles and high-clearance, full-width lower control arm crossmembers. These components maintain the factory geometry to deliver excellent performance on and off-road and are compatible with factory traction control systems. The front differential is relocated for proper angles at the CV axles, allowing for the use of the stock front driveshaft. A 3-piece differential drop system keeps the differential secure, and a 3-piece front skid plate system protects the underside during off-road excursions. BDS front strut spacers lift the front.

The rear of the truck is lifted using an axle block and u-bolt kit, or upgrade to Glide-Ride rear leaf springs for better traction control and performance.

Choose from NX2 Nitro Gas rear shocks or upgrade to Fox 2.0 Performance Shocks for great ride control and comfort.

Top Features

• Allows for the use of 35-inch tires
• Premium Quality Components
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Best Quality and Engineering in the Industry
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 8 Hours

Rear Shock Options

• BDS NX2 Nitro: Nitro-charged, twin-tube design, steel body with Silver powder coat finish
• Fox 2.0 Performance Series: 2-inch aluminum body, mono-tube gas design, 5/8 inch steel shaft, anodized finish

Tire and Wheel Combinations:

• 33 inch x 12.5 inch w/ 17 x 9 and 4.5 inch back spacing
• 34 inch x 12.5 inch w/ 18 x 9 and 5 inch back spacing
• 35 inch x 12.5 inch w/ 20 x 9 and 5.75 inch back spacing



Premium Quality, Lifetime Warranty, and Protection

BDS Suspension manufactures only premium-quality suspension products. Proudly made in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
